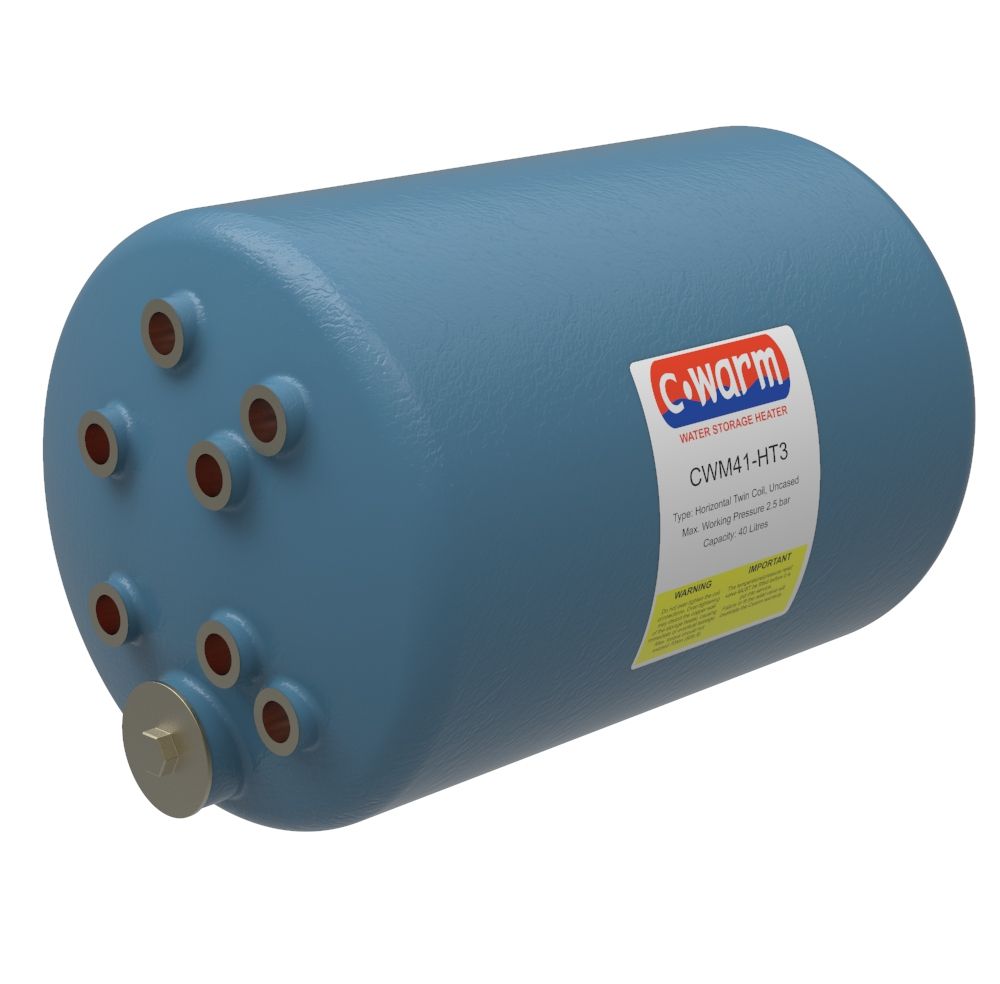

CWM41-HT3 C Warm horizontal 41 litre calorifier twin coil
Calorifier Installation Diagram
CWM41-HT3 C Warm horizontal 41 litre calorifier twin coil
Calorifier Installation Diagram

C-Warm Water Storage Heater 41 Litres

£512.40 Inc VAT

Made in the UK and fitted as standard by leading UK and European Boat Builders, designed for use at system pressures up to 3 bar.

Water Storage Heater Document Downloads

40 Litre Horizontal Calorifier Twin Coil

SKU: CWB41-HT3 Category: Tags: ,

Supplied with Twin Coil.
Heating time from cold is approximately 40 minutes for a full tank of hot water with a 3kw immersion heater. When connected to the engine, useful amounts of hot water are available within a few minutes due to the increased surface area of the internal coil.

Efficient, 100% ozone-friendly foam insulation keeps the water hot for hours.


Features:

  • Capacity: 41 litres (9 gallons)
  • Connections: Heating Coil ¾”, Cold in & Hot out ½”
  • Dimensions: 600 mm high, 380 mm diameter
  • Materials of Construction
    Tank: Copper
    Insulation: Polyurethane
  • Maximum Working Pressure: up to 3 bar (42 p.s.i.)
  • Maximum recommended pump cut-out pressure: 2.5 bar (36 psi)
  • Weight when empty: 14.5 kg
  • Stored water temperature up to the circulation temperature of the engine cooling water. Use thermostat to limit to 55º – 60º C if necessary
  • Packaged Dimensions: L: 77.00 x H: 47.00 x W: 48.00 cm
  • Warranty: 3 years
Weight 16.00 kg
