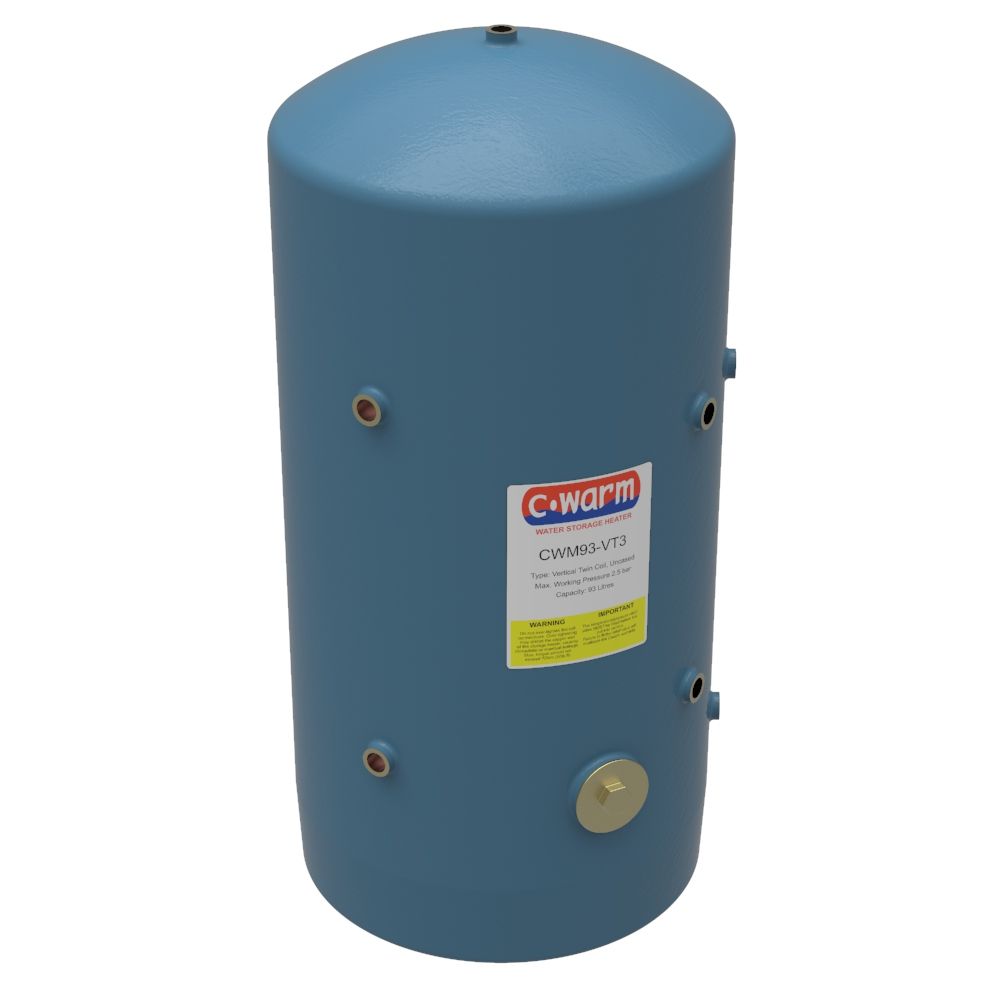

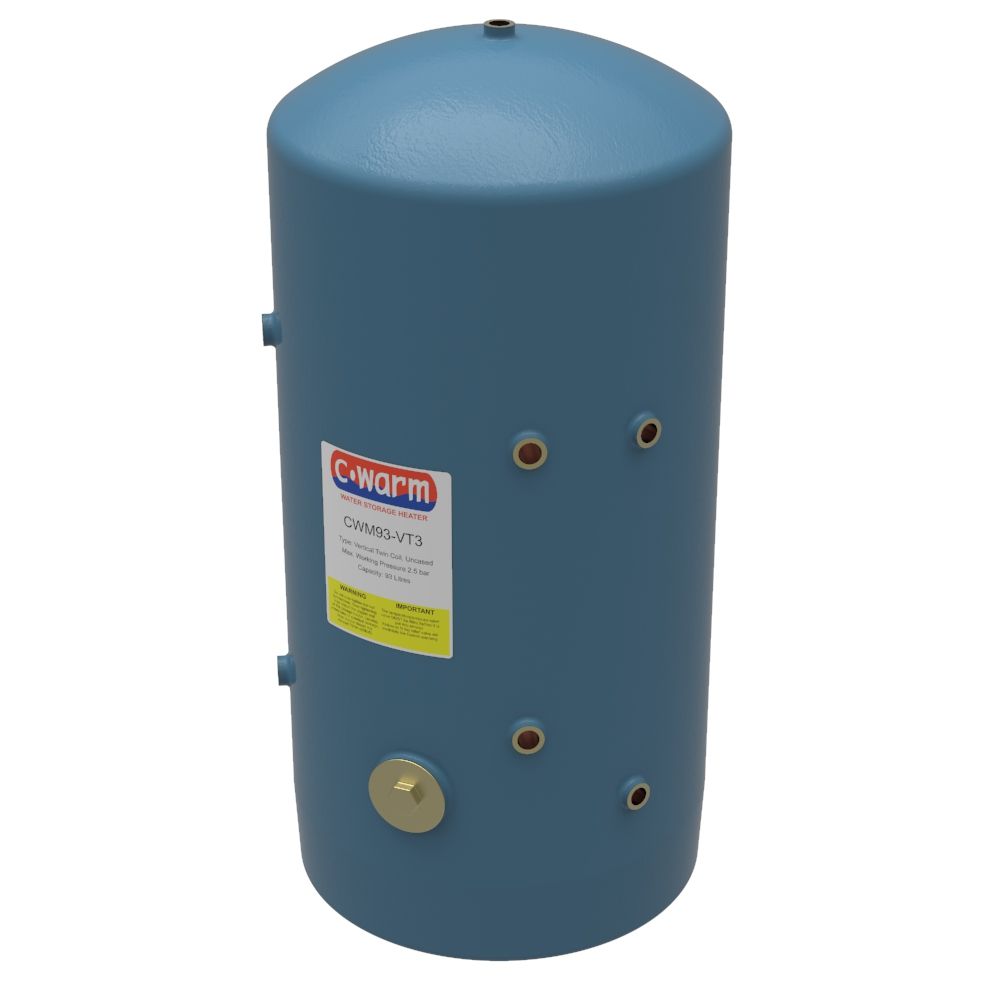

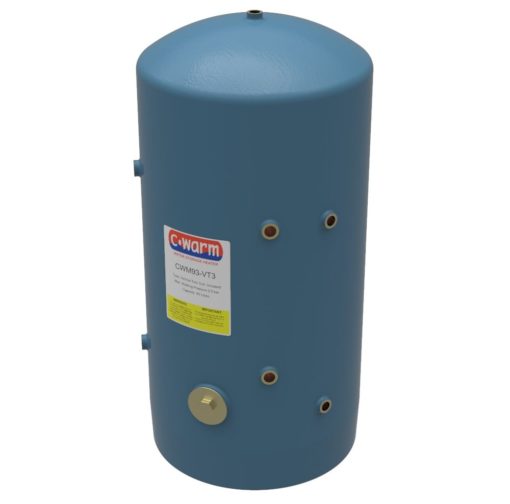

C-Warm Water Storage Heater 93 Litres

£751.20 Inc VAT

Made in the UK and fitted as standard by leading UK and European Boat Builders, designed for use at system pressures up to 3 bar.

Water Storage Heater Document Downloads

93 Litre Vertical Calorifier Twin Coil

SKU: CWB93-VT3 Category: Tags: ,

Supplied with Single Coil, Temperature Pressure Relief  Valve.
Heating time from cold is approximately 1 hour 40 minutes for a full tank of hot water with a 3kw immersion. When connected to the engine, useful amounts of hot water are available within a few minutes due to the increased surface area of the internal coil.

Efficient, 100% ozone-friendly foam insulation keeps the water hot for hours.


Features:

  • Capacity: 93 litres (20.5 gallons)
  • Connections: Heating Coil ¾”, Cold in & Hot out ¾”
  • Dimensions: 930 mm high, 440 mm diameter
  • Materials of Construction
    Tank: Copper
    Insulation: Polyurethane
  • Maximum Working Pressure: up to 3 bar (42 p.s.i.)
  • Maximum recommended pump cut-out pressure: 2.5 bar (36 psi)
  • Weight when empty: 28.0 kg
  • Stored water temperature up to the circulation temperature of the engine cooling water. Use thermostat to limit to 55º – 60º C if necessary
  • Packaged Dimensions: L: 48.00 x H: 99.00 x W: 49.00 cm
  • Warranty: 3 years
Weight 30.00 kg
