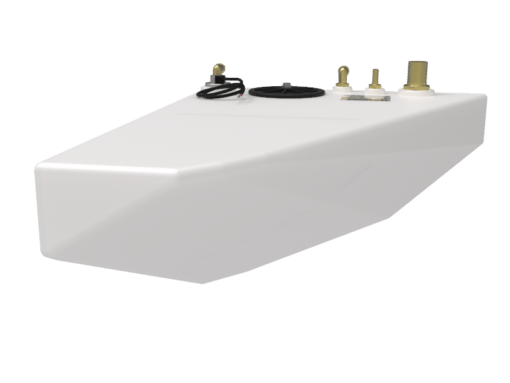

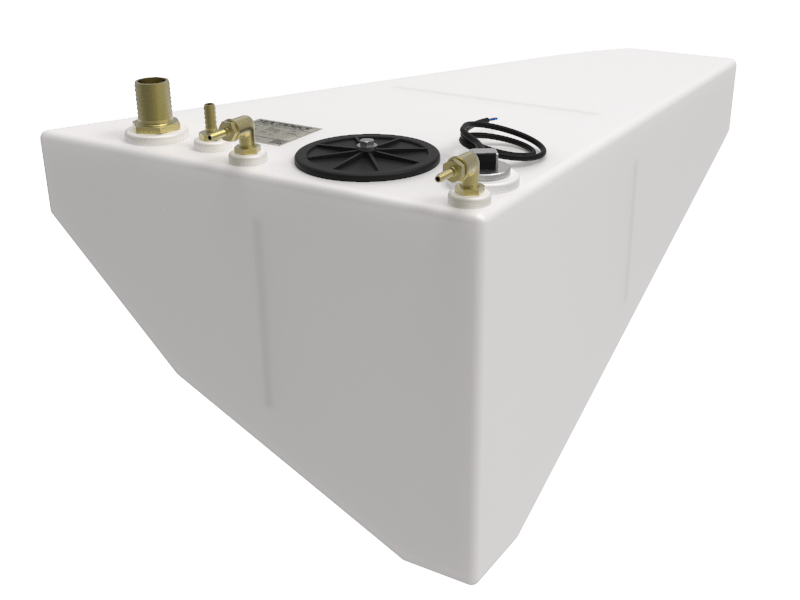

Cornish Crabber Yawl Diesel Tank

Replacement Diesel Tank for Cornish Crabber Yawl Sailing Yachts.

Manufactured from 10mm thick High-Density Polyethylene.

Overall dimensions (without fittings):

Length: 775mm
Width: 574mm
Height: 410mm

Fittings:

1 x 1 1/2″ BSP – 38mm Brass Straight Hosetail
1 x 1/2″ BSP – 13mm Brass Straight Hosetail
2 x 5/16″ BSP – 8mm Brass Elbow Hosetail
1 x Copper Dip Pipe
1 x FLB Wema Inspection Hatch
1 x S3 Series Fuel Level Indicator
1 x Analogue Fuel Gauge

Capacity: 50 litres

Position in Boat: Starboard of Stern Locker

Drawings are available at the cost of £75.00 VAT. This cost is totally refundable if an order is placed for this tank.

Please note the following:

– This tank is subject to a lead time for manufacture. Please get in touch for more information;
– This tank was made to a customer’s design for their boat. Therefore, please check that the dimensions are correct for your application;
– To comply with the ISO 21487: 2012 CE marking standard, plastic diesel fuel tanks must be separated from the engine compartment with a suitable bulkhead so as to isolate them from the engine.
