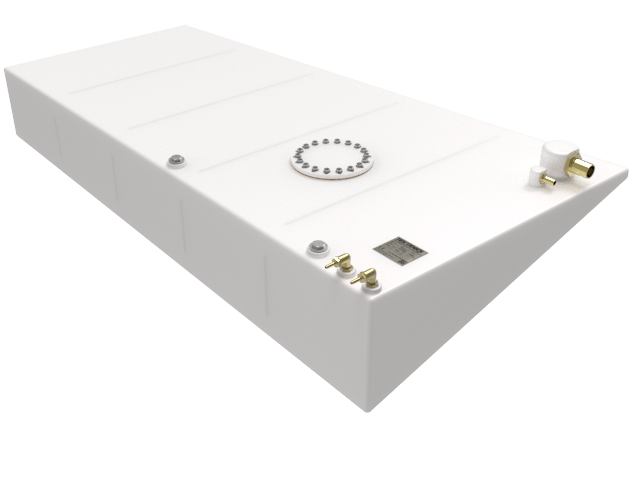

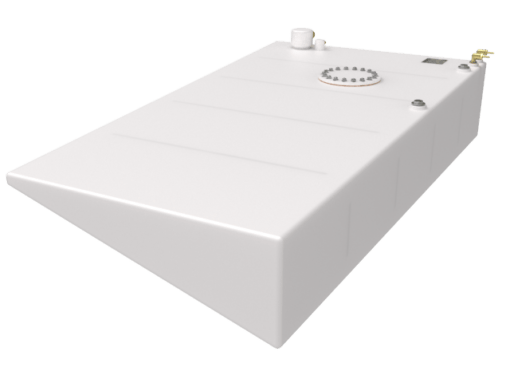

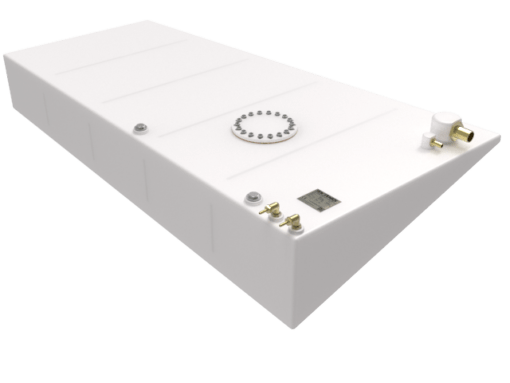

Freedom 39 Diesel Tank

Replacement Diesel Tank for Freedom 39 Sailing Yachts.

Manufactured from 10mm thick High-Density Polyethylene.

Overall dimensions (without fittings):

Length: 1720mm
Width: 895mm
Height: 300mm

Fittings:

1 x 16mm Fixed Elbow Brass Hosetail
1 x 38mm Fixed Elbow Brass Hosetail
2 x 5/16″ BSP – 8mm Elbow Brass Hosetail
1 x Brass Dip Pipe
1 x 1″ BSP Brass Plug
1 x ⌀ 210mm Diesel Tank Inspection Hatch

Capacity: 169 litres

Position in Boat: Port Salon

Drawings are available at the cost of £75.00 VAT. This cost is refundable if an order is placed for this tank.

Please note the following:

– This tank is subject to a lead time for manufacture. Please get in touch for more information;
– This tank was made to a customer’s design for their boat. Therefore, please check that the dimensions are correct for your application;
– To comply with the ISO 21487: 2012 CE marking standard, plastic diesel fuel tanks must be separated from the engine compartment with a suitable bulkhead to isolate them from the engine.
