- Connections: – for 15mm HEP2O pipe work
- Dimensions: – 405mm long, 322mm wide, 176mm high
- Fuse Size: – 10 (amp)
- Maximum Current: – 5 (amps)
- Output: – 16 litres/minute (3.5 gallons/minute) open flow
- Pressure Switch cuts in at 0.7 bar (10 psi) – cuts out at 1.7 bar (25 psi)
- Pre-assembled and tested for quick and simple installation in small/medium sized boats: serves up to 6 outlets
- 4 screws, 2 HEP2O water connections, 2 wires – and the installation is complete!
- Based on JABSCO 31620-series self-priming Par-Max 4 pump
- Includes 5 litre accumulator tank and inlet strainer
- All mounted on stainless steel base
- Actual Weight: 6.72 Kg (Approx. 7.72 Kg packed)

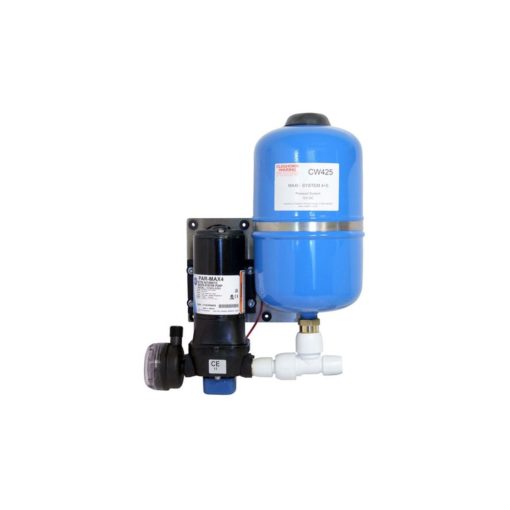

Maxi System 4 Pressure System 12 volt CW425
Pre-assembled and tested for quick and simple installation in small medium sized boats. Serves up to 6 outlets.
