Moody 28 Diesel Tank in Cockpit Locker

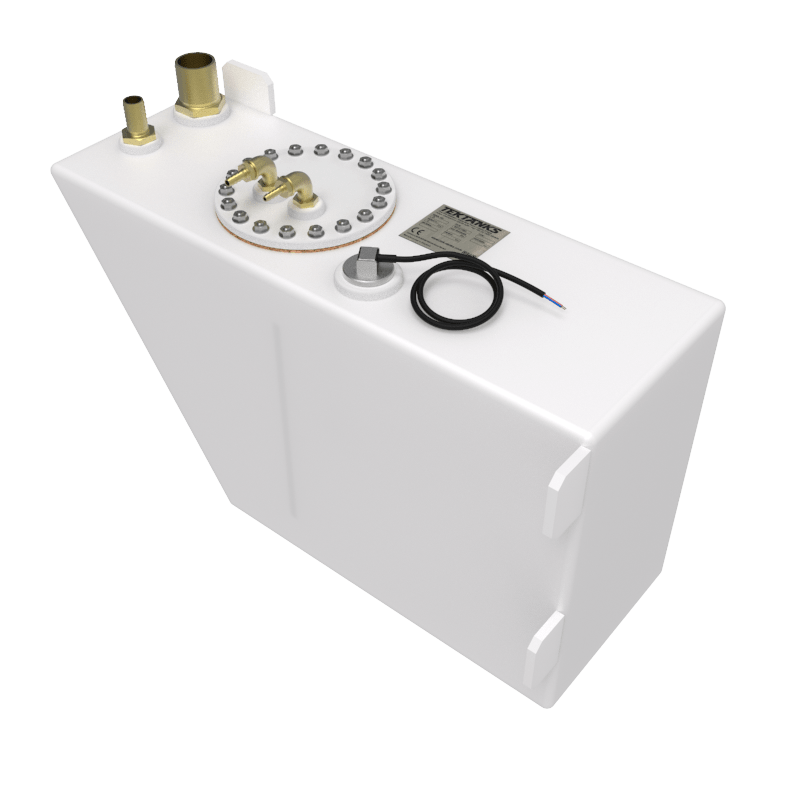

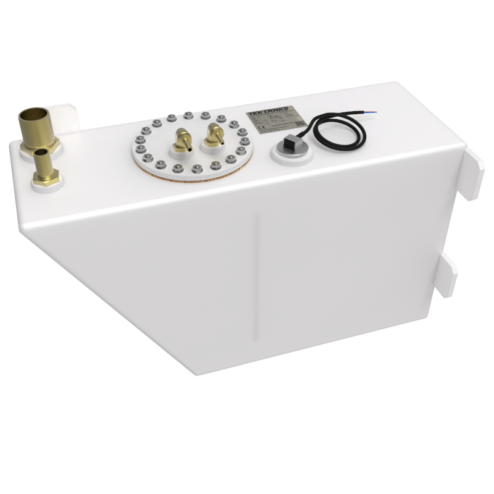

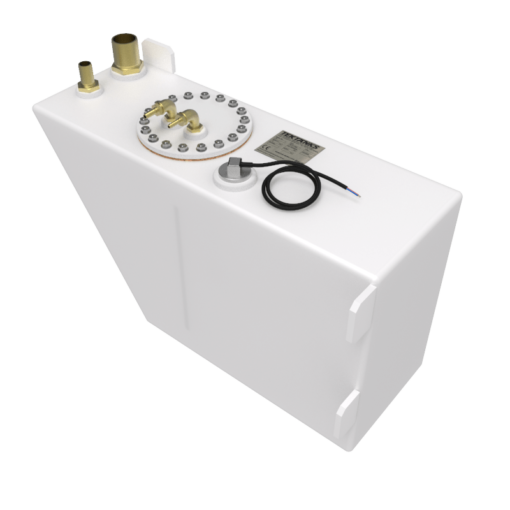

Moody 28 Diesel Tank

Material: 10mm Natural High-Density Polyethylene.

Overall dimensions (without fittings):

Length: 750mm
Width: 260mm
Height: 420mm

Fittings:

1 x 2″ BSP – 50mm Brass Straight Hosetail
1 x 1″ BSP – 25mm Brass Straight Hosetail
1 x 8/16″ BSP – 8mm Brass Elbow Hosetail
1 x 3/8″ BSP – 10mm Brass Elbow Hosetail
1 x Copper Dip Pipe
1 x Wema Fuel Level Indicator
1 x IPFR Wema Fuel Gauge
1 x 200mm Nuts and Bolts Hatch
3 x Undrilled flange

Capacity: 57 litres

Position in Boat: Port Cockpit Locker

Drawings are available at a cost of £75.00 VAT This cost is totally refundable if an order is placed for this tank.

Please note, that this tank is subject to a lead time for manufacture. Please get in touch for more information.

To comply with the ISO 21487: 2012 CE marking standard, plastic diesel fuel tanks must be separated from the engine compartment with a suitable bulkhead so as to isolate it from the engine.

Please note: This tank was made to a customer’s design for their individual boat. Please check dimensions are correct for your own application.
