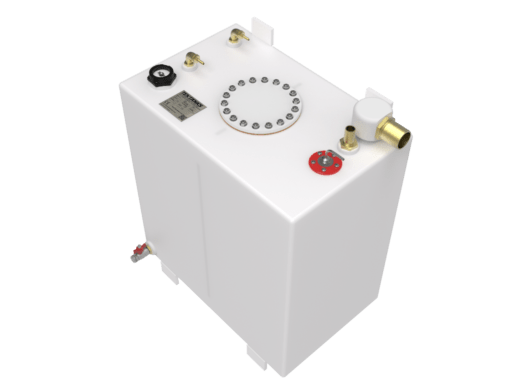

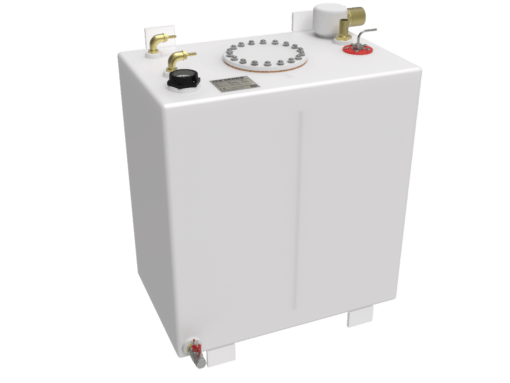

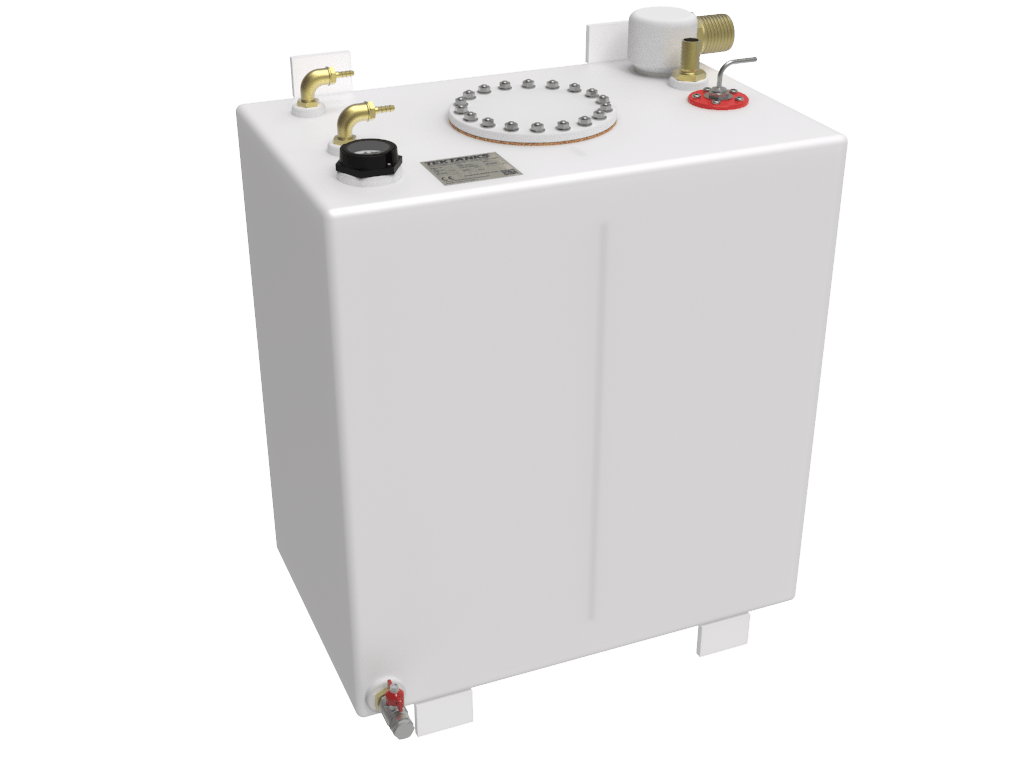

Moody 34 Diesel Tank

Moody 34 Diesel Tank

Material: 10mm Natural High-Density Polyethylene.

Overall dimensions (without fittings):

Length: 630mm
Width: 402mm
Height: 665mm

Fittings:

1 x 2″ BSP – 50mm Fixed Elbow with Brass Hosetail
1 x 1″ BSP – 25mm Brass Straight Hosetail
2 x 8/16″ BSP – 8mm Brass Elbow Hosetail
2 x Copper Dip Pipe
1 x Heater Supply Pipe with a plate
1 x 1/2″ Valved Plug on Drain
1 x 200mm Nuts and Bolts Hatch
4 x Undrilled flange
1 x Mechanical Gauge

Capacity: 148 litres

Position in Boat: Port Cockpit Locker

Drawings are available at a cost of £75.00 VAT This cost is totally refundable if an order is placed for this tank.

Please note, that this tank is subject to a lead time for manufacture. Please get in touch for more information.

To comply with the ISO 21487: 2012 CE marking standard, plastic diesel fuel tanks must be separated from the engine compartment with a suitable bulkhead so as to isolate it from the engine.

Please note: This tank was made to a customer’s design for their individual boat. Please check dimensions are correct for your own application.
