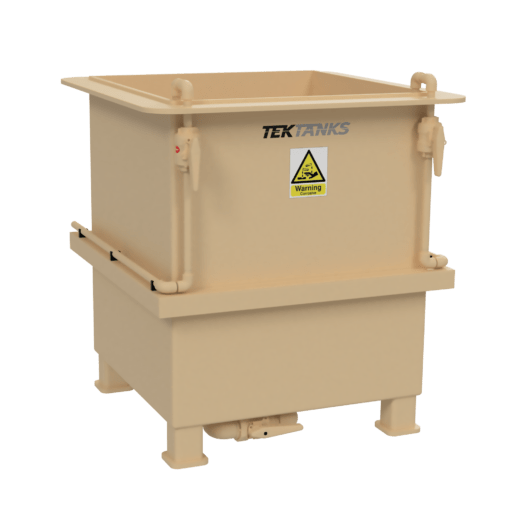

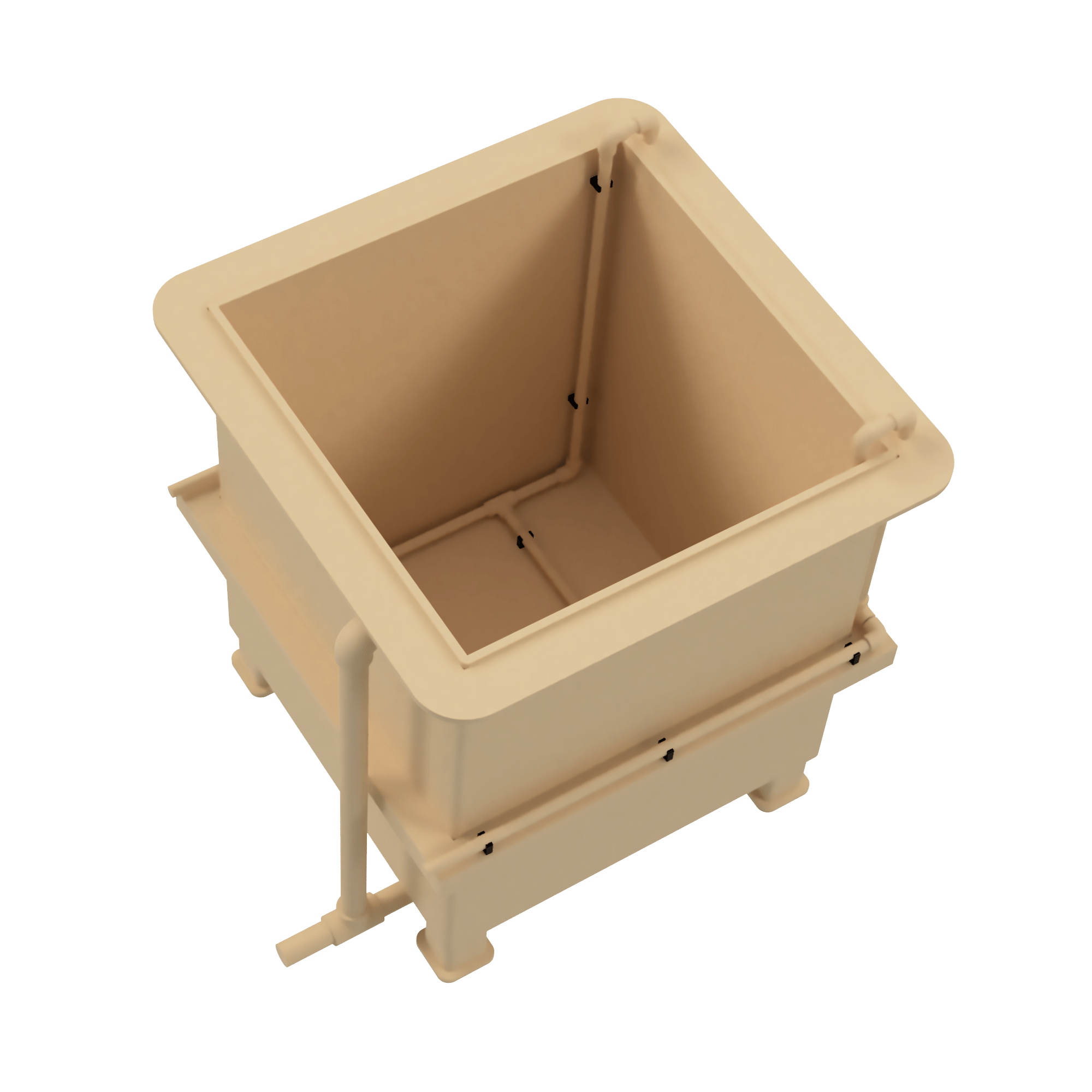

Plating Tank 700 x 700 x 800 (LWH)

Price range: £1,920.00 through £2,893.20 Inc VAT

A 343 litre plating tank made from 12mm thick Polypropylene.

Options for draining, filling, overflow and aeration. Please select from drop down menu.

Please call us for any bespoke design.

Made in Britain Logo

Documentation

700 x 700 x 800 Plating Tank Drawing

Select Option

Clear

I agree that this item is not refundable.

SKU: PLATE70-70-80 Category: Plating Tanks Tag: Plating Tanks

Description
Additional information

Volume [litres] : 343 (700 Deep)
Dimensions [mm]: Length: 700; Width: 700; Height: 800 (All internal)

Materials: Polypropylene Copolymer
Wall thickness [mm]: 12
Colour: Beige
Lead time: 6 weeks (Manufactured to order)
Warranty: 1 year

This polypropylene tank is suitable for use with the following plating processes:

Black Nickel
Brass
Nickel
Bright Nickel
Bronze
Copper
Replica Chrome
Silver
Zinc
Zinc-Nickel Alloy
Aluminium Anodising

For more information and a supplier for the required equipment please visit the following website:

Gateros Plating

3D Interactive Model

Hold down left mouse button to rotate model
Turn mouse wheel to zoom in and out
Double click left button to focus on a particular area
Hold down mouse wheel to pan

Select Option	Tank Only, Tank + 40mm Drain, Tank + Drain + Overflow + Fill, Tank + Drain + Overflow + Fill + Aeration
