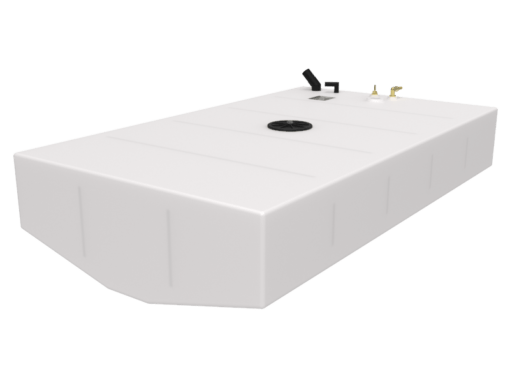

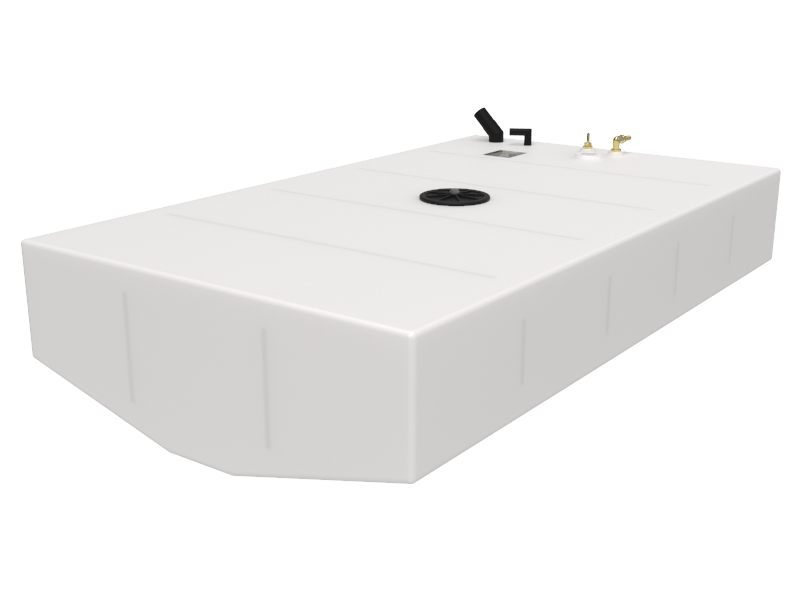

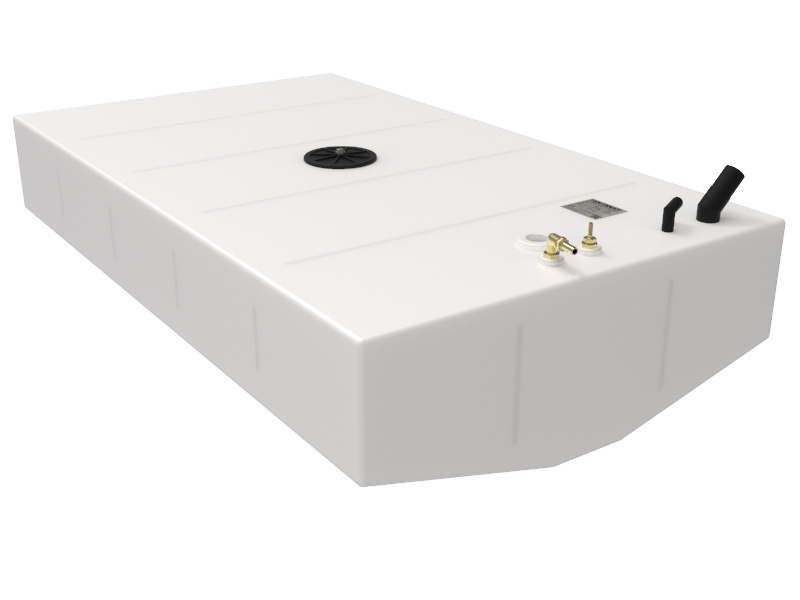

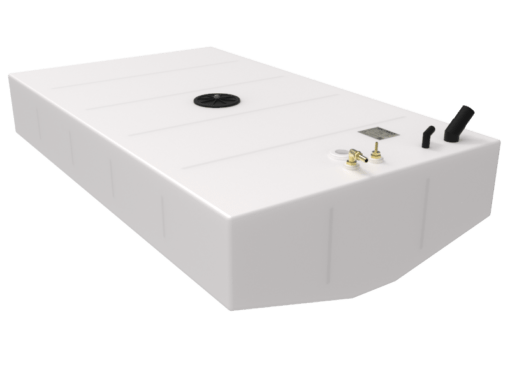

Rinker 270 Diesel Tank

Replacement Plastic Diesel for Rinker 270 Motor Boats.

Manufactured from 10mm thick High-Density Polyethylene.

Overall dimensions (without fittings):

Length: 1527mm
Width: 885mm
Height: 325mm

Fittings:

1 x 1 1/4″ BSP – 32mm Female Socket
1 x 20mm Fabricated Elbow Hosetail
1 x 1 1/2″ 45 degrees Fabricated Elbow
1 x 3/8″ BSP- 10mm Straight Brass Hosetail
1 x Copper Dip Pipe
1 x FLB Inspection Hatch

Capacity: 339 litres

Position in Boat: Unknown

Drawings are available at the cost of £75.00 VAT. This cost is refundable if an order is placed for this tank.

Please note the following:

– This tank is subject to a lead time for manufacture. Please get in touch for more information;
– This tank was made to a customer’s design for their boat. Therefore, please check dimensions are correct for your application;
– To comply with the ISO 21487: 2012 CE marking standard, plastic diesel fuel tanks must be separated from the engine compartment with a suitable bulkhead so as to isolate them from the engine.
