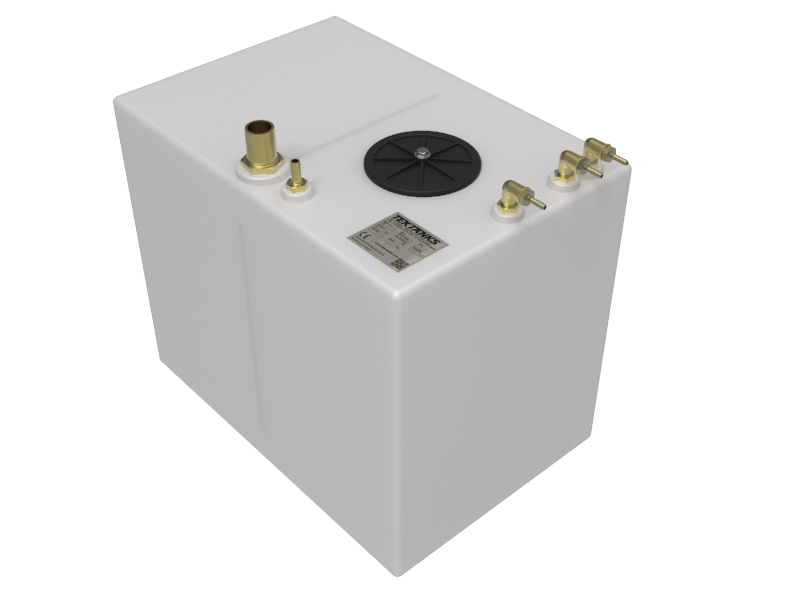

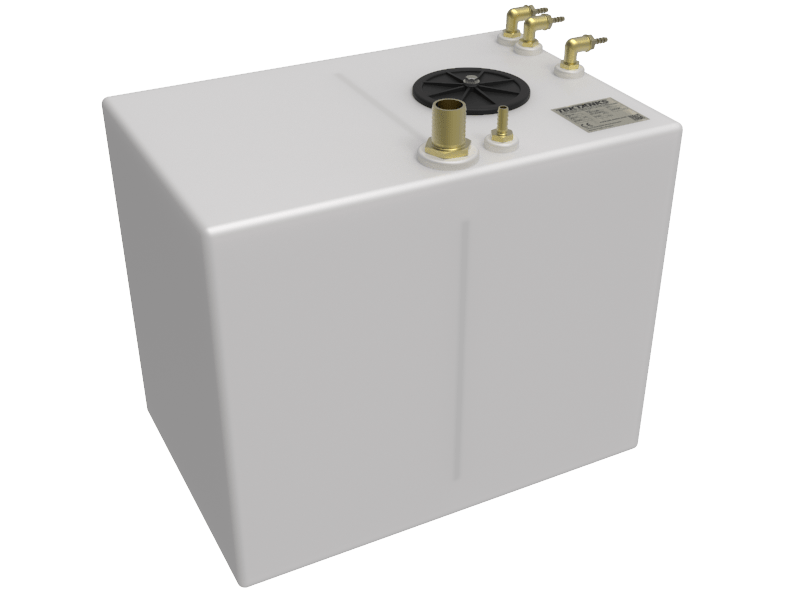

Voyager 35 Diesel Tank

Replacement Diesel Tank for Voyager 35 Sailing Boats under Companion Way Steps.

Manufactured from 10mm thick High-Density Polyethylene.

Overall dimensions (without fittings):

Length: 605mm
Width: 410mm
Height: 500mm

Fittings:

1 x 1 1/2″ BSP – 38mm Straight Brass Hosetail
1 x 1/2″ BSP – 13mm Straight Brass Hosetail
3 x 5/16″ BSP – 8mm Elbow Brass Hosetail
2 x Copper Dip Pipe
1 x FLB Inspection Hatch

Capacity: 107 litres

Position in Boat: Unknown

Drawings are available at the cost of £75.00 VAT. This cost is refundable if an order is placed for this tank.

Please note the following:

– This tank is subject to a lead time for manufacture. Please get in touch for more information;
– This tank was made to a customer’s design for their boat. Therefore, please check dimensions are correct for your application;
– To comply with the ISO 21487: 2012 CE marking standard, plastic diesel fuel tanks must be separated from the engine compartment with a suitable bulkhead so as to isolate them from the engine.
