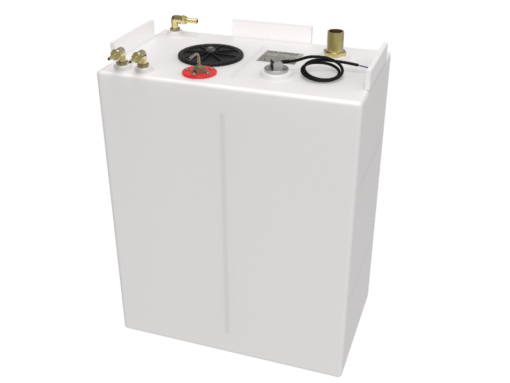

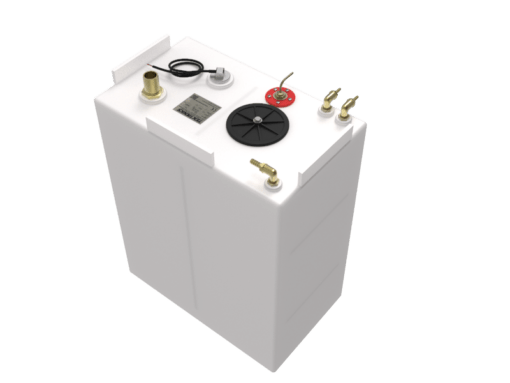

Westerly Conway Diesel Tank

Replacement Diesel Tank for Westerly Conway Sailing Yachts.

Manufactured from 10mm thick High-Density Polyethylene.

Overall dimensions (without fittings):

Length: 585mm
Width: 350mm
Height: 710mm

Fittings:

1 x 1 1/2″ BSP – 38mm Brass Straight Hosetail
1 x 1/2″ BSP – 13mm Brass Elbow Hosetail
2 x 5/16″ BSP – 8mm Brass Elbow Hosetail
2 x Copper Dip Pipe
1 x Mikuni Heater Pipe
2 x Fixing Flange (supplied undrilled)
1 x FLB Wema Inspection Hatch
1 x S3 Series Fuel Level Indicator
1 x Analogue Fuel Gauge

Capacity: 125 litres

Position in Boat: Unknown

Drawings are available at the cost of £75.00 VAT. This cost is totally refundable if an order is placed for this tank.

Please note the following:

– This tank is subject to a lead time for manufacture. Please get in touch for more information;
– This tank was made to a customer’s design for their boat. Therefore, please check that the dimensions are correct for your application;
– To comply with the ISO 21487: 2012 CE marking standard, plastic diesel fuel tanks must be separated from the engine compartment with a suitable bulkhead so as to isolate them from the engine.
