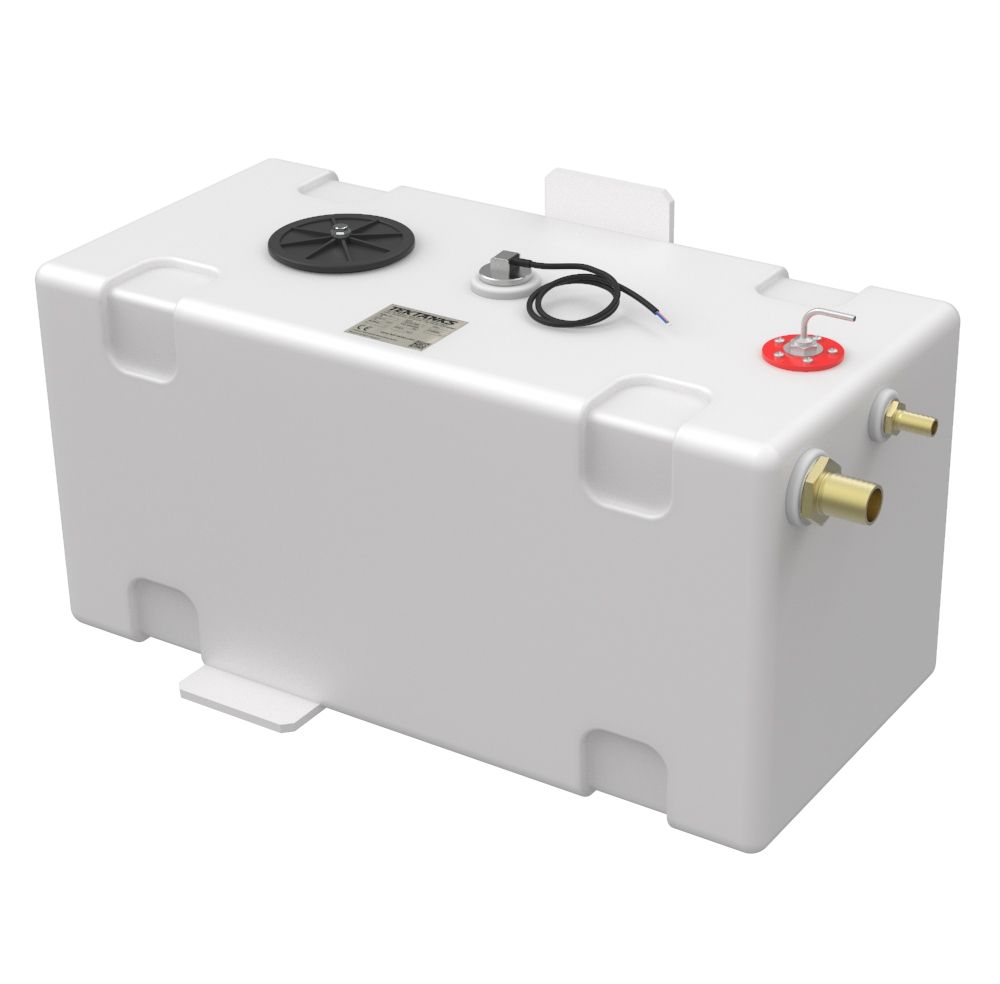

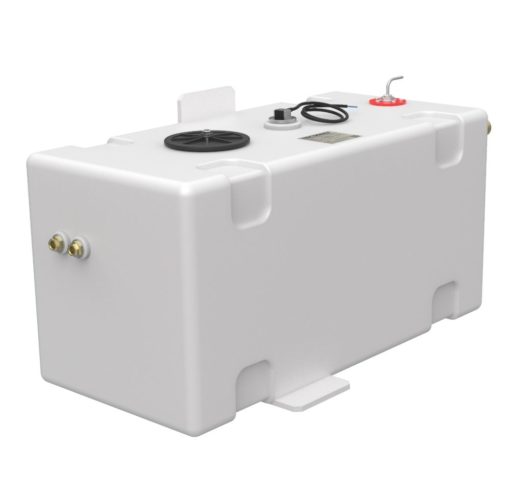

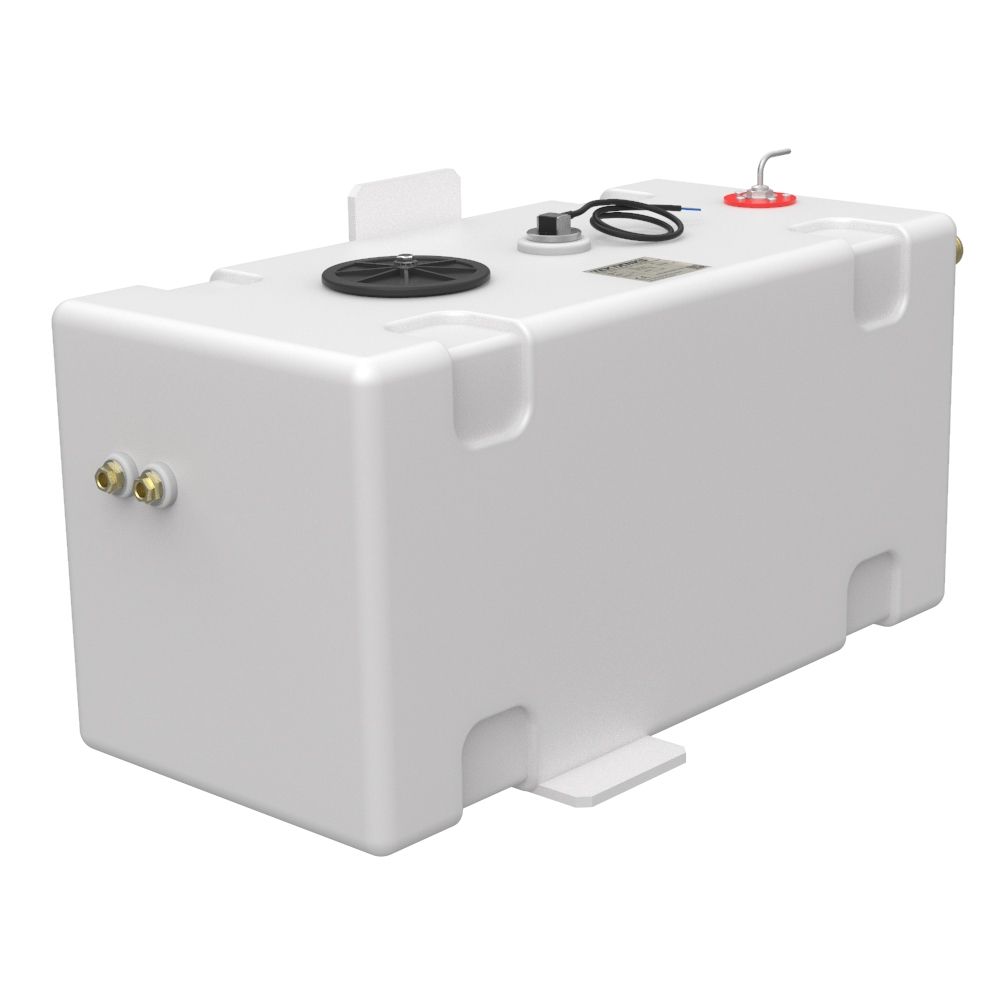

Westerly Typhoon Diesel Tank

Westerly Typhoon Diesel Tank Rotationally Moulded from 10mm Thick Medium Density Polyethylene.

Overall dimensions without fittings:

Length: 850mm
Width: 400mm
Height: 420mm

Fittings:

1 x 1 1/2″ BSP – 38mm Brass Straight Hosetail
1 x 3/4″ BSP – 19mm Brass Straight Hosetail
1 x Heater Feed
2 x 1/2″ BSP – 3/8″ BSP Brass Reducing Bush
2 x Copper Dip Pipe
2 x Fixing Flange Undrilled
1 x Wema Inspection Hatch (FLB)
S3-40 Wema Fuel Level Indicator

Capacity: 125 Litres

Position in boat: Unknown

Follow the link here to find the blank version of this tank.

Drawings are available at a cost of £75.00 + VAT This cost is totally refundable if an order is placed for this tank. Please call for more information.

Please note, that this tank is subject to a lead time for manufacture. Please get in touch for more information.

To comply with the ISO 21487: 2012 CE marking standard, plastic diesel fuel tanks must be separated from the engine compartment with a suitable bulkhead so as to isolate it from the engine.

Please note: This tank was made to a customer’s design for their individual boat. Please check dimensions are correct for your own application.
