£73.32

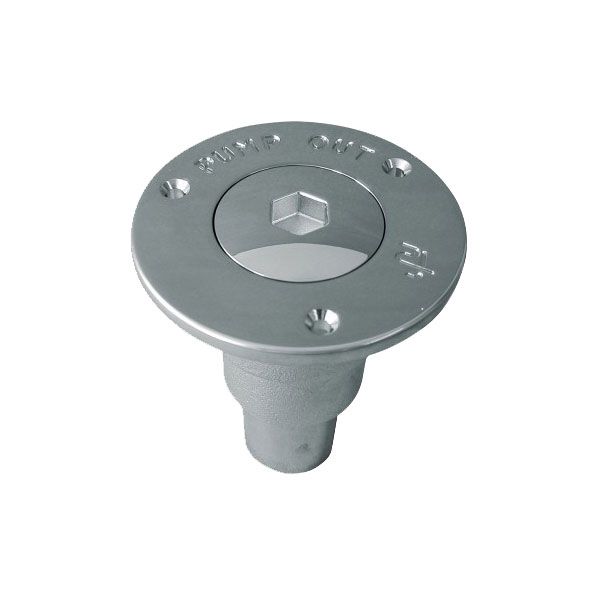

All chromed cast brass deck pump out fitting which accepts 1 1/2″ hose.
For use with both probe and screw pump out station connectors.

Description

All chromed cast brass deck pump out fitting which accepts an 1 1/2″ hose connection from the tank. For use with both probe and screw type pump out station  connectors.

This pump out deck fitting is probably the best we have seen in many years. This is a Rolls Royce product at a Mini price!

Inner ‘O’ ring ensures good probe seal. Conforms to BS7162/ISO04567.

Supplied with plastic key.

The words “PUMP OUT” and the International symbol are both  stamped into the top of the flange rather than a separate legend plate.

International Pump Out Symbol

2-76801-D Drawing

Dimensions:
H = 120mm
H1 = 6mm
H2 = 31mm
H3 = 44mm
D = 100mm
D1 = 51mm
D2 = 60mm
d  = 30mm
P = 38mm
G = 1 1/2″ BSP

More Information

Additional information

Weight1 kg
