Simarine STR1 & STR2 Radar Tank Level Sensors

Non-intrusive tank measurement – accurate, reliable, and easy to install.

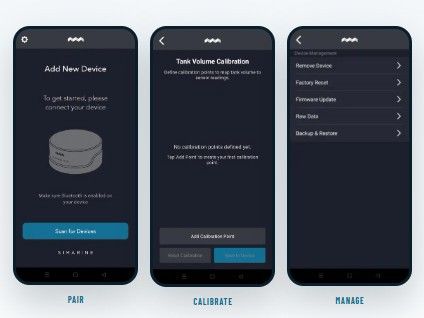

With a supported tank height of 150–2000 mm, the sender can be installed on a wide range of tanks. Automatic tank-height detection makes setup straightforward, while the Simarine Connect app allows the sender to be configured and calibrated wirelessly via Bluetooth.

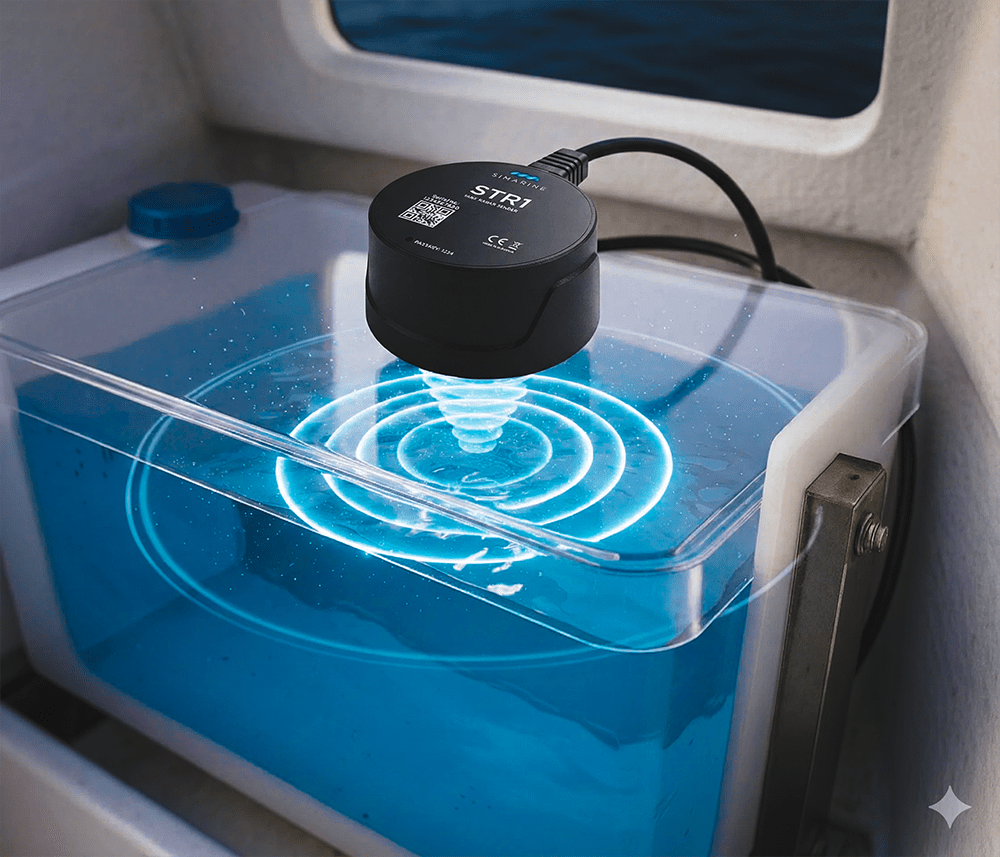

Because the sensor never comes into contact with the liquid, there are no moving parts, that could potentially get stuck and fail.

Which STR Sender Do I Need?

Both sender versions use the same radar measurement technology. The main difference is how the tank level information is delivered.

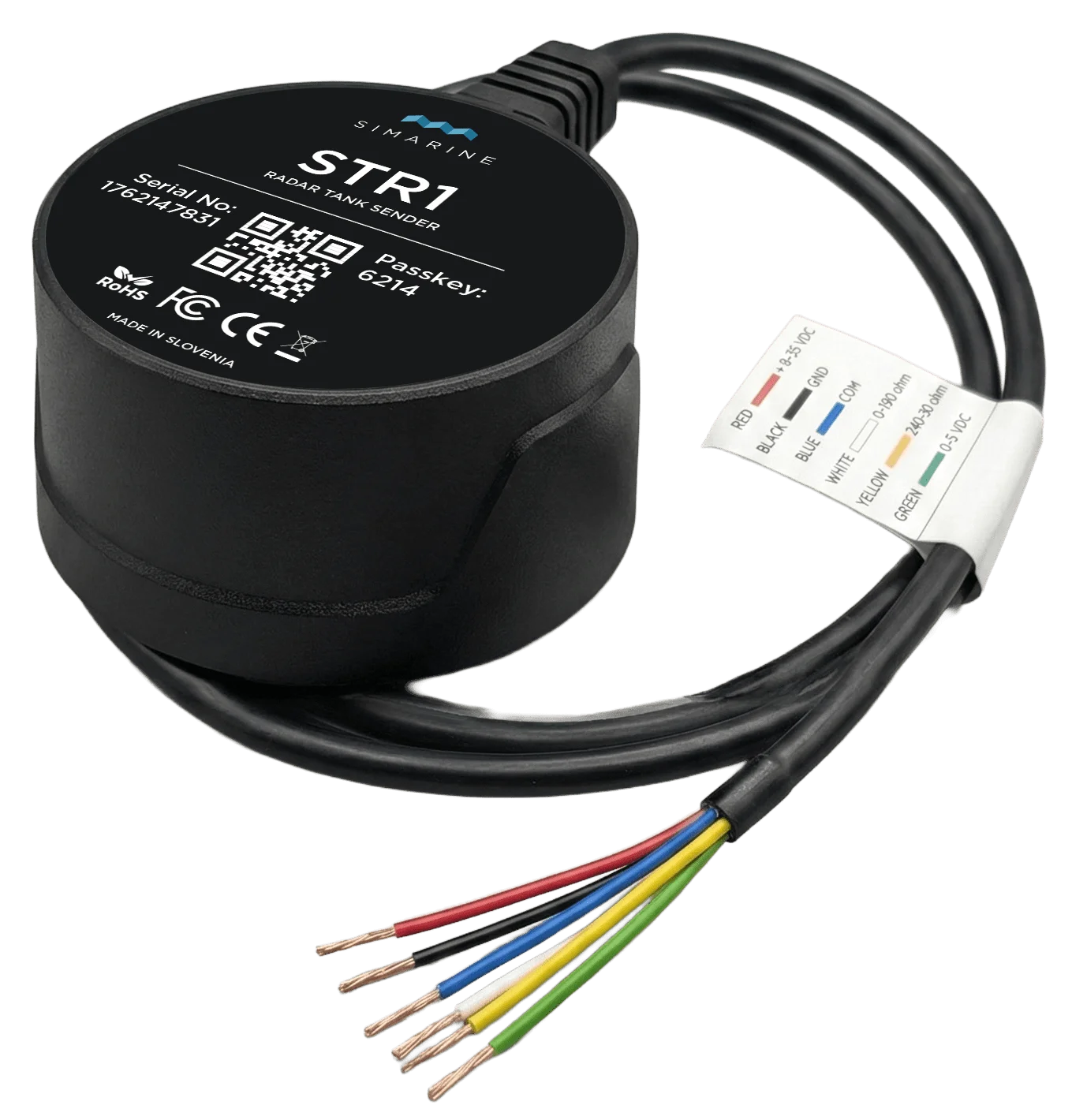

STR1 – Analogue

The STR1 is designed to work with existing analogue gauges and monitoring systems. It provides multiple analogue outputs, including 0–190 Ω, 240–30 Ω and 0–5 V, as well as Bluetooth connectivity for setup and configuration through the Simarine Connect app.

STR1 Analogue Output

The STR1 is designed as a straightforward replacement or upgrade for conventional analogue tank senders. It supports common analogue resistance and voltage outputs, making it suitable for integration with existing gauges and monitoring equipment:

0–190 Ω – 240–30 Ω / 0–5 V

Bluetooth configuration via the Simarine Connect app

This makes the STR1 an excellent choice where you want to improve tank level measurement without replacing the existing display or monitoring system.

Features

Non-contact radar tank level measurement
Measures through plastic tank lids
Suitable for water, diesel, petrol, grey water and waste
No moving parts
No internal probe or float arm
No contact with the tank contents
Automatic tank-height detection
Bluetooth setup and configuration
Simarine Connect app compatibility
Tank heights from 150–2000 mm
Low-profile design for installations where space is limited
IP67-rated housing
Operating supply of 8–35 V DC
Operating temperature from -20°C to +70°C
±2% accuracy
1 Hz measurement rate
Designed and manufactured in Slovenia, EU
3-year warranty

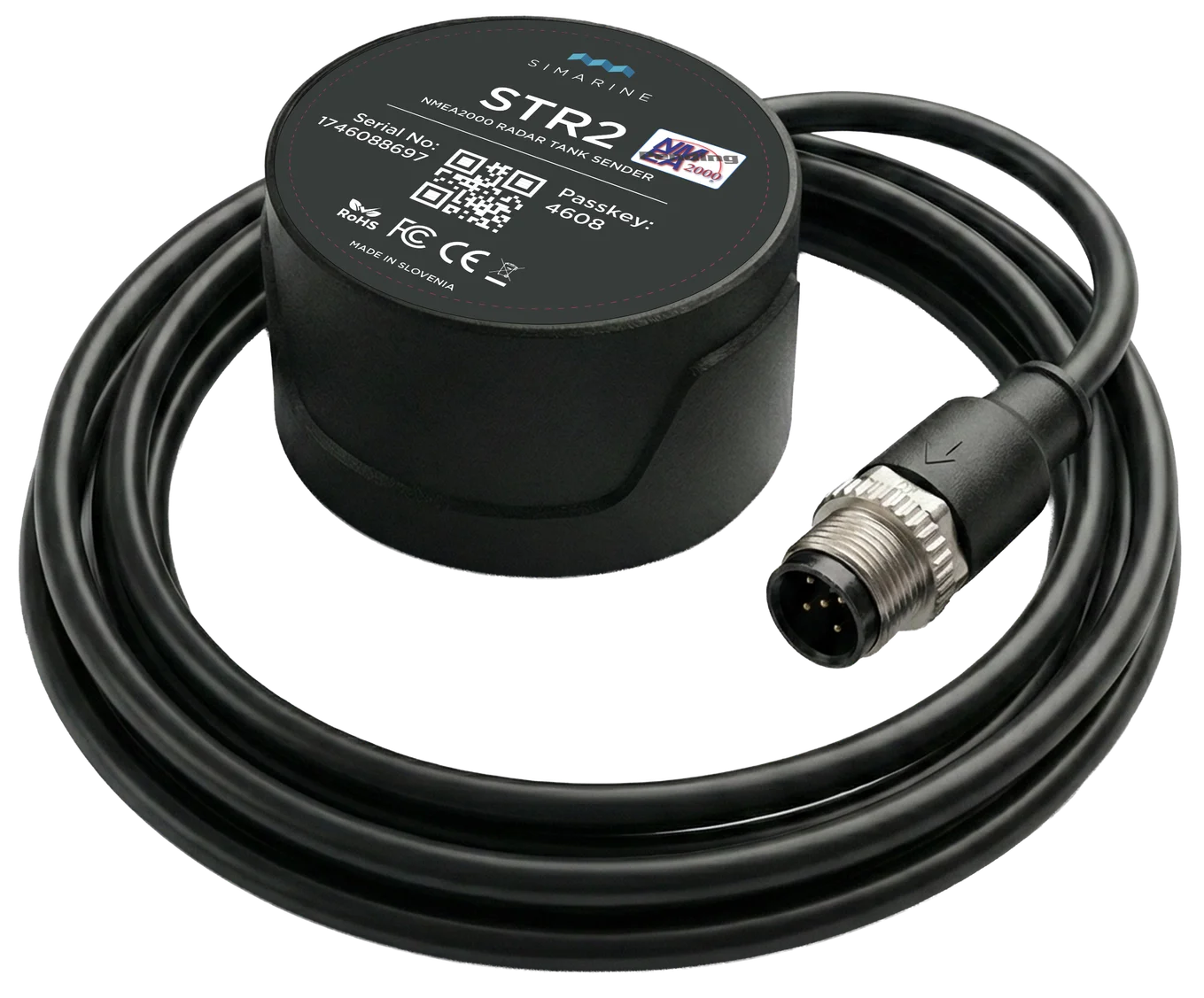

STR2 – NMEA 2000

The STR2 is the ideal choice for modern marine electronics using an NMEA 2000 network. It connects directly to the NMEA 2000 backbone and can provide tank level information to compatible chartplotters, multifunction displays and other NMEA 2000 equipment. Bluetooth connectivity is also included for configuration through the Simarine Connect app.

STR2 NMEA 2000

For boats equipped with modern NMEA 2000 electronics, the STR2 provides a direct digital solution.

The STR2 connects to the vessel’s NMEA 2000 backbone and communicates tank level information using the NMEA 2000 standard. Tank information can therefore be displayed on compatible marine electronics such as chartplotters and multifunction displays.

Analogue displays are not compatible with STR2 NMEA 2000 option.

Why Choose Simarine STR?

The STR1 and STR2 provide a modern alternative to conventional tank level senders.

The STR sensors are non-invasive. With automatic tank-height detection, Bluetooth configuration, a compact design and a choice of analogue or NMEA 2000 connectivity, there is an STR solution for both existing and modern tank monitoring systems.

Simple installation. No moving parts. No contact with the liquid. Accurate tank level information.

What’s in the box?

Simarine STR1 or STR2 radar tank level sender
Installation materials as supplied by the manufacturer
Connection equipment appropriate to the selected version
Access to Simarine Connect app configuration
Important Information

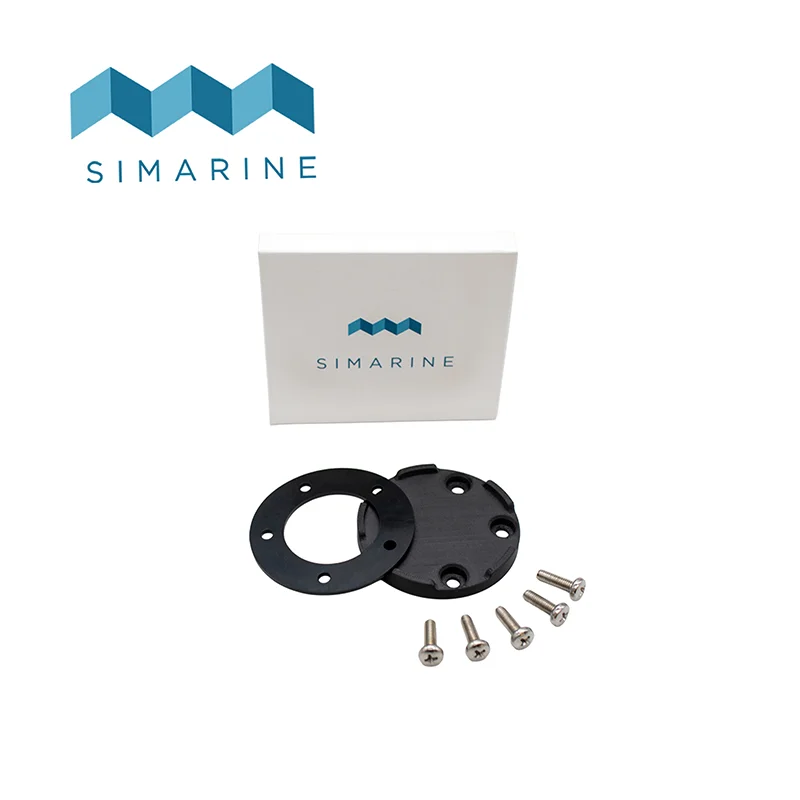

STR tank adapter (Metal tanks)

For metal tank installations, a suitable radar waveguide/adapter is required. The Simarine STR adapter provides a mounting solution for appropriate metal tank installations.

For the latest installation instructions, wiring information and technical specifications, refer to the manufacturer’s documentation.

STR1 and STR2 – modern tank level monitoring without putting a sensor in the tank.
