Home / Plastic Tanks / Series C Plastic Tanks / Fuel Tanks / Series C Original For Fuel
  • TT-5651 Series C Original Plastic Fuel Tank

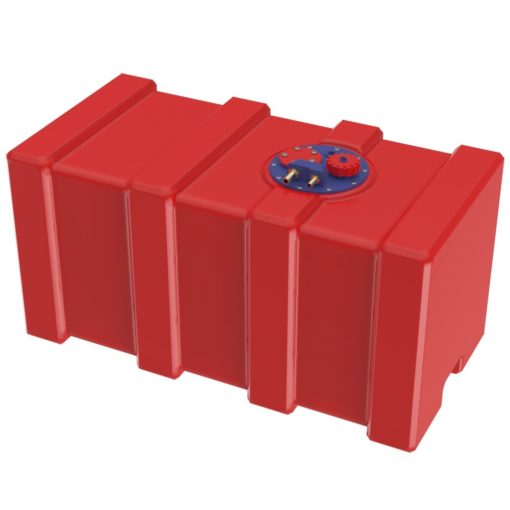

TT-5650 Series C Original Plastic Fuel Tank

102 Litre 800 x 400 x 400 (LWH)

£290.87

CE marked and compliant to ISO 21487 plastic fuel tank. Complete with fittings, suitable for petrol and diesel.

Series C Tank Document Downloads

102 Litre Standard Series C Fuel Tank

  • Tank Drawing
TT-5650 Series C Original Plastic Fuel Tank
102 Litre 800 x 400 x 400 (LWH)

£290.87

SKU: TT-5650 Category: Series C Original For Fuel Tag: Series C Tank Accessories
Product Categories
  • Plastic Tanks
    • Replacement Production Boat Tanks
    • Series A Plastic Tanks
    • Series C Plastic Tanks
    • Series D Plastic Water Tanks
    • Large Storage Tanks
    • Plastic Tank Accessories
    • Grey Water Systems
    • Loft Tanks and Water Butts
    • Agricultural Sprayer Tanks
    • C-Warm Calorifiers and Accessories
  • Senders and Gauges
    • Senders
    • Gauges
    • Fitting Flanges
  • Plumbing Equipment
    • EZI Seals
    • Firefighting and Washdown
    • Hatches
    • Hosetails
    • TruDesign Products
    • Hose and Hose Clips
    • Adapters
    • Camlock Hose Connectors
  • Pumps
    • Water Pumps
    • Grey Waste Pumps
    • Black Waste Pumps
    • Utility Pumps
    • Complete Pressurised Water Systems
    • Fuel Transfer Pumps
    • Pump Accessories
    • Keepalive Pumps
  • Sanitation Equipment
    • Sanitation Accessories
    • Toilets
  • Chemicals
    • Fuel Tank Treatments
    • Holding Tank Treatments
    • Water Tank Treatments
  • Tool Storage and Battery Boxes
    • Battery Boxes
    • Economy Tool Boxes
    • TekBox Range and Accessories
  • Special Offers
  • Uncategorised
  • Description
  • Additional information
  • Product Enquiry
Description

CE marked and fully approved for petrol and diesel fuel, made in Italy from High Density Polyethylene (HDPE). These tanks are red in colour.

Dimensions: Length 800mm x Width 400mm x Height 400mm

Inspection Plate: 175mm diameter (colour may vary)

These tanks come with the following fittings as standard:
  • A nylon inspection plate incorporating the provision for a level sender
  • 1 x 1 1/2″ BSP threaded vented cap
  • 1 x 10mm plastic fuel feed hosetail complete with dip pipe
  • 1 x 17/19mm plastic open vent hosetail
  • 1 x blanked threaded fuel return port

Please read the below information as it contains useful choice and installation information.


Level Indication Options
These tanks have a provision for a sender. There are 2 options available:

  1. S3 Series Sender, IPFR Gauge, FL2 Fitting Flange
  2. Mechanical Fuel Gauge

If you would like us to install your tank sender for you, please add the Fitting Charge to your basket when ordering.


Filling Options
These tanks come as standard with an 1 1/2″ BSP threaded vented cap. If you are planning to fill and vent your tank using this cap then it is suggested that the open vent hosetail is removed and blanked off with a 3/8″ BSP blanking plug.

If you are filling from a deck or bulkhead filler cap the Inlet Connector Kit will be required. Allow 90mm above the top of the tank when installing this fitting.  If you require a deck or bulkhead filler cap review our filler selection.


Fittings Upgrade and Diesel Returns
Series C tanks are CE marked and compliant to ISO 21487. Plastic hosetails are fitted as standard by the manufacturer. Should you require alternative hose diameters you will need to select brass hosetails. These hosetails will also be an improvement on the plastic ones supplied as standard.

Diesel returns are often required on mid sized and larger diesel engines. There is a provisional port for this although no hose tail is supplied as standard.

Want to upgrade, need a return fitting, a different sized feed or include a level sender and gauge, then no problem, see our Series C fittings and Accessories.

If you would like Tek Tanks to fit any of these fittings then please add the Fitting Charge option  to your basket.

Strap Down Kit

There is a strap down kit available in black or white. This kit consists of 4 screw down feet/brackets with webbing straps and clip buckles. Be aware that the feet of this kit raises the tank by 20mm.

Series C Fittings and Accessories Button


3D Interactive Model


Notes:

These tanks are not suitable to supply the engines of vehicles in automotive applications.
These tanks must be positioned outside of an engine compartment of a boat and away from other heat sources. The tanks should be situated in a well ventilated area.




Weight 7 kg

Product Enquiry

Related products

TT-5638 Series C Original Plastic Fuel Tank
+
Quick View

Series C Original For Fuel

43 Litre 650 x 350 x 230 (LWH)

£131.39
TT-5651 Series C Original Plastic Fuel Tank
+
Quick View

Series C Original For Fuel

120 Litre 950 x 400 x 400 (LWH)

£299.11
TT-5637 Series C Original Plastic Fuel Tank
+
Quick View

Series C Original For Fuel

33 Litre 500 x 350 x 230 (LWH)

£113.69
TT-5640 Series C Original Plastic Fuel Tank
+
Quick View

Series C Original For Fuel

40 Litre 500 x 400 x 280 (LWH)

£167.40
