Challenger 35 Diesel Tank

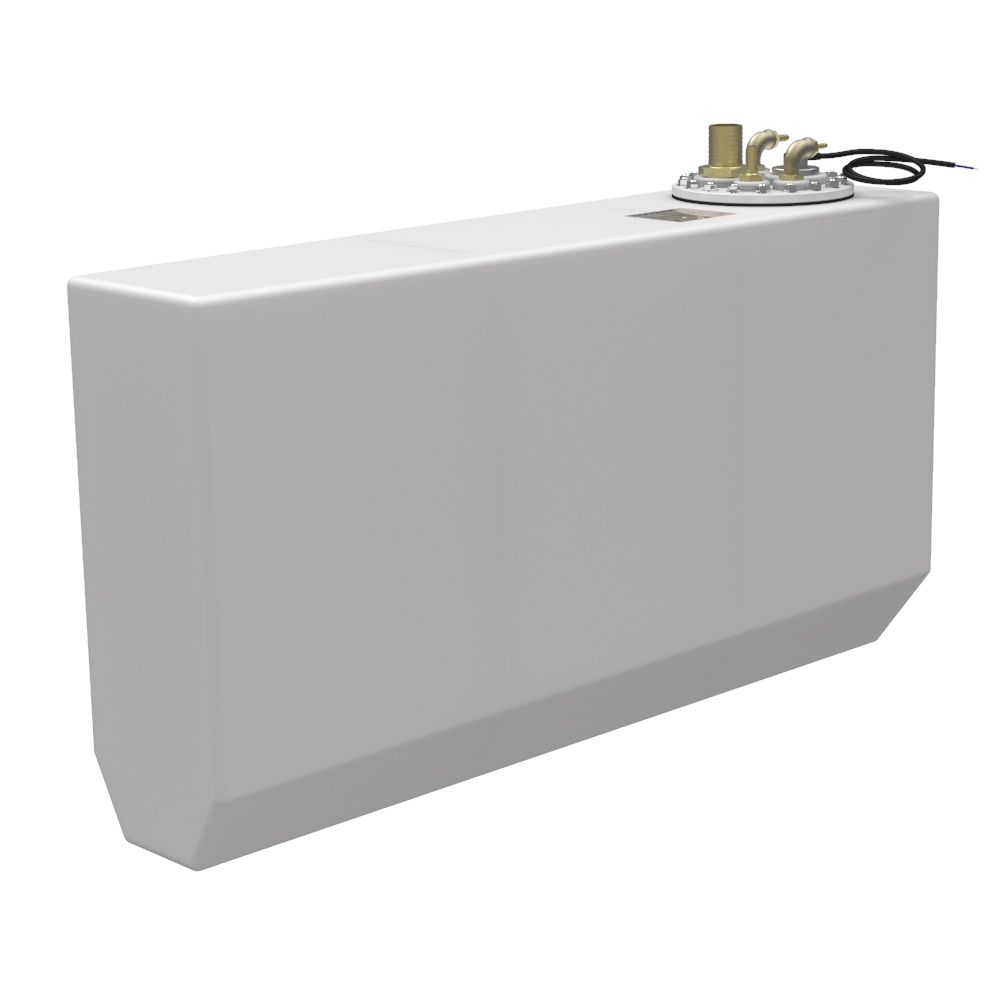

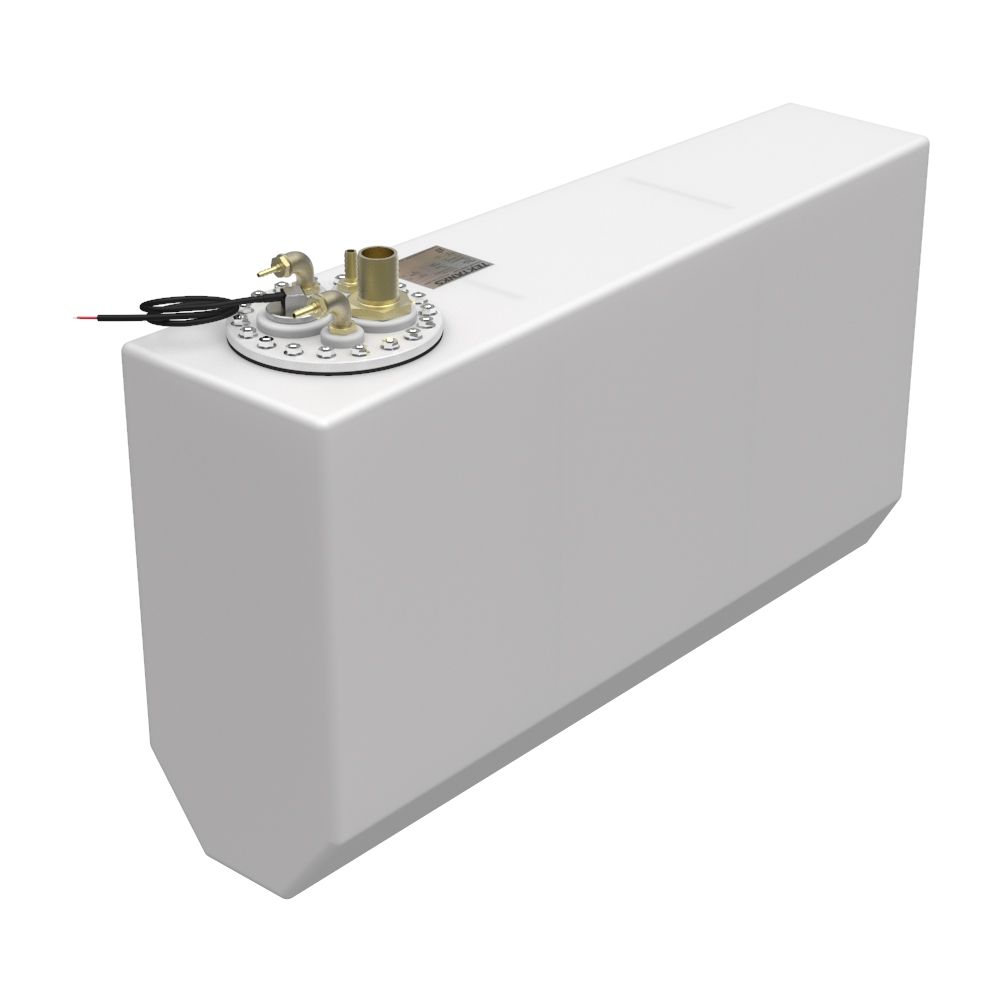

Challenger 35 Diesel Tank made from 10mm Natural High Density Polyethylene.

Overall dimensions without fittings:

Length: 1005mm
Width: 200mm
Height: 535mm

Fittings:

1 x 1 1/2″ BSP – 38mm Brass Straight Hosetail
1 x 1/2″ BSP – 13mm Brass Straight Hosetail
1 x 1/4″ BSP – 6mm Brass Elbow Hosetail
1 x 5/16″ BSP – 8mm Brass Elbow Hosetail
1 x 1 1/4″ – 1″ BSP Reducing Bush with 25mm Elbow Tap and Hosetail
S3-50 Wema Fuel Level Indicator

Capacity: 99 litres

Position in boat: Unknown

Drawings are available at a cost of £75.00 + VAT This cost is totally refundable if an order is placed for this tank. Please call for more information.

Please note, that this tank is subject to a lead time for manufacture. Please get in touch for more information.

To comply with the ISO 21487: 2012 CE marking standard, plastic diesel fuel tanks must be separated from the engine compartment with a suitable bulkhead so as to isolate it from the engine.

Please note: This tank was made to a customer’s design for their individual boat. Please check dimensions are correct for your own application.
