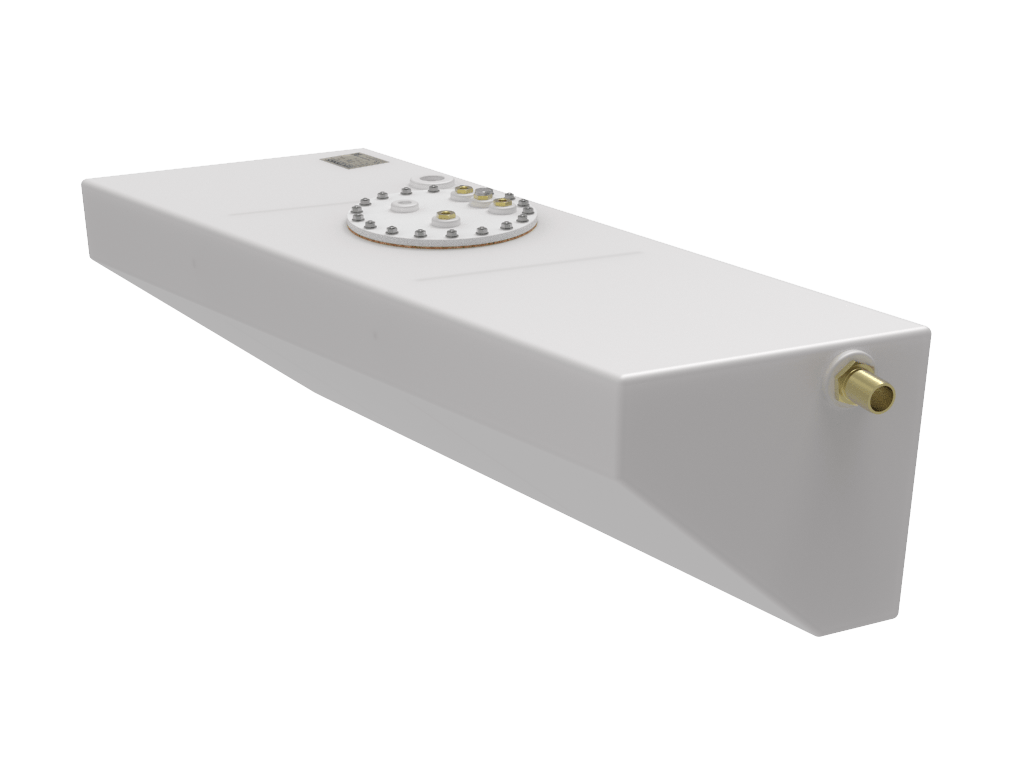

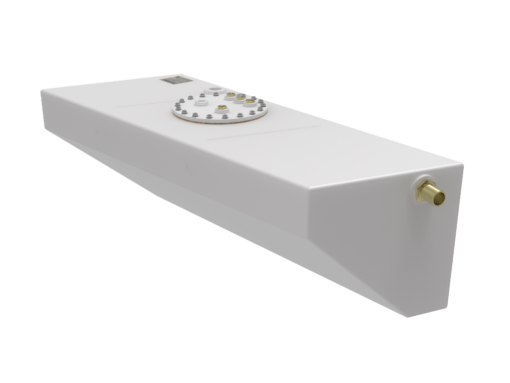

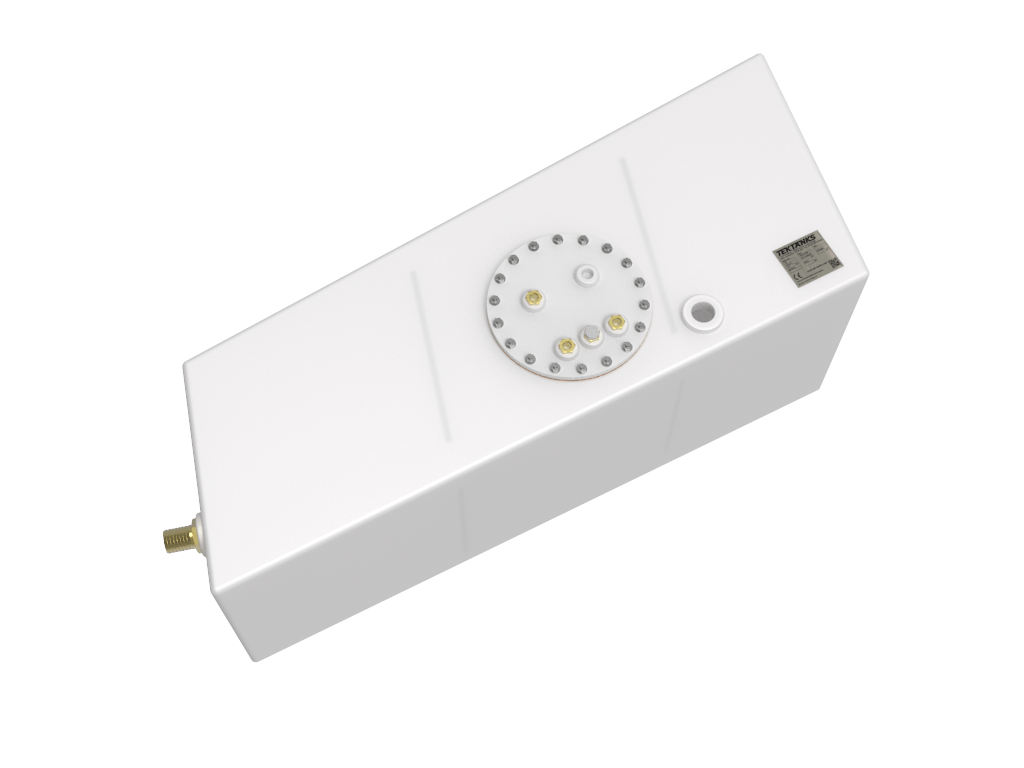

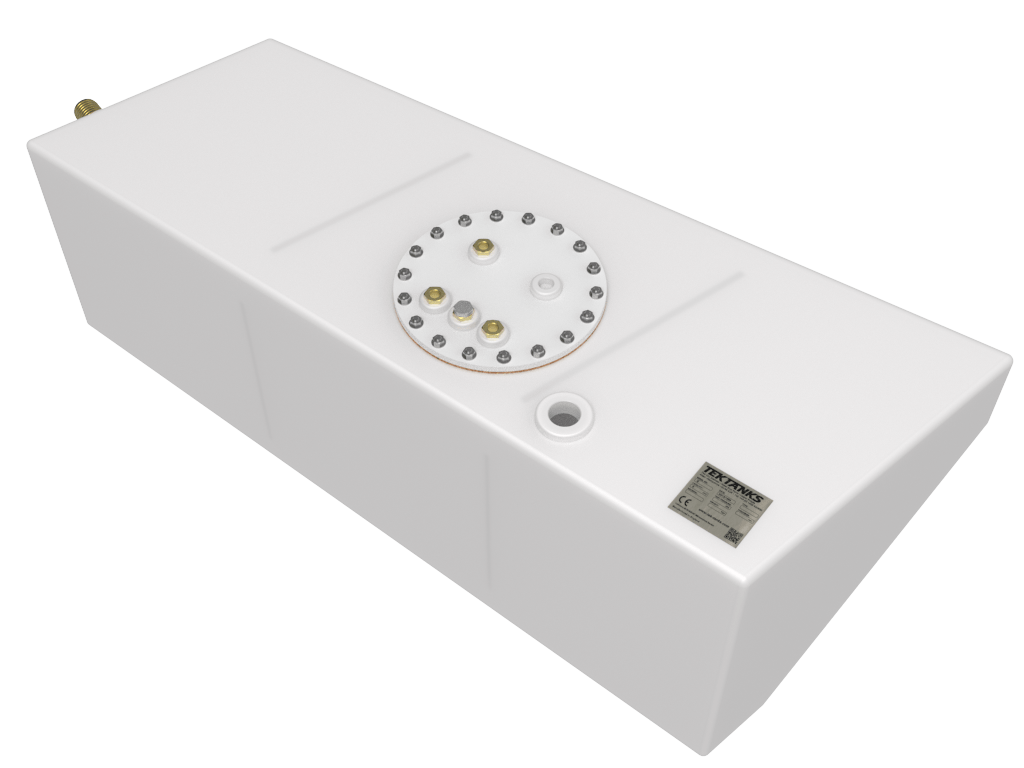

Contessa 39 Diesel Tank

Replacement Plastic Diesel for Contessa 39 Sailing Yachts.

Manufactured from 10mm thick High-Density Polyethylene.

Overall dimensions (without fittings):

Length: 1172mm
Width: 493mm
Height: 440mm

Fittings:

1 x 1 1/2″ BSP – 38mm Brass Straight Hosetail
1 x 1/2″ BSP – 13mm Socket
1 x 1 1/4″ BSP –  Socket for Sender
3 x 1/2″ BSP – 1/4″ BSP Brass Reducing Bushes
2 x 3/8″ BSP Plug
3 x Copper Dip Pipes
1 x 270mm Nuts and Bolts Custom Tek-Tanks Inspection Hatch

Capacity: 135 litres

Position in Boat: Port

Drawings are available at the cost of £75.00 VAT. This cost is refundable if an order is placed for this tank.

Please note the following:

– This tank is subject to a lead time for manufacture. Please get in touch for more information;
– This tank was made to a customer’s design for their boat. Therefore, please check dimensions are correct for your application;
– To comply with the ISO 21487: 2012 CE marking standard, plastic diesel fuel tanks must be separated from the engine compartment with a suitable bulkhead so as to isolate them from the engine.
