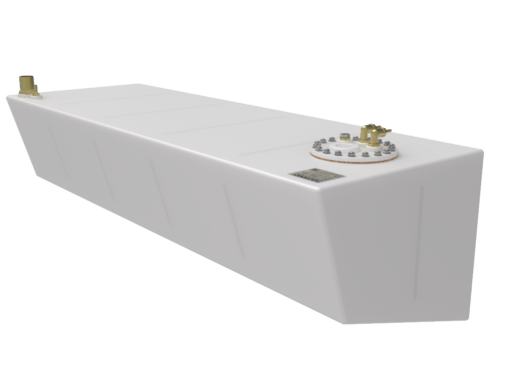

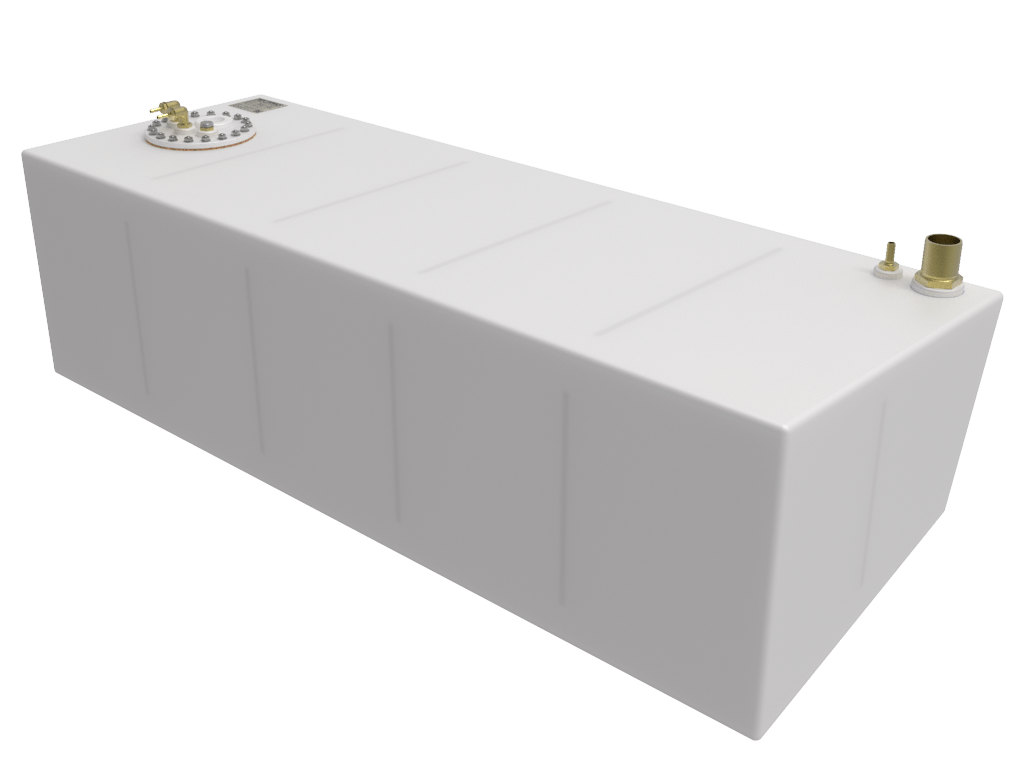

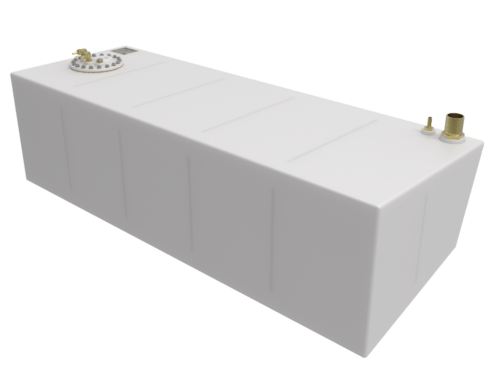

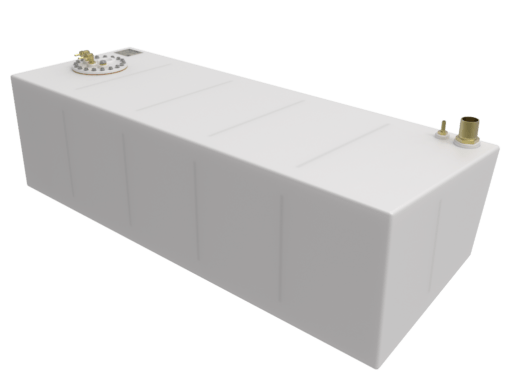

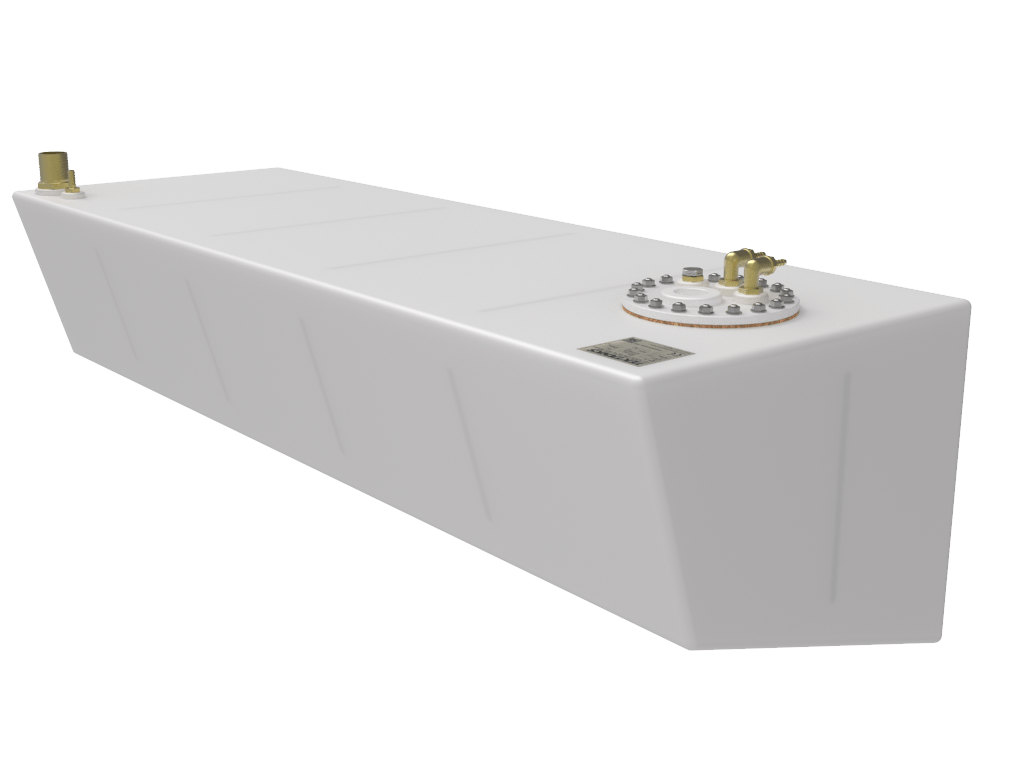

Corvette 420 Diesel Tank

Replacement Plastic Diesel for Corvette 420 Sailing Yachts.

Manufactured from 10mm thick High-Density Polyethylene.

Overall dimensions (without fittings):

Length: 1600mm
Width: 552mm
Height: 445mm

Fittings:

1 x 2 BSP – 50mm Brass Straight Hosetail
1 x 1/2″ BSP – 13mm Brass Straight Hosetail
2 x 5/16″ BSP – 8mm Brass Elbow Hosetail
2 x Copper Dip Pipe
1 x 1 1/4″ BSP Female Socket
1 x 200mm Nuts & Bolts Inspection Hatch
1 x 3/8″ BSP Plug (Drain)

Capacity: 263 litres

Position in Boat: Centre Cockpit

Drawings are available at the cost of £75.00 VAT. This cost is refundable if an order is placed for this tank.

Please note the following:

– This tank is subject to a lead time for manufacture. Please get in touch for more information;
– This tank was made to a customer’s design for their boat. Therefore, please check dimensions are correct for your application;
– To comply with the ISO 21487: 2012 CE marking standard, plastic diesel fuel tanks must be separated from the engine compartment with a suitable bulkhead so as to isolate them from the engine.
