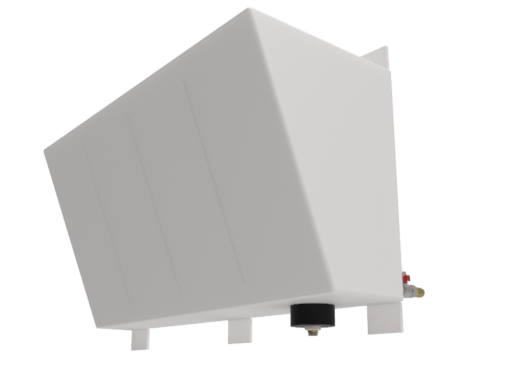

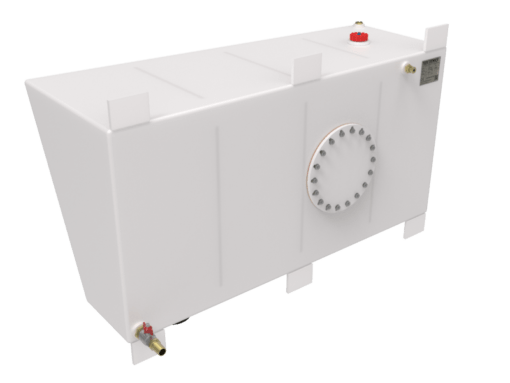

Cygnus 28 Diesel Tank

Replacement Port Diesel Tank for Cygnus 28 Motor Boats.

Manufactured in the UK from 10mm thick High-Density Polyethylene.

Overall dimensions (without fittings):

Length: 1200mm
Width: 500mm
Height: 600mm

Fittings:

1 x 38mm Vented Filler Cap
1 x 1/2″- 3/8″ BSP Brass Reducer Assembly
1 x 1 1/2″ BSP – 38mm Brass Straight Hosetail
1 x 8mm Straight Compression Stud
1 x 1″ BSP – 25mm Straight Brass Hosetail Valved
1 x ⌀ 280mm Tek-Tanks “Nuts & Bolts” Diesel Tank Inspection Hatch
1 x 3/8″ Plug
6 x Fixing Flanges (supplied undrilled)

Capacity: 203 litres

Position in Boat: Port

Drawings are available at the cost of £75.00 VAT. This cost is refundable if an order is placed for this tank.

Please note the following:

– This tank is subject to a lead time for manufacture. Please get in touch for more information;
– This tank was made to a customer’s design for their boat. Therefore, please check that the dimensions are correct for your application;
– To comply with the ISO 21487: 2012 CE marking standard, plastic diesel fuel tanks must be separated from the engine compartment with a suitable bulkhead so as to isolate them from the engine.
