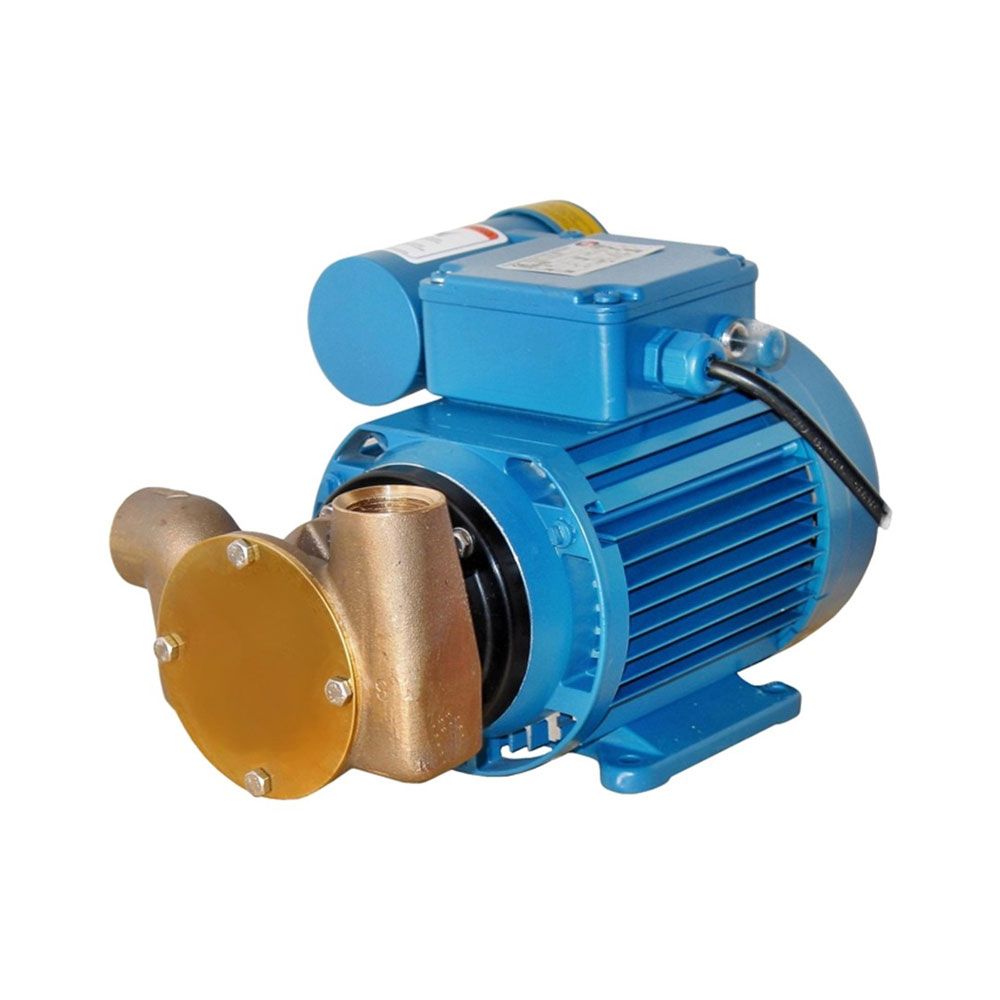

Heavy duty, continuously rated sliding vane pump.
Robust cast iron body, bronze sliding vanes.
Unaffected by temperature extreams, suitable for use from -30c to 40c.
Self priming from dry up to 3 metres vertical lift.
For tank capacities from 200 to 500 litres.
IP55 motor enclosure.
Complete with Switch/fuse holder and 1″ adapters.
Output: up to 52 litres per minute ( 11 gallons per minute ) at 3 mtrs head. Maximum recommended total head 10 mtrs.
Connections: Use minimum 25mm ( 1″ ) bore hose.
Dimensions: 215mm high 130mm wide 65mm high
Recommended fuse size 12 volt 20 amp / 24 volt 10 amp
