Ducato – Boxer – Relay 62 & 92 Litre Underslung Water Tanks

Suitable for the following Vehicles:

Fiat Ducato
Peugot Boxer
Citroen Relay 2006 onwards.

The 62 Litre tank will NOT fit the L1 and L2 models.
The 92 Litre tank will not fit the L1 model. The 92 Litre will fit the L2 as long as the Fitting Kit USK92F is used
Both Tanks will fit the L3 and L4 models
These tanks will fit both RHD and LHD models.

Manufactured from food-grade black Medium-Density Polyethylene these tanks can be used for either freshwater or grey wastewater.

As tank manufacturers, we can plastic weld in alternative fittings and fixings where you want them.

If you have any questions or simply want to discuss your chosen tank do not hesitate to contact us. We are more than happy to help you as we offer our experience and expertise for free.

Black MDPE is UV resistant and stops light from entering the tank which inhibits algae growth.

Weight:

62 Litre: 8.5kg
92 Litre: 12.0kg

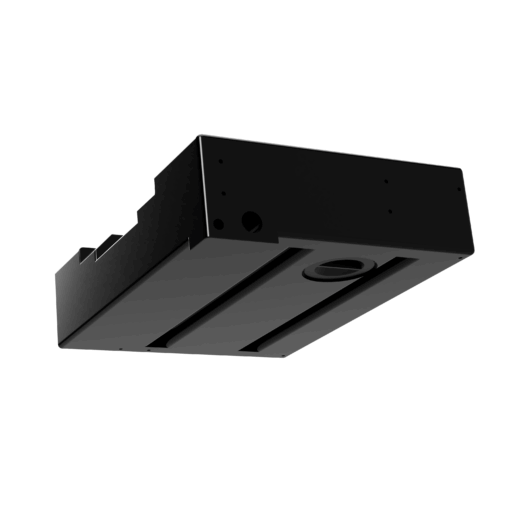

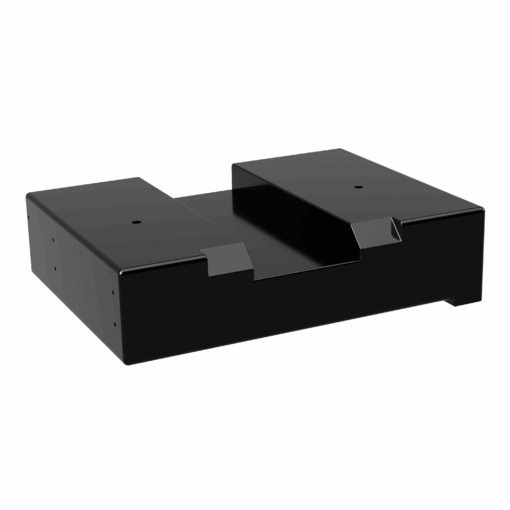

The 62 Litre tank come with a 5” screw top inspection hatch providing good access, 1 x 1 1/4″ BSP, 1x ½” BSP threaded inserts and 2 x 1/2″ BSP Vents and 14 x M8 blind threaded inserts used to securely fix the tank to the vehicle.

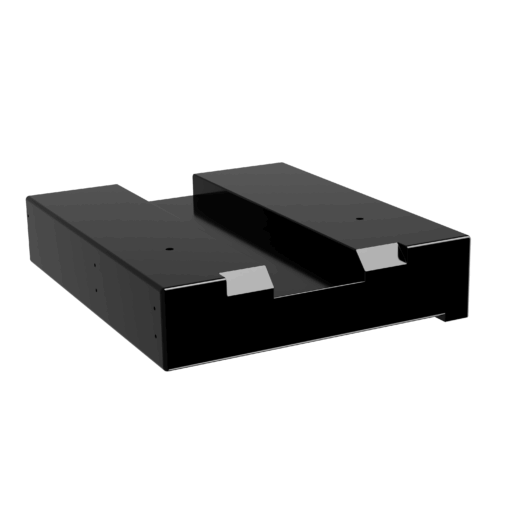

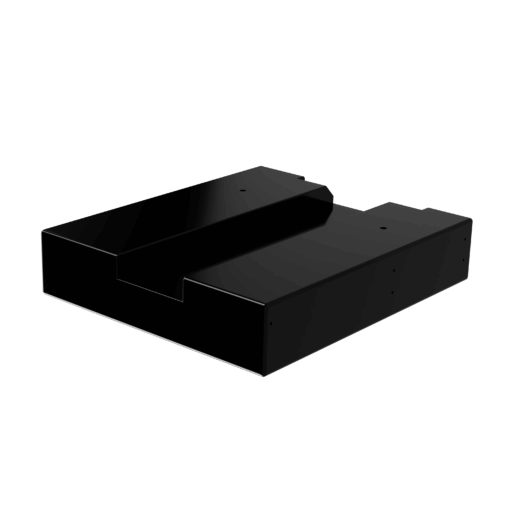

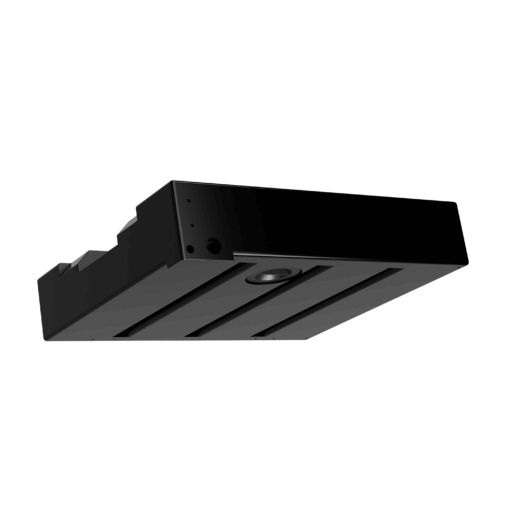

The 92 Litre tank comes with a 5″ screw top inspection hatch providing good access, 1 x 1 1/4″ BSP, 1x ½” BSP threaded inserts and 2 x 1/2″ BSP Vents and 17 x M8 blind threaded inserts used to securely fix the tank to the vehicle.

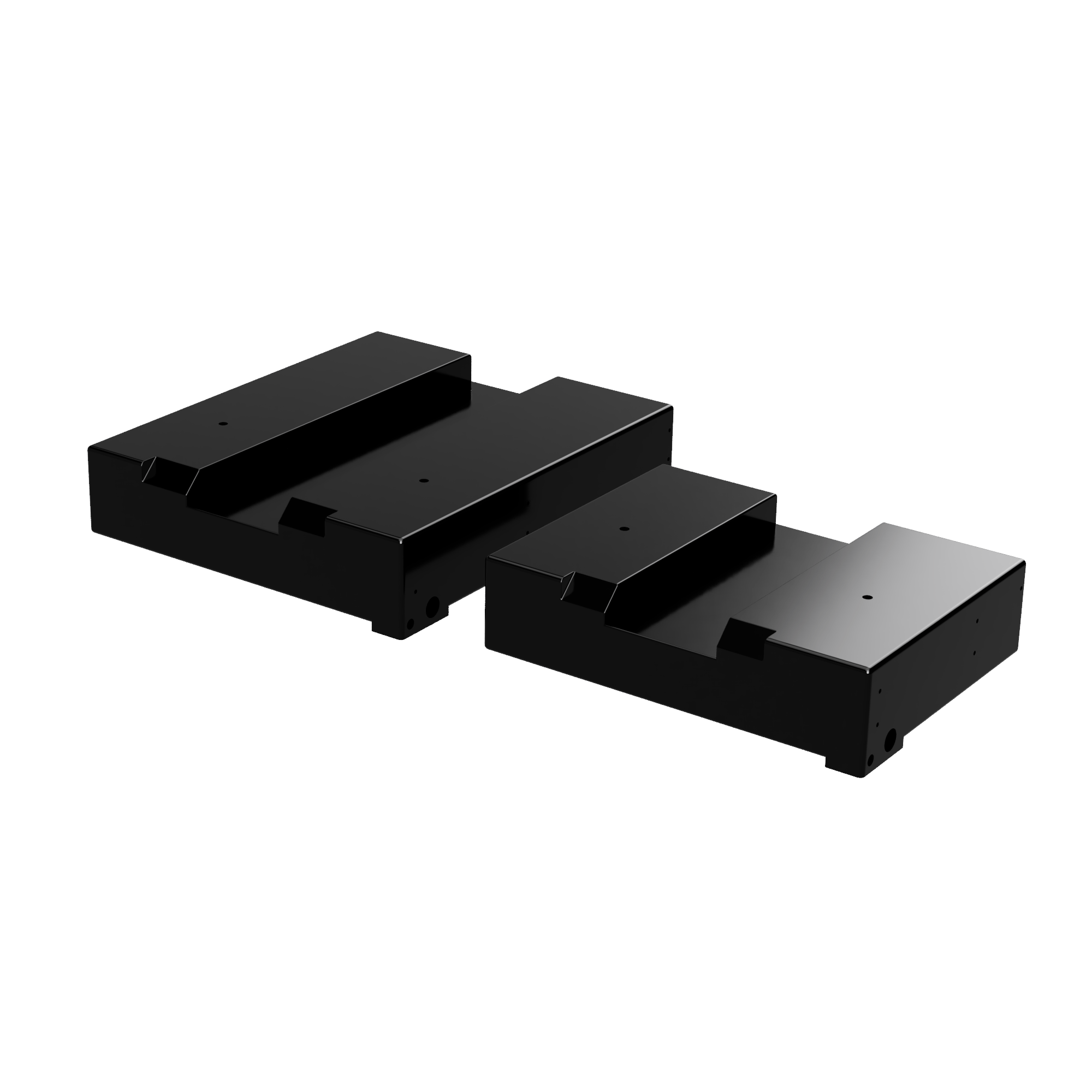

The Twin Tank Fitting Kit (USKTDC) and Plumbing Kits (USKTDP) are for use when both tanks are installed.

Only one 62 Litre tank and one 92 Litre tank can be fitted on the vehicle. 2 x 62 Litre and 2 x 92 Litre CANNOT be fitted.

---

The USK62F Fitting Kit for the 62 Litre Underslung Tank consists of the following items:

• 2 x  Ducato underslung Z bracket
• 2 x Ducato underslung medium bracket
• 8 x M8 x 16mm socket head screws
• 20 x 5.5 x 25mm Evoshield TEK 3 screws

---

The USKSDP  Plumbing Kit for the 62 Litre and 92 Litre Tanks consists of the following items:

• 1 x 1 1/4″ x 40mm hosetail
• 1 x 1 1/4″ x 40mm 90 degree hosetail
• 1 x 1 1/4″ Femail Tee
• 1 x 1/2″ Plug
• 1 x 1/2″ x 13mm hosetail
• 1 x 1 1/4″ x 47.5mm plastic nipple
• 1x 1 1/4″ x 1/2″ plastic bush
• 1 roll PTFE tape

---

The USK92F Fitting Kit for the 92 Litre Underslung Tank consists of the following items:

• 2 x  Ducato underslung Z bracket
• 2 x Ducato underslung medium bracket
• 2 x Ducato underslung small bracket
• 12 x M8 x 16mm socket head screws
• 26 x 5.5 x 25mm Evoshield TEK 3 screws

---

The USKTDC Fitting Kit for the twin installation of both tanks consists of the following items:

• 2 x  Ducato underslung Z bracket
• 2 x Ducato underslung medium bracket
• 2 x Ducato underslung small bracket
• 12 x M8 x 16mm socket head screws
• 26 x 5.5 x 25mm Evoshield TEK 3 screws

---

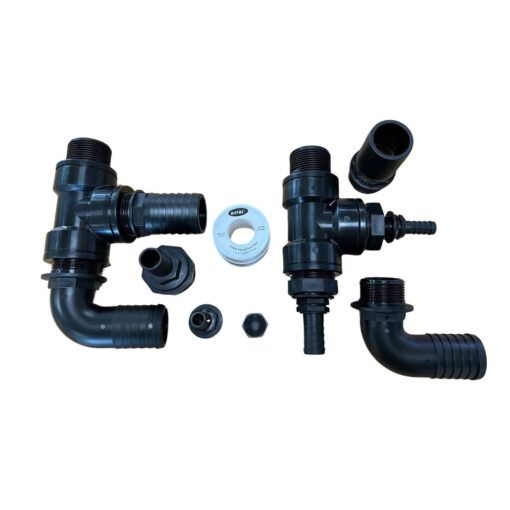

The USKTDP Plumbing Kit for the twin installation of both tanks consists of the following:

• 2 x 1 1/4″ x 40mm hosetail
• 2 x 1 1/4″ x 40mm 90 degree hosetail
• 2 x 1 1/4″ x 20mm hosetail
• 2 x 1 1/4″ Femail Tee
• 1 x 1/2″ Plug
• 2x 1/2″ x 13mm hosetail
• 2 x 1 1/4″ x 47.5mm plastic nipple
• 1x 1 1/4″ x 1/2″ plastic bush
• 1 roll PTFE tape

---

The USK92F2 Fitting Kit (92 Litre L2 Variant) consists of the following:

• 2 x  Ducato underslung Z bracket
• 2 x Ducato underslung medium bracket
• 8 x M8 x 16mm socket head screws
• 20x 5.5 x 25mm Evoshield TEK 3 screws

---
