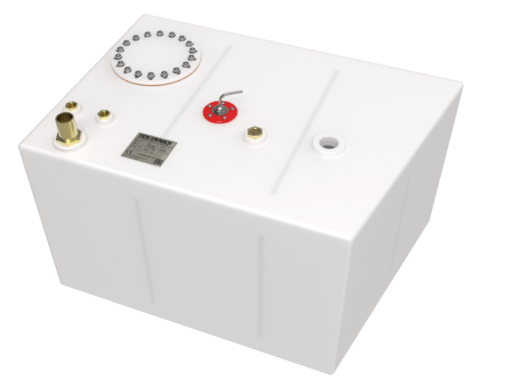

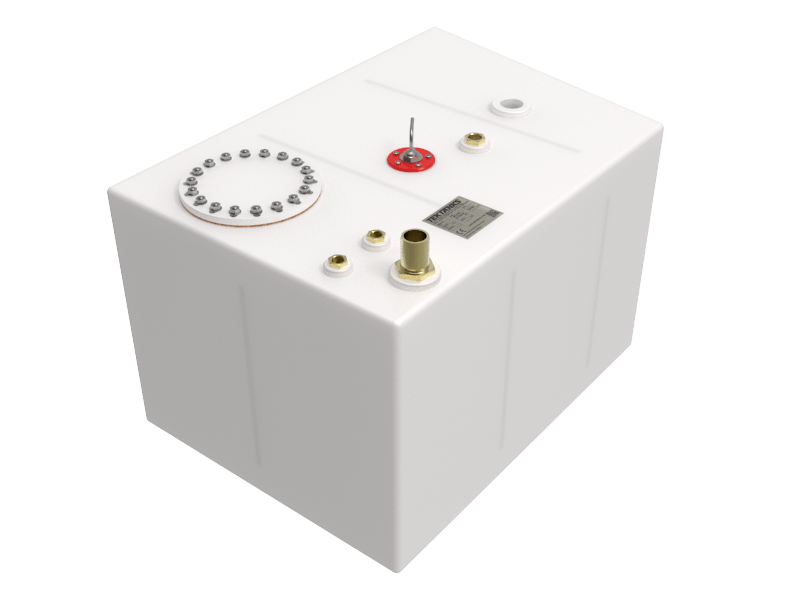

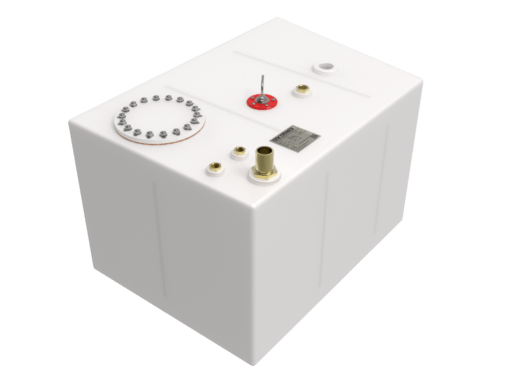

Etap 32 Diesel Tank

Replacement Diesel Tank for Etap 32 Sailing Yachts

Manufactured from 10mm thick High-Density Polyethylene.

Overall dimensions (without fittings):

Length: 825mm
Width: 560mm
Height: 465mm

Fittings:

1 x 1 1/2″ BSP – 38mm Straight Brass Hosetail
1 x 3/4″ -1/2″ – 19 – 13mm Reducer
2 x 1/2″ -23/64″ – 13 – 9mm Reducer
2 x Copper Dip Pipe
1 x 1 1/4″ BSP – 32mm Female Socket
1 x Mikuni Heater Feed
1 x ⌀ 210mm  Tek-Tanks “Nuts & Bolts” Diesel Tank Inspection Hatch

Capacity: 176 litres

Position in Boat: Port Lazarette

Drawings are available at the cost of £75.00 VAT. This cost is refundable if an order is placed for this tank.

Please note the following:

– This tank is subject to a lead time for manufacture. Please get in touch for more information;
– This tank was made to a customer’s design for their boat. Therefore, please check that the dimensions are correct for your application;
– To comply with the ISO 21487: 2012 CE marking standard, plastic diesel fuel tanks must be separated from the engine compartment with a suitable bulkhead so as to isolate them from the engine.
