Evolution 38 Icelandic Diesel

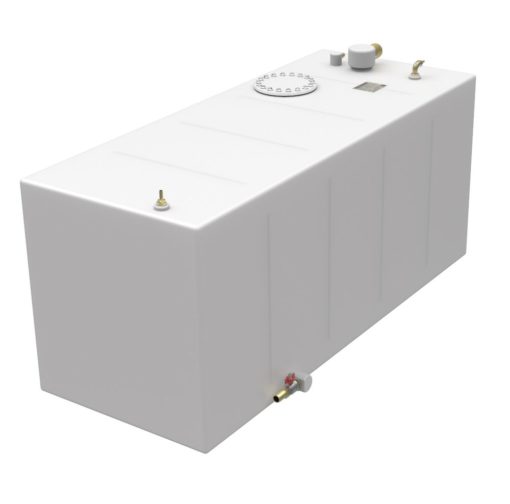

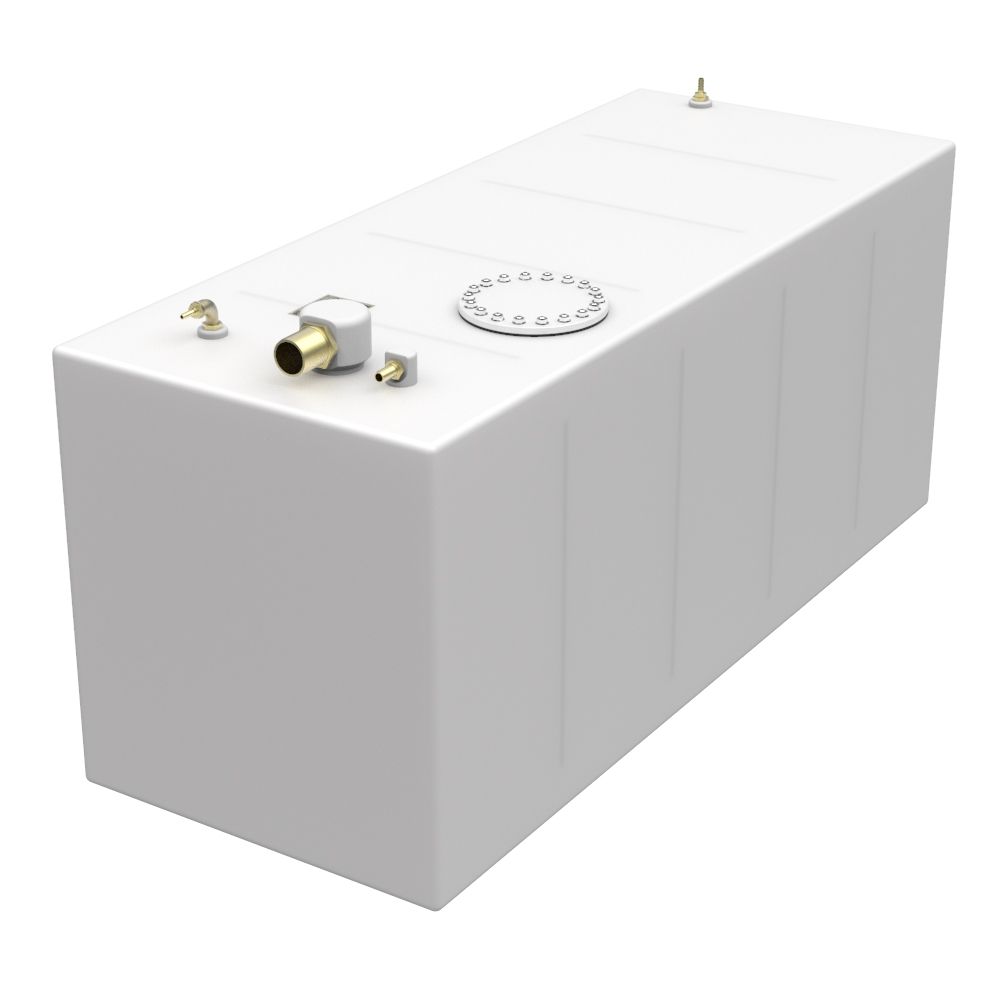

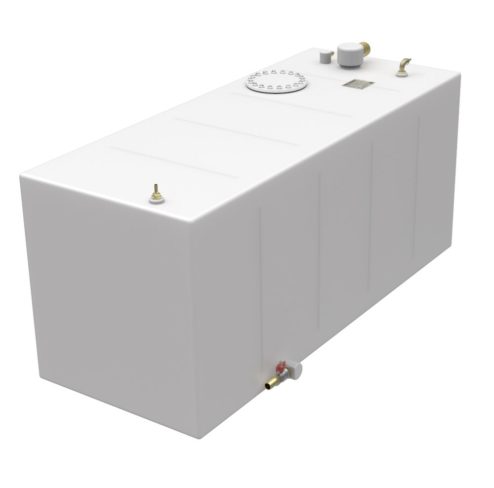

Evolution 38 Icelandic Diesel Tank made from 10mm Natural High Density Polyethylene

Overall dimensions not including fittings:

Length: 1500mm
Width: 600mm
Height: 650mm

Fittings:

1 x 1/2″ BSP – 10mm Straight Brass Hosetail with Copper Dip Pipe
1 x 1/2″ BSP – 8mm Banjo with Brass Hosetail and Copper Dip Pipe
1 x 3/4″ BSP – 16mm Fixed Elbow with Brass Hosetail
1 x 1 1/2″ BSP – 25mm Fixed Elbow with Brass Hosetail
1 x 1 1/2″ BSP – 50mm Fixed Elbow with Brass Hosetail
1 x 200mm Nuts and Bolts

Capacity: 535 litres

Position in Boat: Port Side

Drawings are available at a cost of £75.00 + VAT This cost is totally refundable if an order is placed for this tank. Please call for more information.

Please note, that this tank is subject to a lead time for manufacture. Please get in touch for more information.

To comply with the ISO 21487: 2012 CE marking standard, plastic diesel fuel tanks must be separated from the engine compartment with a suitable bulkhead so as to isolate it from the engine.

Please note: This tank was made to a customer’s design for their individual boat. Please check dimensions are correct for your own application.
