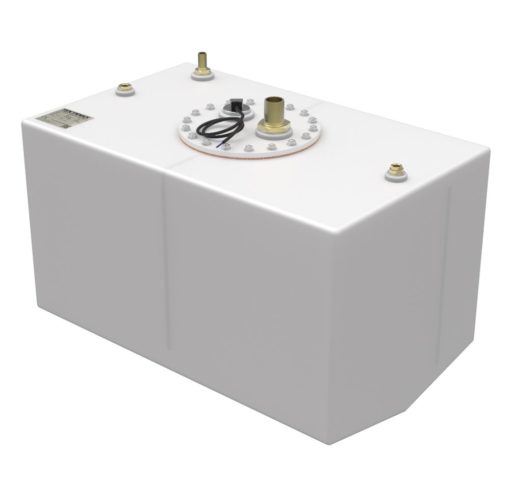

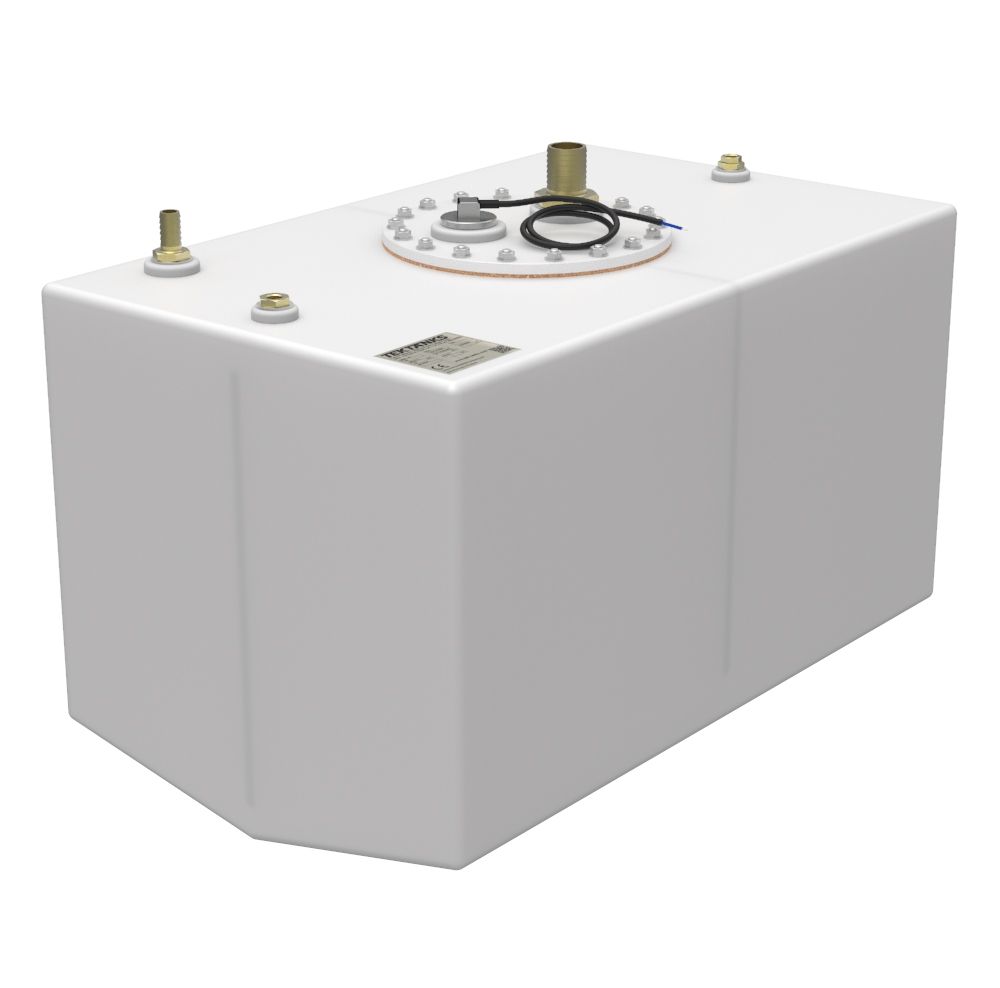

Fairey Spearfish Diesel Tank made from 10mm Natural High Density Polyethylene
Overall dimensions without fittings:
1 x 1 1/2″ BSP – 38mm Brass Straight Hosetail
1 x 3/4″ BSP – 19mm Brass Straight Hosetail
1 x 1/2″ BSP – 1/4″ BSP Reducer for the original tank fitting
1 x Copper Dip Pipe
1 x 270mm Nuts and Bolts Hatch
1 x 1 1/4″ BSP Socket
S3-45 Wema Fuel Sender included in the price. Please see related products for other options.
Capacity: 146 litres
Position in boat: Aft Bilge
Drawings are available at a cost of £75.00 + VAT This cost is totally refundable if an order is placed for this tank. Please call for more information.
Please note, that this tank is subject to a lead time for manufacture. Please get in touch for more information.
To comply with the ISO 21487: 2012 CE marking standard, plastic diesel fuel tanks must be separated from the engine compartment with a suitable bulkhead so as to isolate it from the engine.
Please note: This tank was made to a customer’s design for their individual boat. Please check dimensions are correct for your own application.
