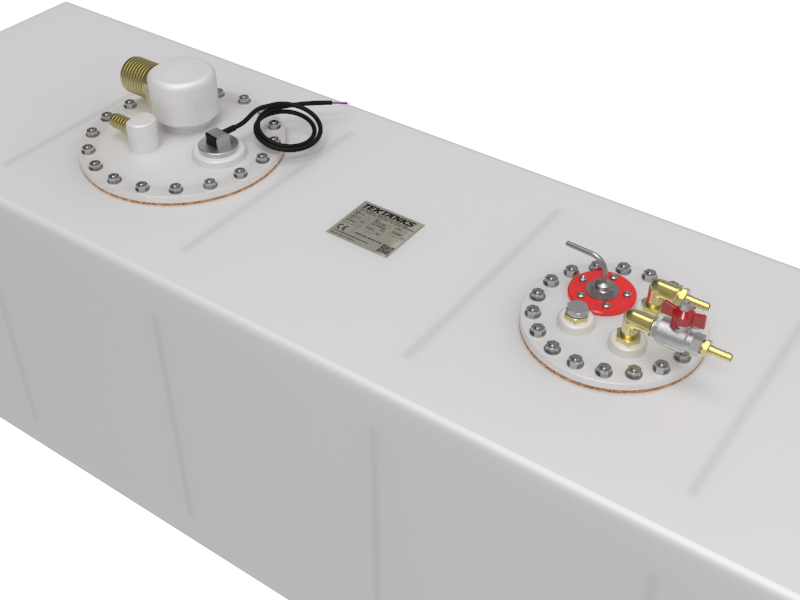

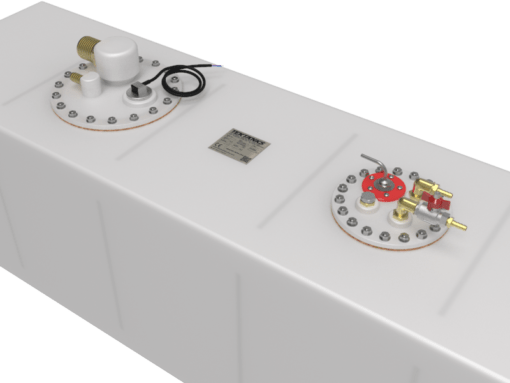

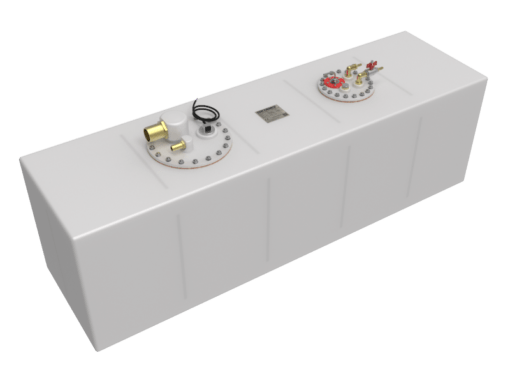

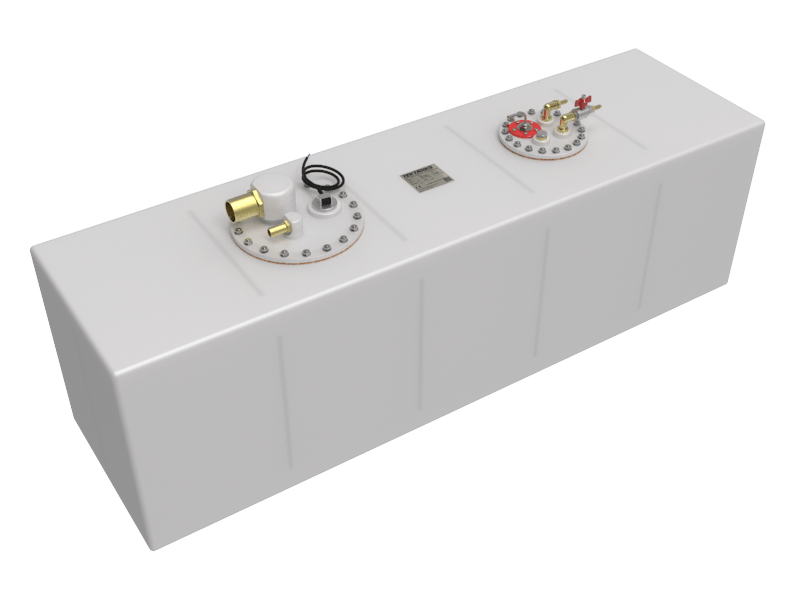

Fairey Swordsman 27 Aft Diesel Tank
Replacement Diesel Plastic Tank for Fairey Swordsman 27 Motor Boats.
Manufactured from 10mm thick High-Density Polyethylene.
Overall dimensions (without fittings):
1 x 2″ BSP – 50mm Fixed Elbow Brass Hosetail
1 x 3/4″ BSP – 19mm Fixed Elbow Brass Hosetail
1 x Tek-Tanks Custom Nuts & Bolts Inspection hatch (200mm O.D.)
1 x Tek-Tanks Custom Nuts & Bolts Inspection hatch (270mm O.D.)
1 x Mikuni Heater Feed
1 x Plug (drain)
2 x 3/8″ BSP – 10mm Elbow Brass Hosetail
2 x Dip Pipe
1 x 1 1/4″ BSP Socket
1 x Fuel Tank Wema Level Indicator
1 x Analogue Fuel Gauge
Capacity: 308 litres
Position in Boat: Aft
Drawings are available at the cost of £75.00 VAT. This cost is refundable if an order is placed for this tank.
Please note the following:
– This tank is subject to a lead time for manufacture. Please get in touch for more information;
– This tank was made to a customer’s design for their boat. Therefore, please check dimensions are correct for your application;
– To comply with the ISO 21487: 2012 CE marking standard, plastic diesel fuel tanks must be separated from the engine compartment with a suitable bulkhead so as to isolate them from the engine.
