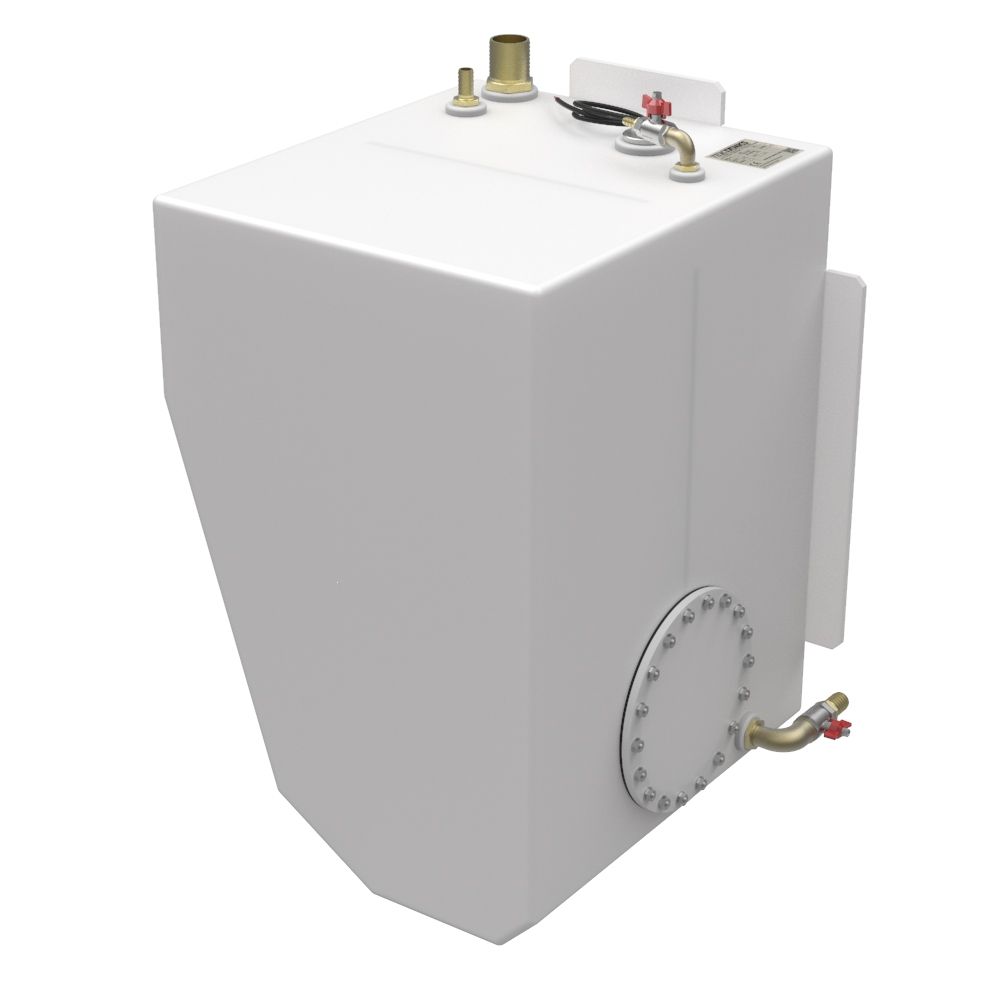

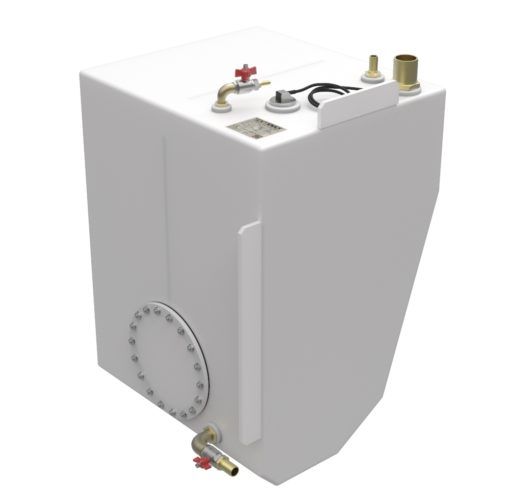

Fairline 43 Port Diesel Tank
Replacement Diesel Tank for Fairline 43. Manufactured from 10mm thick High-Density Polyethylene.
Overall dimensions (without fittings):
1 x 2″ BSP – 50mm Brass Straight Hosetail
1 x 1″ BSP -25mm Valved Brass Elbow Hosetail
1 x 3/4″ BSP – 19mm Straight Brass Hosetail
1x 3/8″ BSP – 10mm Valved Brass Elbow Hosetail
1 x Copper Dip Pipe
1 x 1 1/4″ BSP Female Socket
1 x 270mm Nuts and Bolts Tek-Tanks Custom Inspection Hatch
2 x Flanges (supplied undrilled)
Capacity: 188 litres
Position in Boat: Port
Drawings are available at the cost of £75.00 VAT. This cost is refundable if an order is placed for this tank.
Please note the following:
– This tank is subject to a lead time for manufacture. Please get in touch for more information;
– This tank was made to a customer’s design for their boat. Therefore, please check dimensions are correct for your application;
– To comply with the ISO 21487: 2012 CE marking standard, plastic diesel fuel tanks must be separated from the engine compartment with a suitable bulkhead so as to isolate them from the engine.
