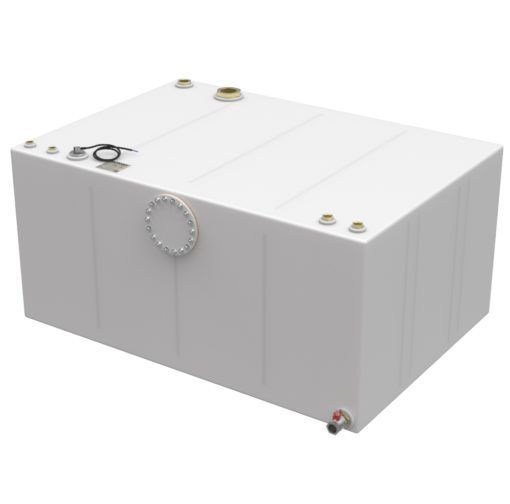

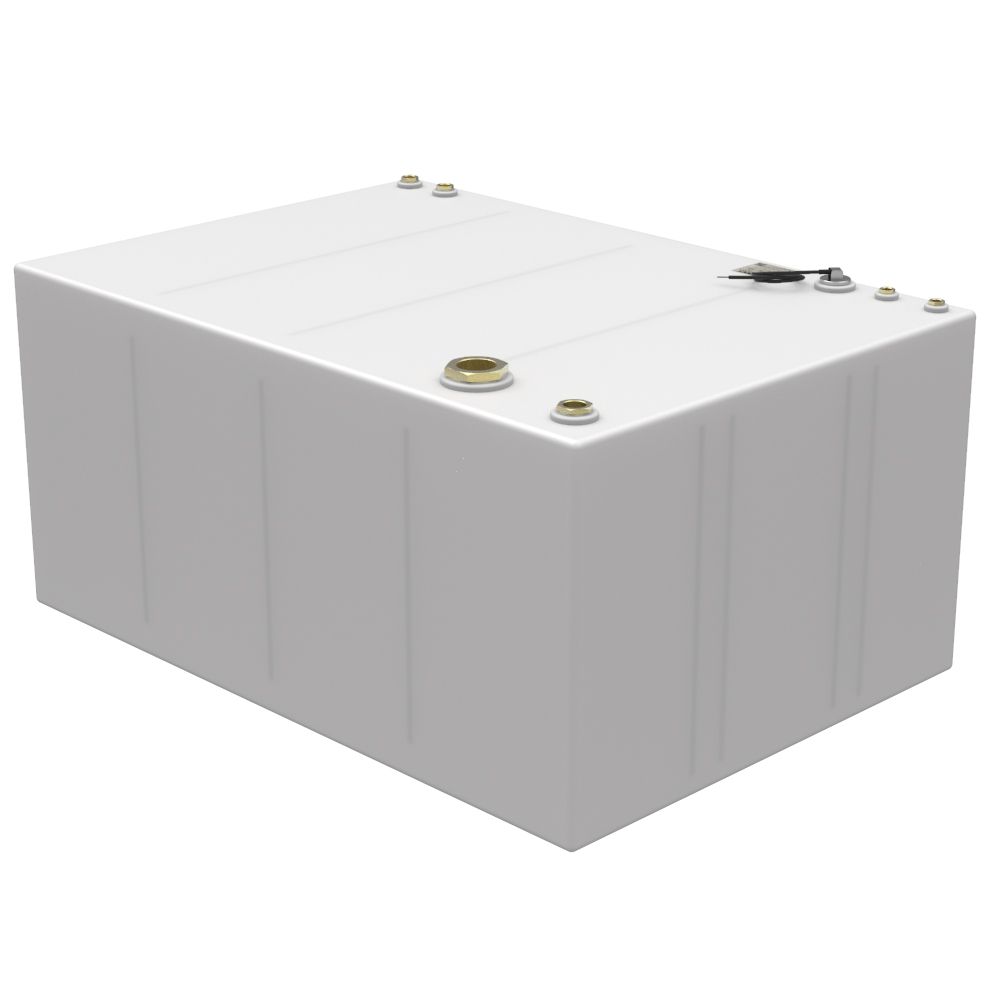

Gemini GF 12M Starboard Diesel Tank
Replacement Starboard Diesel Tank for Gemini GF 12M. Manufactured from High-Density Polyethylene.
Overall dimensions (without fittings):
1 x 2 1/ 2″ BSP – 2″ BSP Brass Reducing Bush
1 x 1 1/4″ BSP -1″ BSP Brass Reducing Bush
2 x 1/2″ BSP – 3/8″ BSP Brass Reducing Bush
2 x Copper Dip Pipe
1 x 1 1/4″ BSP -1″ BSP Valved Reducer
1 x 1 1/4″ BSP Female Socket for the Level Indicator
1 x Wema Fuel Level Indicator
1 x Wema Analogue Fuel Gauge
1 x 200mm Nuts and Bolts Tek-Tanks Custom Inspection Hatch
2 x Flanges (supplied undrilled)
Capacity: 740 litres
Position in Boat: Starboard
Drawings are available at the cost of £75.00 VAT. This cost is refundable if an order is placed for this tank.
Please note the following:
– This tank is subject to a lead time for manufacture. Please get in touch for more information;
– This tank was made to a customer’s design for their boat. Therefore, please check dimensions are correct for your application;
– To comply with the ISO 21487: 2012 CE marking standard, plastic diesel fuel tanks must be separated from the engine compartment with a suitable bulkhead so as to isolate them from the engine.
