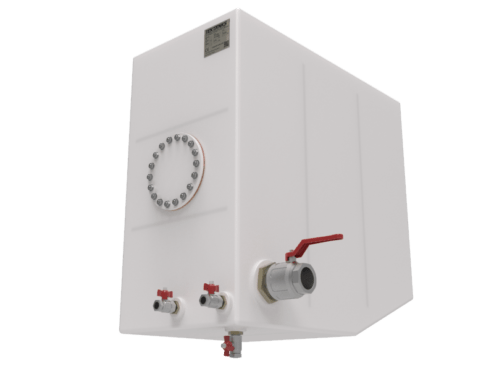

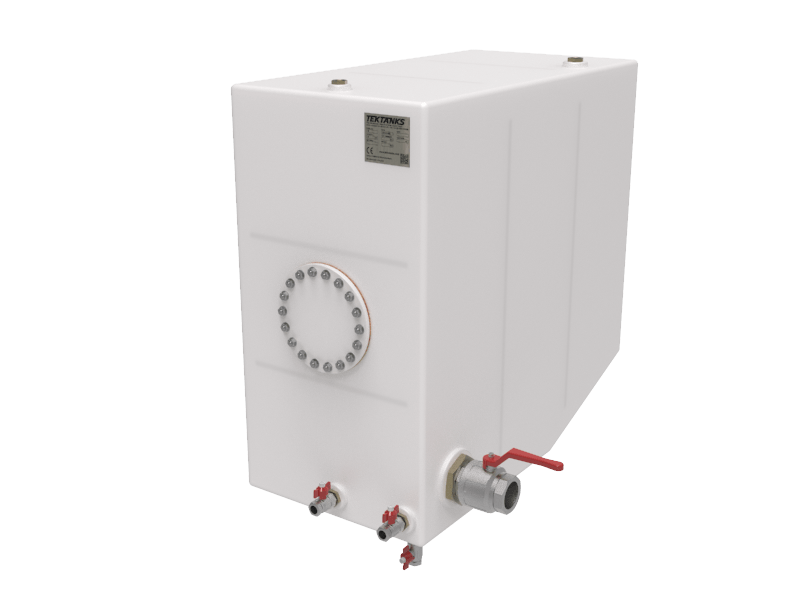

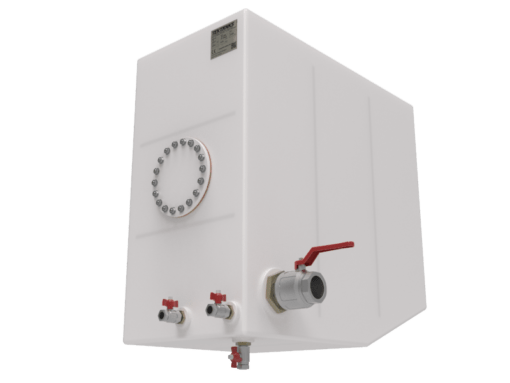

Grand Banks 36 Port Aft Diesel Tank
Replacement Plastic Diesel for Grand Banks 36 Motor Boats.
Manufactured from 10mm thick High-Density Polyethylene.
Overall dimensions (without fittings):
4 x 3/4″ BSP – 1/2″ BSP Brass Reducer
1 x 1/2″ BSP – 3/8″ BSP Brass Reducer
1 x 2 1/2″ BSP – 2″ BSP Brass Reducer
1 x Copper Dip Pipe
2 x 2″ BSP Valve
1 x 200mm Nuts & Bolts Inspection Hatch
Capacity: 228 litres
Position in Boat: Port Aft
Drawings are available at the cost of £75.00 VAT. This cost is refundable if an order is placed for this tank.
Please note the following:
– This tank is subject to a lead time for manufacture. Please get in touch for more information;
– This tank was made to a customer’s design for their boat. Therefore, please check dimensions are correct for your application;
– To comply with the ISO 21487: 2012 CE marking standard, plastic diesel fuel tanks must be separated from the engine compartment with a suitable bulkhead so as to isolate them from the engine.
