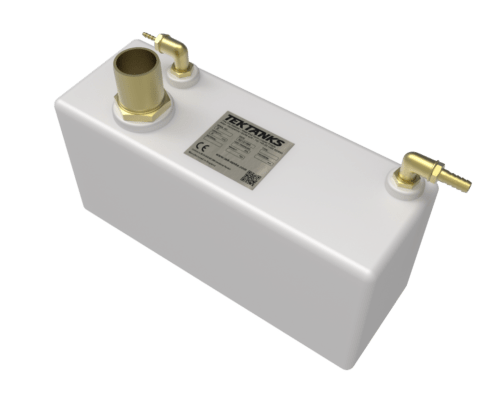

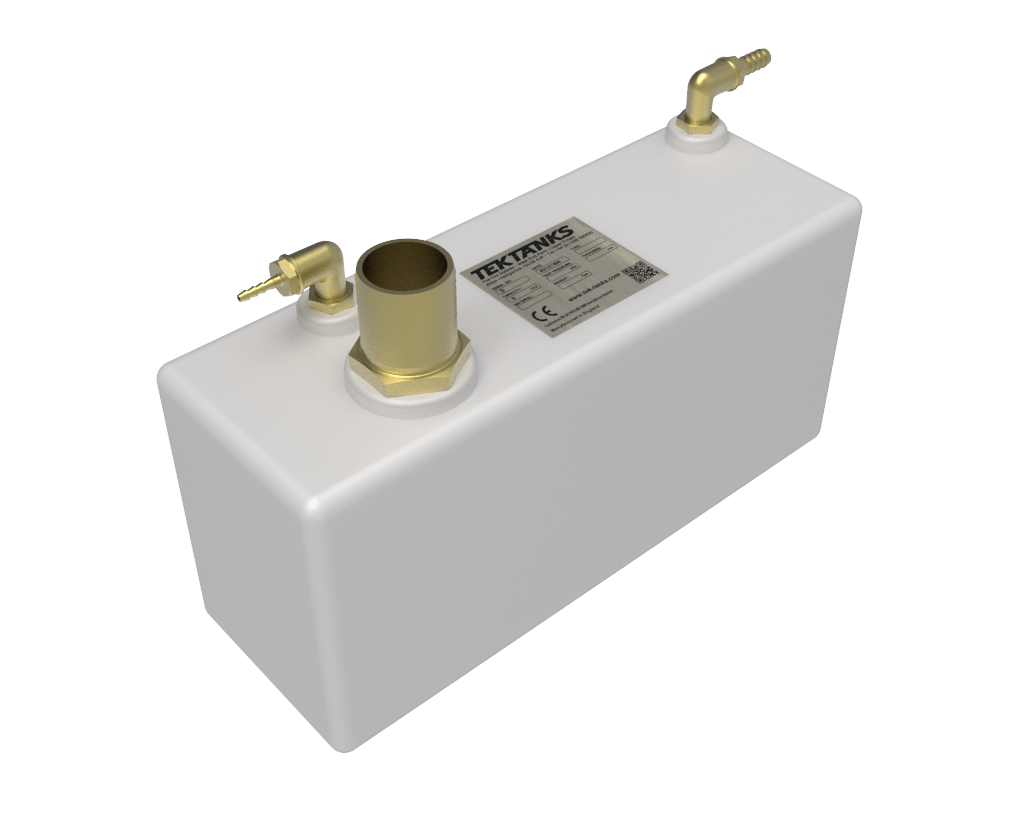

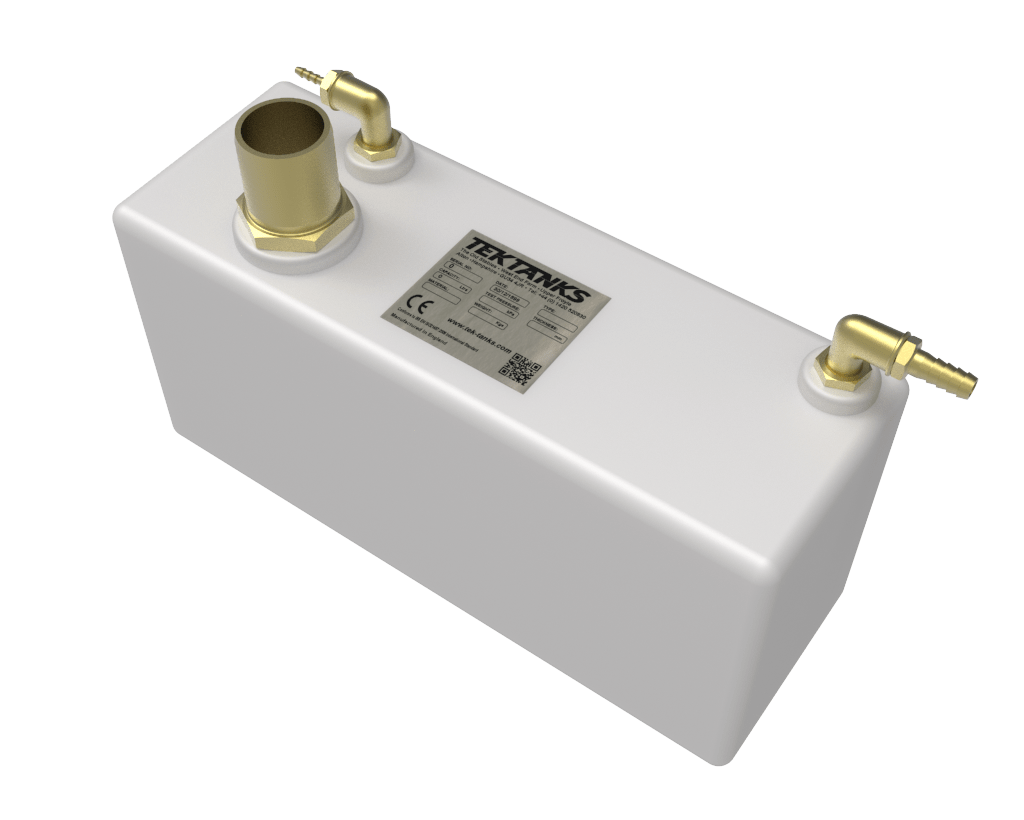

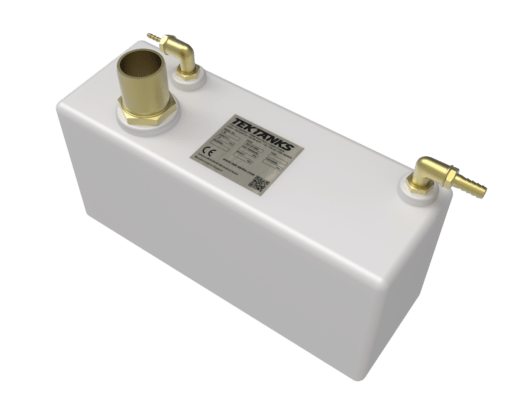

Jeanneau Merry Fisher 855 Diesel Tank

Replacement Diesel Tank for Jeanneau Merry Fisher 855 Motor Boats.

Rotationally Moulded from Medium -Density Polyethylene.

Overall dimensions (without fittings):

Length: 420mm
Width: 150mm
Height: 200mm.

Fittings:

1 x 1/2″ BSP – 13mm Brass Elbow Hosetail
1 x /2″ BSP – 50mm Brass Straight Hosetail
1 x 1/4″ BSP – 6mm Brass Elbow Hosetail
1 x Brass Dip Pipe

Capacity: 9.6 litres

Position in Boat: Starboard

Drawings are available at the cost of £75.00 VAT. This cost is refundable if an order is placed for this tank.

Please note the following:

– This tank is subject to a lead time for manufacture. Please get in touch for more information;
– This tank was made to a customer’s design for their boat. Therefore, please check dimensions are correct for your application;
– To comply with the ISO 21487: 2012 CE marking standard, plastic diesel fuel tanks must be separated from the engine compartment with a suitable bulkhead so as to isolate them from the engine.
