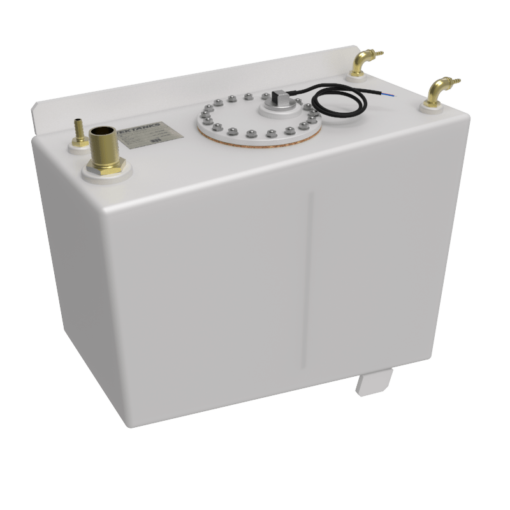

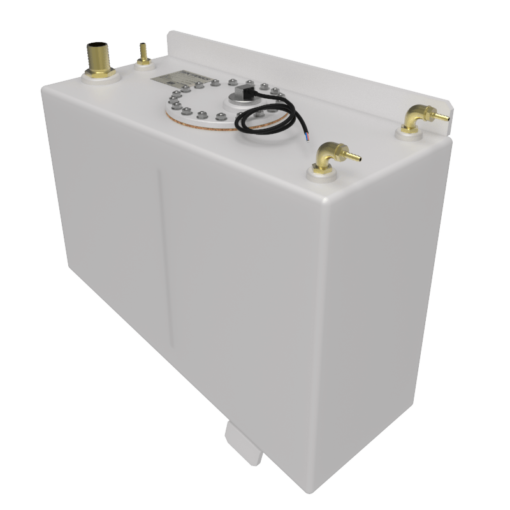

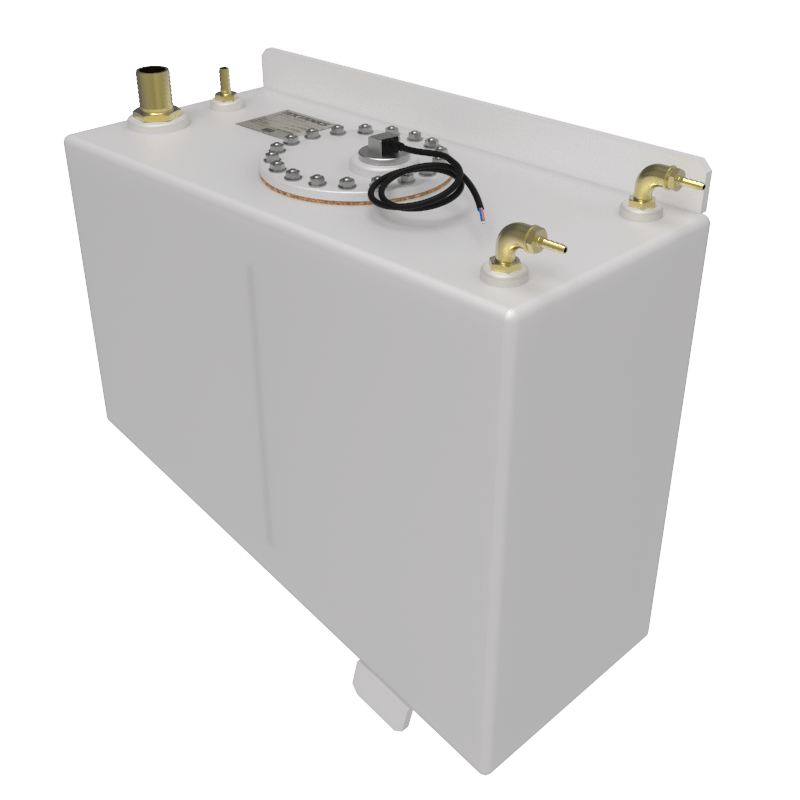

Moody 31 Diesel Tank
Material: 10mm Natural High-Density Polyethylene.
Overall dimensions (without fittings):
1 x 1 1/2″ BSP – 38mm Brass Straight Hosetail
1 x 1/2″ BSP – 13mm Brass Straight Hosetail
2 x 8/16″ BSP – 8mm Brass Elbow Hosetail
1 x Copper Dip Pipe
1 x Wema Fuel Level Indicator
1 x IPFR Wema Fuel Gauge
1 x 200mm Nuts and Bolts Hatch
2 x Undrilled flange
Capacity: 77 litres
Position in Boat: Port Aft
Drawings are available at a cost of £75.00 + VAT This cost is totally refundable if an order is placed for this tank.
Please note, that this tank is subject to a lead time for manufacture. Please get in touch for more information.
To comply with the ISO 21487: 2012 CE marking standard, plastic diesel fuel tanks must be separated from the engine compartment with a suitable bulkhead so as to isolate it from the engine.
Please note: This tank was made to a customer’s design for their individual boat. Please check dimensions are correct for your own application.
