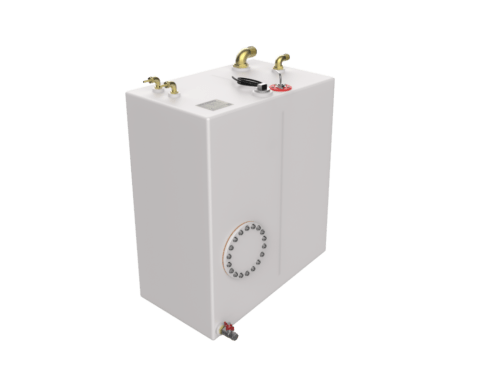

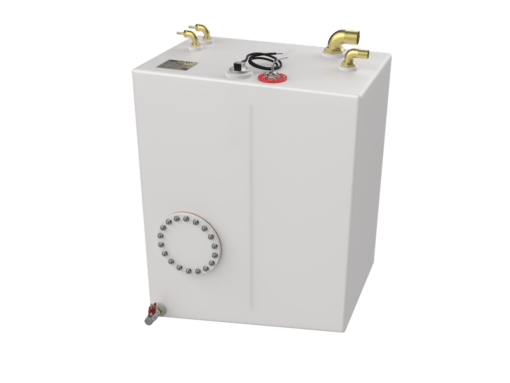

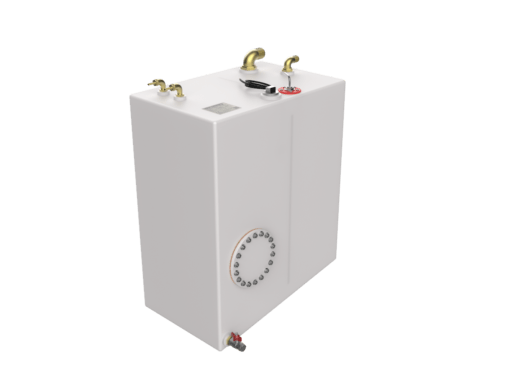

Moody 38 Diesel Tank
Material: 10mm Natural High-Density Polyethylene.
Overall dimensions (without fittings):
1 x 1″ BSP – 25mm Brass Elbow Hosetail
1 x 1 1/2″ BSP – 38mm Brass Straight Hosetail
1 x 1/2″ BSP Valved Plug
2 x Dip Pipe
2 x 5/16″ BSP – 8mm Brass Elbow Hosetail
1 x 1/2″ BSP Plugged Female Socket
1 x Mikuni Heater Feed
1 x Tek-Tanks Nuts & Bolts Inspection Hatch (Ø 200mm)
1 x 1 1/4″ BSP Socket
1 x Wema Fuel Level Indicator
1 x IPFR Wema Fuel Gauge (not shown on the drawing)
Capacity: 164 litres
Position in Boat: Lazarette
Drawings are available at a cost of £75.00 VAT This cost is totally refundable if an order is placed for this tank.
Please note, that this tank is subject to a lead time for manufacture. Please get in touch for more information.
To comply with the ISO 21487: 2012 CE marking standard, plastic diesel fuel tanks must be separated from the engine compartment with a suitable bulkhead so as to isolate them from the engine.
Please note: This tank was made to a customer’s design for their individual boat. Please check dimensions are correct for your own application.
