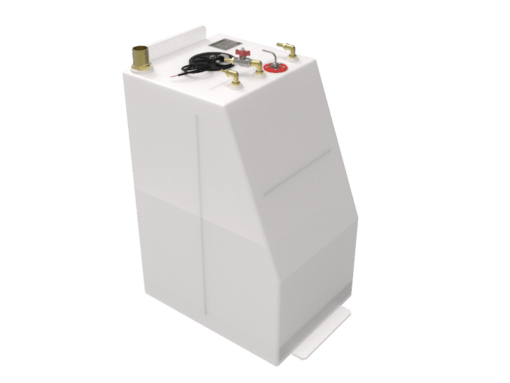

Moody 39 Diesel Tank

Replacement Diesel Tank for Moody 39 Sailing Yachts.

Manufactured in the UK from 10mm thick High-Density Polyethylene.

Overall dimensions (without fittings):

Length: 610mm
Width: 460mm
Height: 865mm

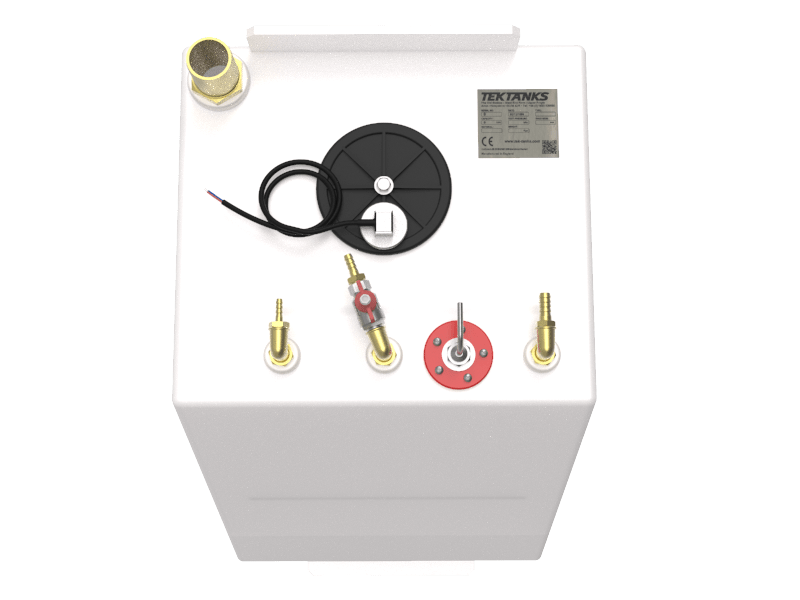

Fittings:

1 x 1 25/32″ BSP – 45mm Brass Straight Hosetail
1 x 3/8″ BSP – 10mm Brass Straight Hosetail
1 x 5/16″ BsP – 8mm Brass Elbow Hosetail
1 x 1/2″ BSP – 13mm Brass Elbow Hosetail
1 x Mikuni Heater Feed
1 x Wema Inspection Hatch (FLB)
1 x Wema Fuel Level Indicator
1 x Analogue Fuel Gauge

Capacity: 193 litres

Position in Boat: Behind Companionway

Drawings are available at the cost of £75.00 VAT. This cost is refundable if an order is placed for this tank.

Please note the following:

– This tank is subject to a lead time for manufacture. Please get in touch for more information;
– This tank was made to a customer’s design for their boat. Therefore, please check dimensions are correct for your application;
– To comply with the ISO 21487: 2012 CE marking standard, plastic diesel fuel tanks must be separated from the engine compartment with a suitable bulkhead so as to isolate them from the engine.
