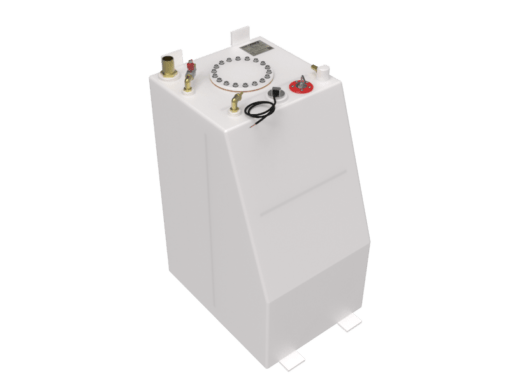

Moody 40 CC Diesel Tank

Replacement Diesel Tank for Moody 40 CC Sailing Yachts.

Manufactured in the UK from 10mm thick High-Density Polyethylene.

Overall dimensions (without fittings):

Length: 610mm
Width: 460mm
Height: 865mm

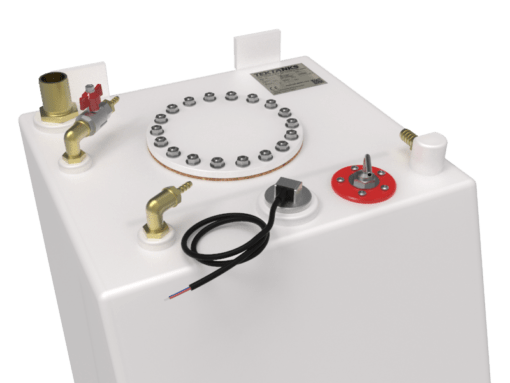

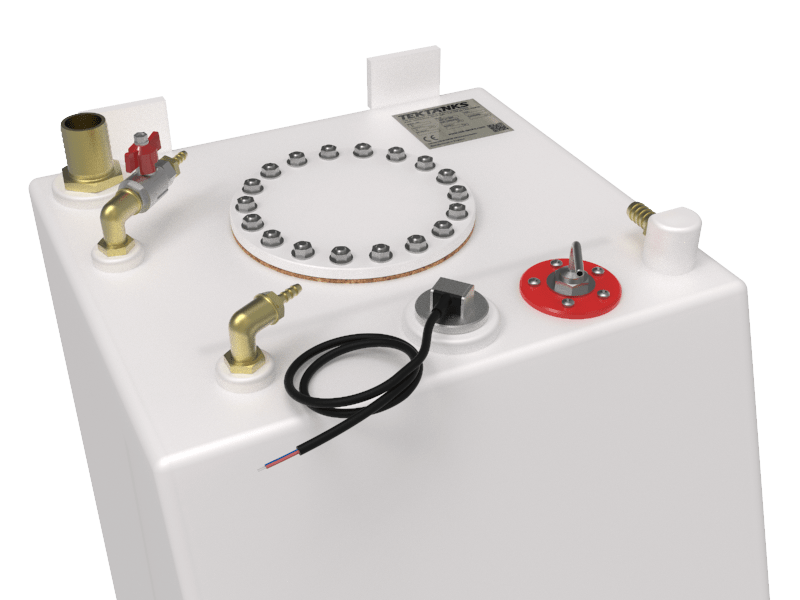

Fittings:

1 x Mikuni Heater Feed
1 x 16mm Fixed Elbow Hosetail
1 x 1/4″ BSP – 6mm Brass Elbow Hosetail
1 x 5/16″ BSP – 8mm Brass Elbow Hosetail (Valved)
2 x Copper Dip Pipe
1 x 1 1/2″ BSP – 38mm  Brass Straight Hosetail
1 x ⌀ 200mm Inspection Hatch (Tek-Tanks Nuts & Bolts Style)
1 x Wema Fuel Level Indicator
1 x Analogue Fuel Gauge

Capacity: 192 litres

Position in Boat: Unknown

Drawings are available at the cost of £75.00 VAT. This cost is refundable if an order is placed for this tank.

Please note the following:

– This tank is subject to a lead time for manufacture. Please get in touch for more information;
– This tank was made to a customer’s design for their boat. Therefore, please check dimensions are correct for your application;
– To comply with the ISO 21487: 2012 CE marking standard, plastic diesel fuel tanks must be separated from the engine compartment with a suitable bulkhead so as to isolate them from the engine.
