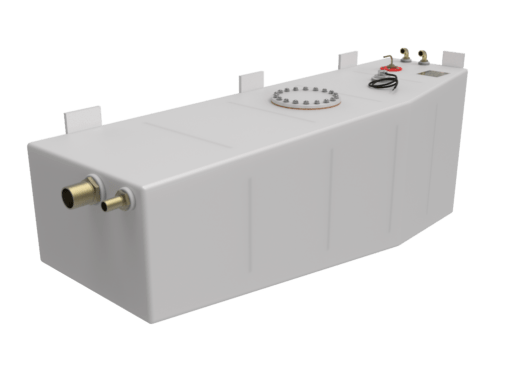

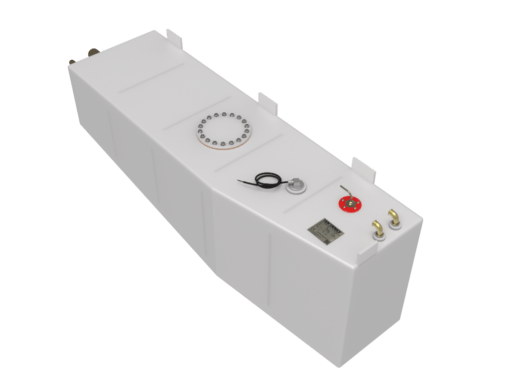

Moody 422 Diesel Tank in Starboard Aft
Material: 10mm Natural High-Density Polyethylene.
Overall dimensions (without fittings):
1 x 2″ BSP – 50mm Brass Straight Hosetail
1 x 1″ BSP – 25mm Brass Straight Hosetail
1 x Copper Dip Pipe
2 x 3/8″ BSP Brass Elbow
1 x 1 1/4″ BSP Socket
1 x Mikuni Heater Feed
1 x Tek-Tanks Nuts & Bolts Inspection Hatch (Ø 200mm)
3 x Undrilled fitting flange
1 x Wema Fuel Tank level Indicator
Capacity: 240 litres
Position in Boat: Starboard Aft
Drawings are available at the cost of £75.00 VAT. This cost is totally refundable if an order is placed for this tank.
Please note that this tank is subject to a lead time for manufacture. Please get in touch for more information.
To comply with the ISO 21487: 2012 CE marking standard, plastic diesel fuel tanks must be separated from the engine compartment with a suitable bulkhead to isolate them from the engine.
Please note: This tank was made to a customer’s design for their individual boat. Please check dimensions are correct for your own application.
