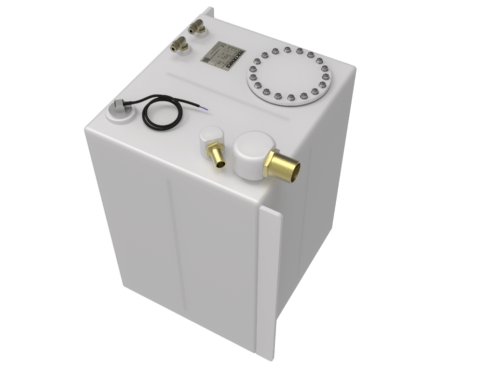

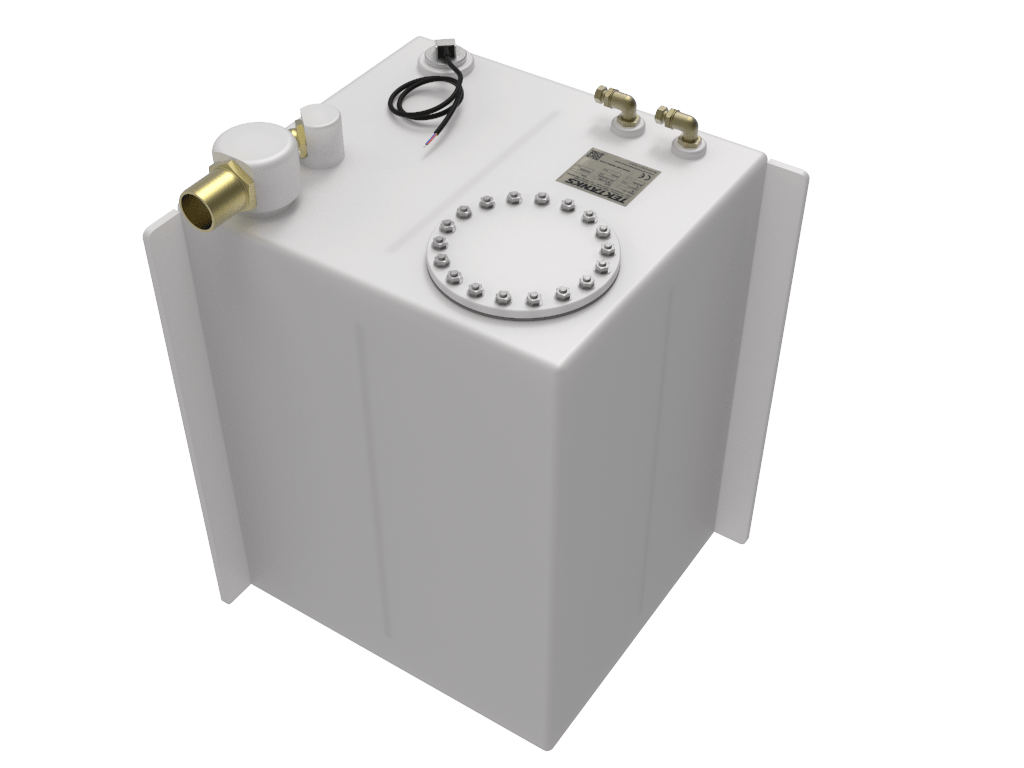

Moody Eclipse 33 Replacement Diesel Tank
Material: 10mm Natural High-Density Polyethylene.
Overall dimensions (without fittings):
1 x 2″ BSP – 50mm Fixed Elbow Filler with Brass Hosetail
1 x 1″ BSP – 25mm Brass Elbow Vent
1 x 5/16″ BSP – 8mm Brass Elbow Hosetail
1 x 5/16″ BSP – 8mm Brass Stright Hosetail
2 x Brass Dip Pipe
1 x 1 1/4″ BSP Socket
1 x Wema Fuel Level Indicator
Analogue Fuel Gauge
1 x 1″ Plug
1 x 200mm Tek-Tanks Custom Hatch Plate
Capacity: 130 litres
Position in Boat: Port Locker
Drawings are available at the cost of £75.00 VAT. This cost is totally refundable if an order is placed for this tank.
Please note the following:
– This tank is subject to a lead time for manufacture. Please get in touch for more information;
– This tank was made to a customer’s design for their boat. Therefore, please check dimensions are correct for your application;
– To comply with the ISO 21487: 2012 CE marking standard, plastic diesel fuel tanks must be separated from the engine compartment with a suitable bulkhead so as to isolate them from the engine.
