Moody Eclipse 38 Diesel Tank

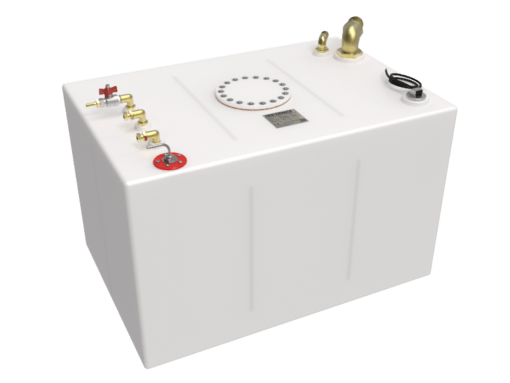

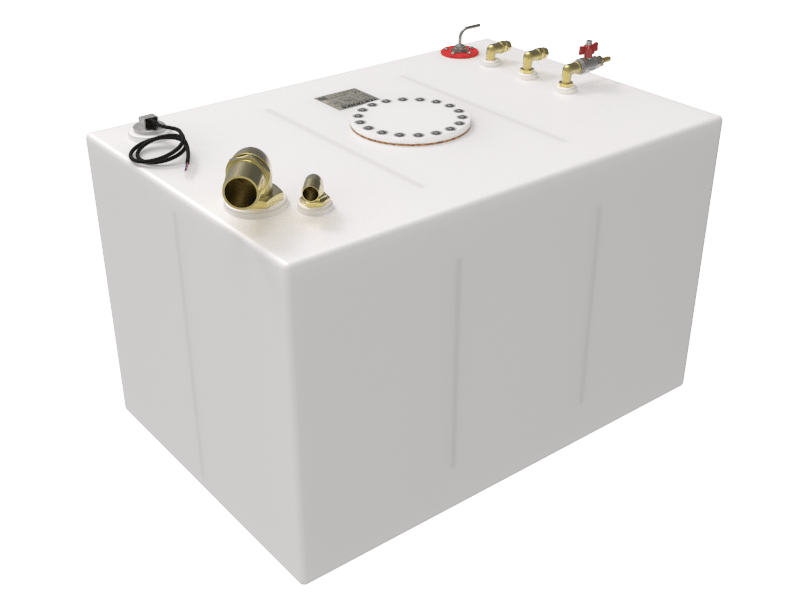

Moody Eclipse 38 Replacement Diesel Tank

Replacement Waste Tank for Moody Eclipse 38 Sailing Yachts.

Manufactured from 10mm thick High-Density Polyethylene.

Overall dimensions (without fittings):

Length: 890mm
Width: 600mm
Height: 550mm

Fittings:

1 x 2″ BSP – 50mm Brass Elbow Hosetail
1 x 1″ BSP – 25mm Brass Elbow Hosetail
3 x 3/8″ BSP – 10mm Brass Elbow Hosetail
2 x Brass Dip Pipe
1 x Low Profile 200mm O.D. Inspection Hatch
1 x 1 1/4″ BSP Female Socket
1 x Fuel Tank Level Indicator

Capacity: 262 litres

Position in Boat: Unknown

Drawings are available at the cost of £75.00 VAT. This cost is totally refundable if an order is placed for this tank.

Please note the following:

– This tank is subject to a lead time for manufacture. Please get in touch for more information;
– This tank was made to a customer’s design for their boat. Therefore, please check dimensions are correct for your application;
– To comply with the ISO 21487: 2012 CE marking standard, plastic diesel fuel tanks must be separated from the engine compartment with a suitable bulkhead so as to isolate them from the engine.
