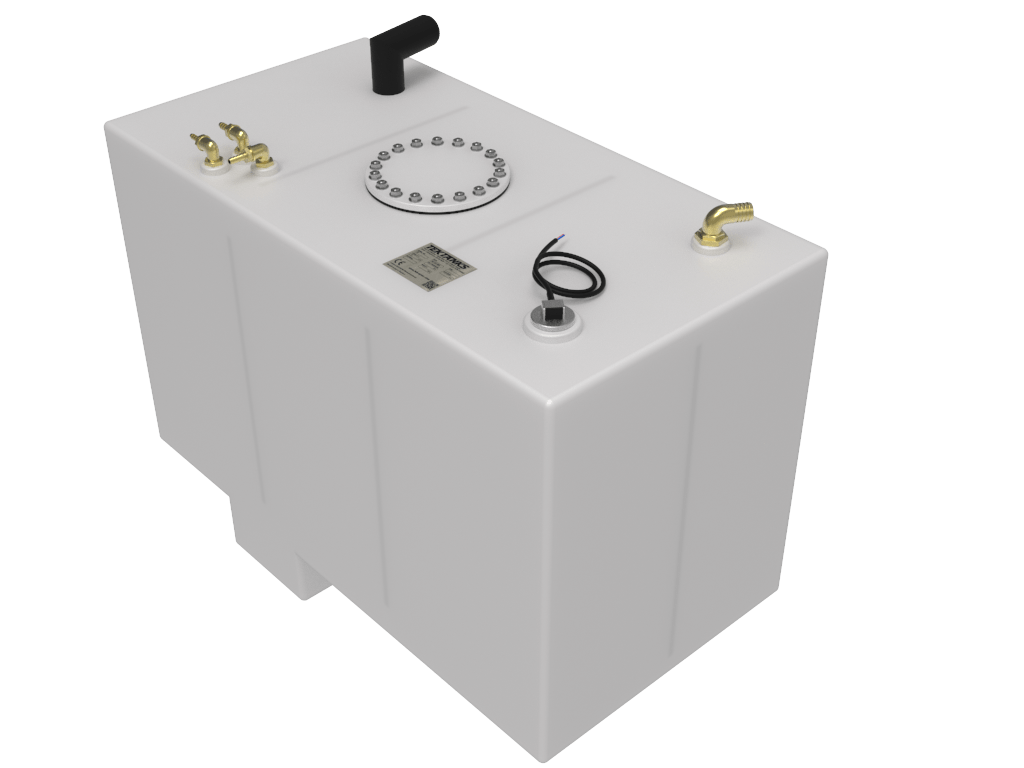

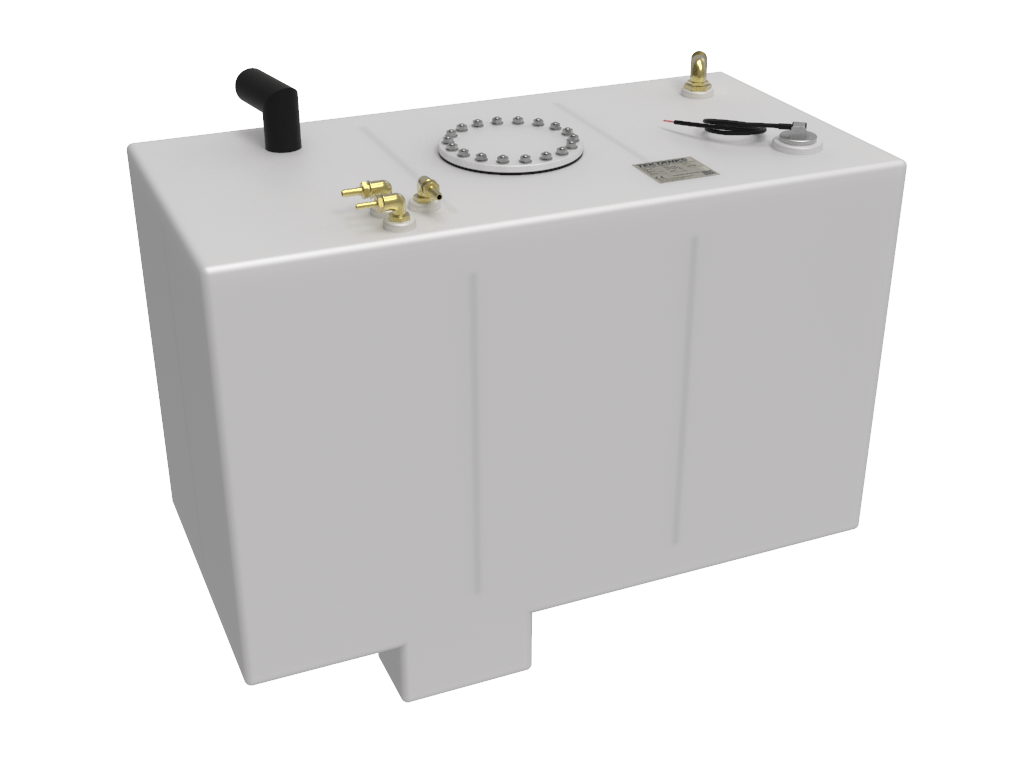

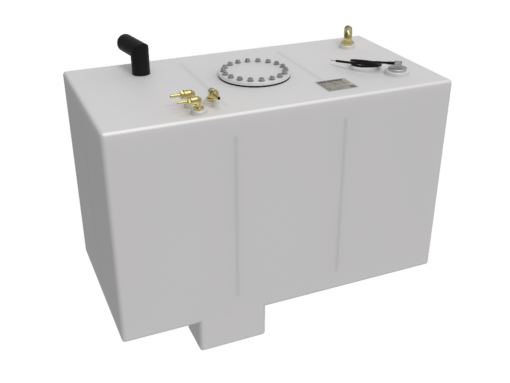

Moody Eclipse 43 Diesel Tank

Moody Eclipse 43 Diesel Tank

Material: 10mm Natural High-Density Polyethylene.

Overall dimensions (without fittings):

Length: 970mm
Width: 500mm
Height: 600mm. Please note that this tank has a sump that adds 100mm to the overall height

Fittings:

1 x 1″ BSP – 25mm Brass Elbow Hosetail
1 x 50mm Fabricated Elbow Hosetail
2 x 3/8″ BSP – 10mm Brass Elbow Hosetail
2 x Brass Dip Pipe
1 x 5/16″ BSP – 8mm Brass Elbow Hosetail
1 x Wema Fuel Level Indicator
Analogue Fuel Gauge
1 x 200mm Tek-Tanks Custom Hatch Plate

Capacity: 260 litres

Position in Boat: Unknown

Drawings are available at the cost of £75.00 VAT. This cost is totally refundable if an order is placed for this tank.

Please note the following:

– This tank is subject to a lead time for manufacture. Please get in touch for more information;
– This tank was made to a customer’s design for their boat. Therefore, please check dimensions are correct for your application;
– To comply with the ISO 21487: 2012 CE marking standard, plastic diesel fuel tanks must be separated from the engine compartment with a suitable bulkhead so as to isolate them from the engine.
