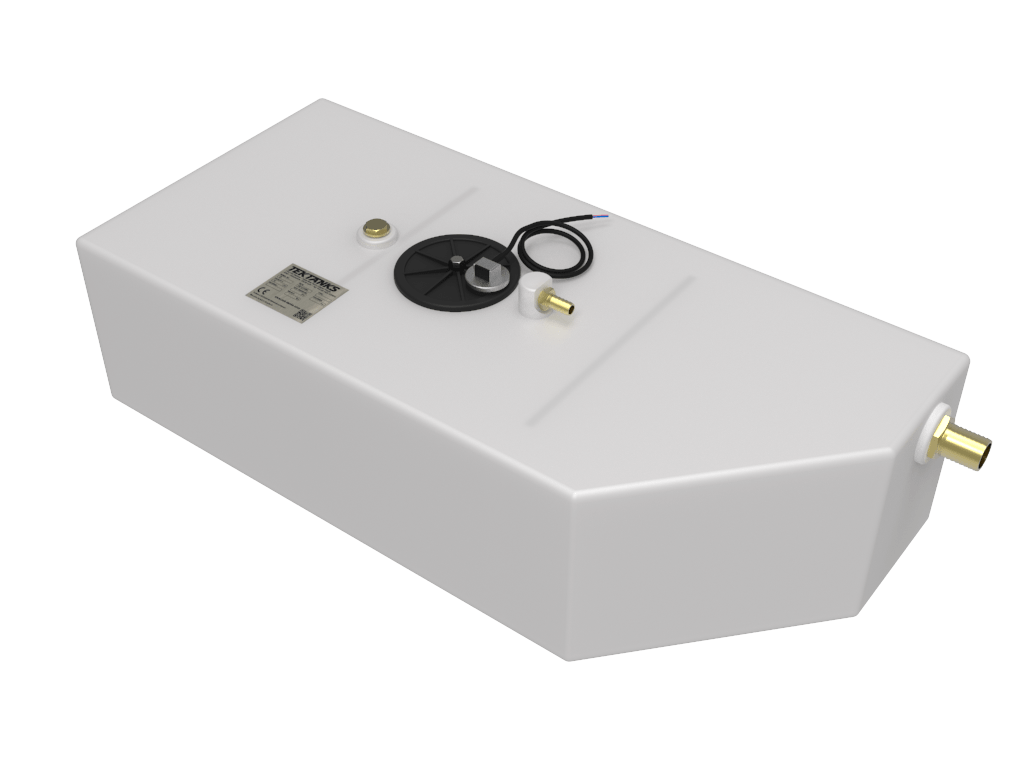

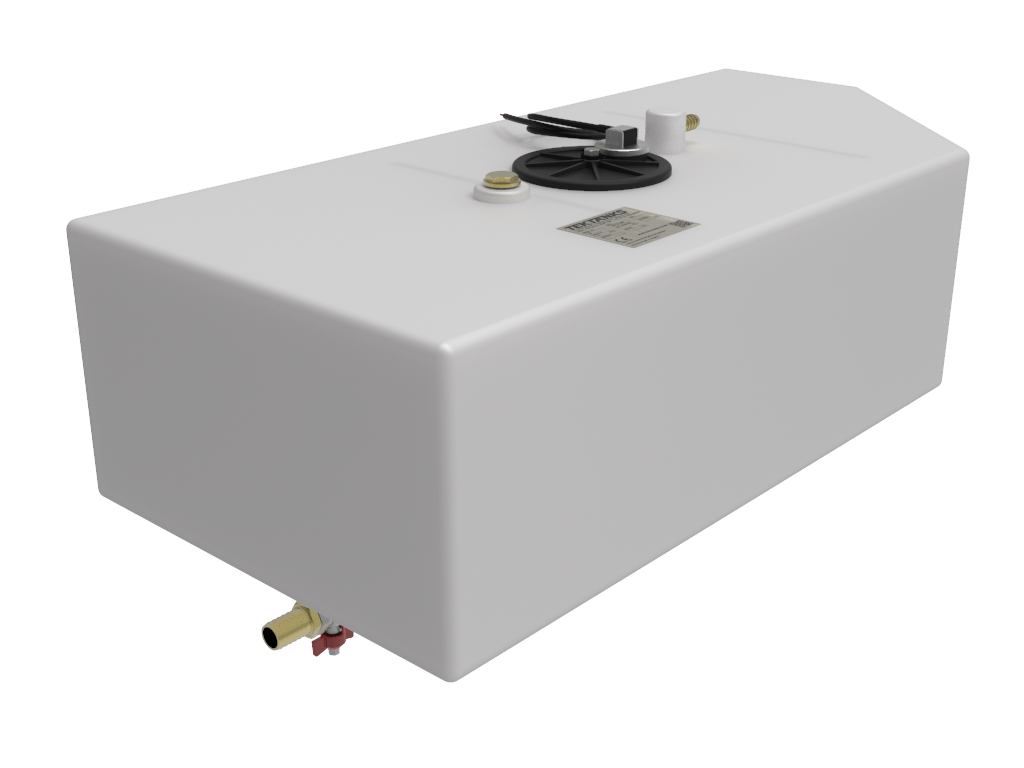

Nimbus 340 Diesel Tank

Replacement Plastic Diesel Tank for Nimbus 340 Motor Boats.

Manufactured from 10mm thick High-Density Polyethylene.

Overall dimensions (without fittings):

Length: 975mm
Width: 450mm
Height: 260mm

Fittings:

1 x 1 1/2″ BSP – 38mm Brass Straight Hosetail
1 x 1″ BSP – 25mm Elbow Brass Hosetail (valved)
1 x 16mm Fixed Brass Elbow Hosetail
1 x Standard Wema Inspection Hatch
1 x Wema Fuel Level Indicator
1 x Wema Analogue Fuel Gauge

Capacity: 90 litres

Position in Boat: Upper Midship

Drawings are available at the cost of £75.00 VAT. This cost is refundable if an order is placed for this tank.

Please note the following:

– This tank is subject to a lead time for manufacture. Please get in touch for more information;
– This tank was made to a customer’s design for their boat. Therefore, please check dimensions are correct for your application;
– To comply with the ISO 21487: 2012 CE marking standard, plastic diesel fuel tanks must be separated from the engine compartment with a suitable bulkhead so as to isolate them from the engine.
