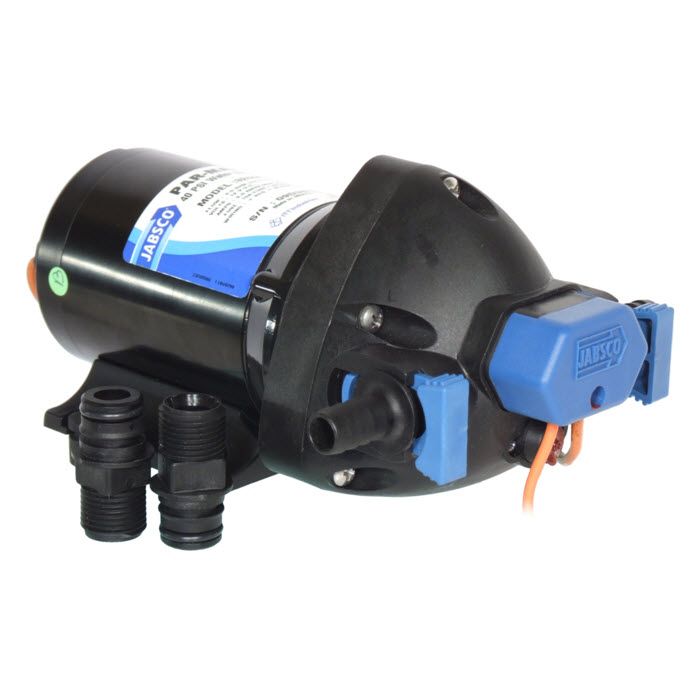

Par Max 3.5 Diaphragm Pump

£135.60 – £153.60

Par Max 3.5 pressure controlled pump.

Connections: for 13mm (½”) bore hose or Hep20 push-fit connectors CW193
Dimensions: 220mm long, 105mm wide, 113mm high
Fuse Size: 12 volt – 15(amp) / 24 volt 7(amp)
Output: 13 litres/minute (2.9 gallons/minute) open flow
Weight: 2.5(kgs)
Pressure Switch: – cuts in at 0.7bar (10psi) – cuts out at 1.7bar (25psi)
Efficient, high-flow, self-priming pump serving 4 or more outlets
Multi-diaphragm design self primes to 1.5m vertical lift, can run dry without damage
Supplied with snap-in ports for hose or Hep20 connectors
Motor protected by automatic thermal overload cut-out

Weight	3.5 kg
Voltage	12 Volts, 24 Volts
