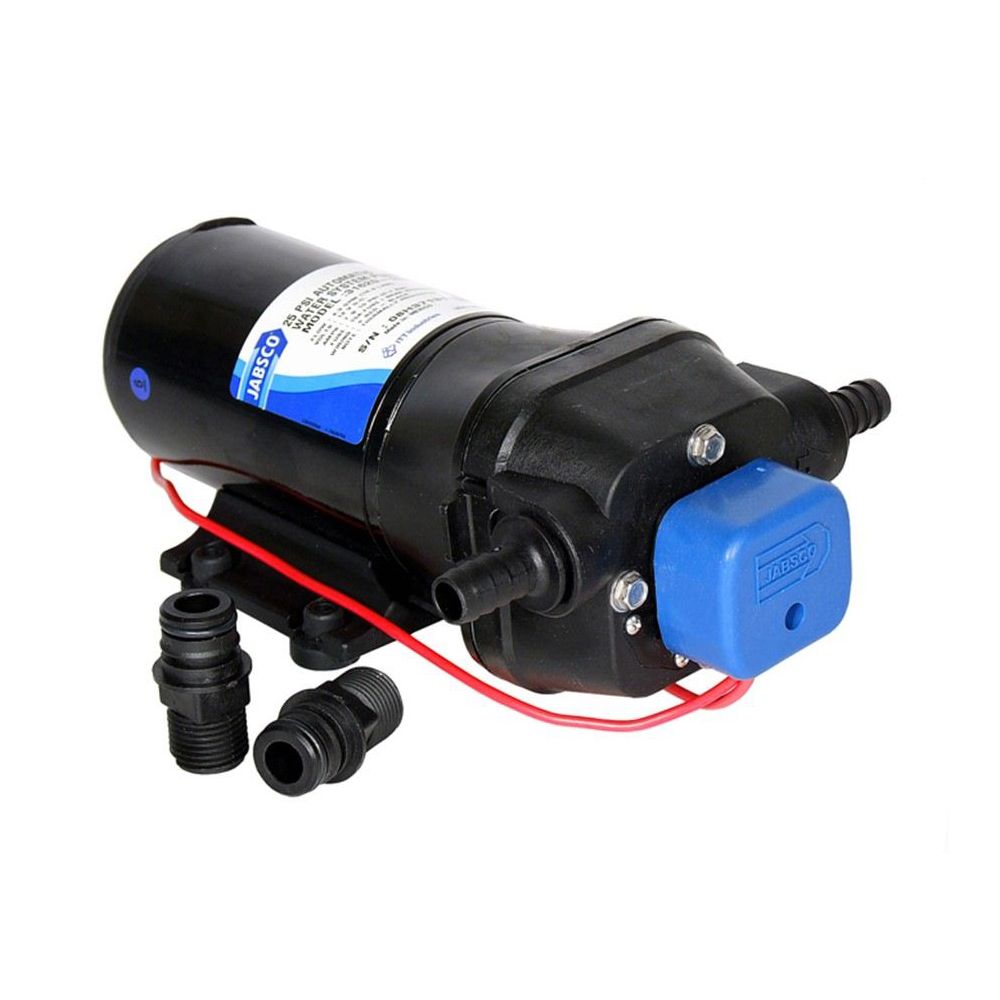

Par Max 4 Diaphragm Pump (Standard Pressure)

• Connections: for 13mm (½”) bore hose or Hep20 push-fit connectors CW193
• Dimensions: 250mm long, 105mm wide, 100mm high
• Fuse Size: 12 volt – 15(amp) / 24 volt – 7(amp)
• Output: 16 litres/minute (3.5 gallons/minute) open flow
• Pressure Switch: – cuts in at 0.7bar (10psi) – cuts out at 1.7bar (25psi)
• Efficient, high-flow, self-priming pump serving 4 or more outlets
• Multi-diaphragm design self primes to 1.5m vertical lift, can run dry without damage
• Supplied with snap-in ports for hose or Hep20 connectors
• Motor protected by automatic thermal overload cut-out

A high pressure version of this pump is also available. Please phone for more details.
