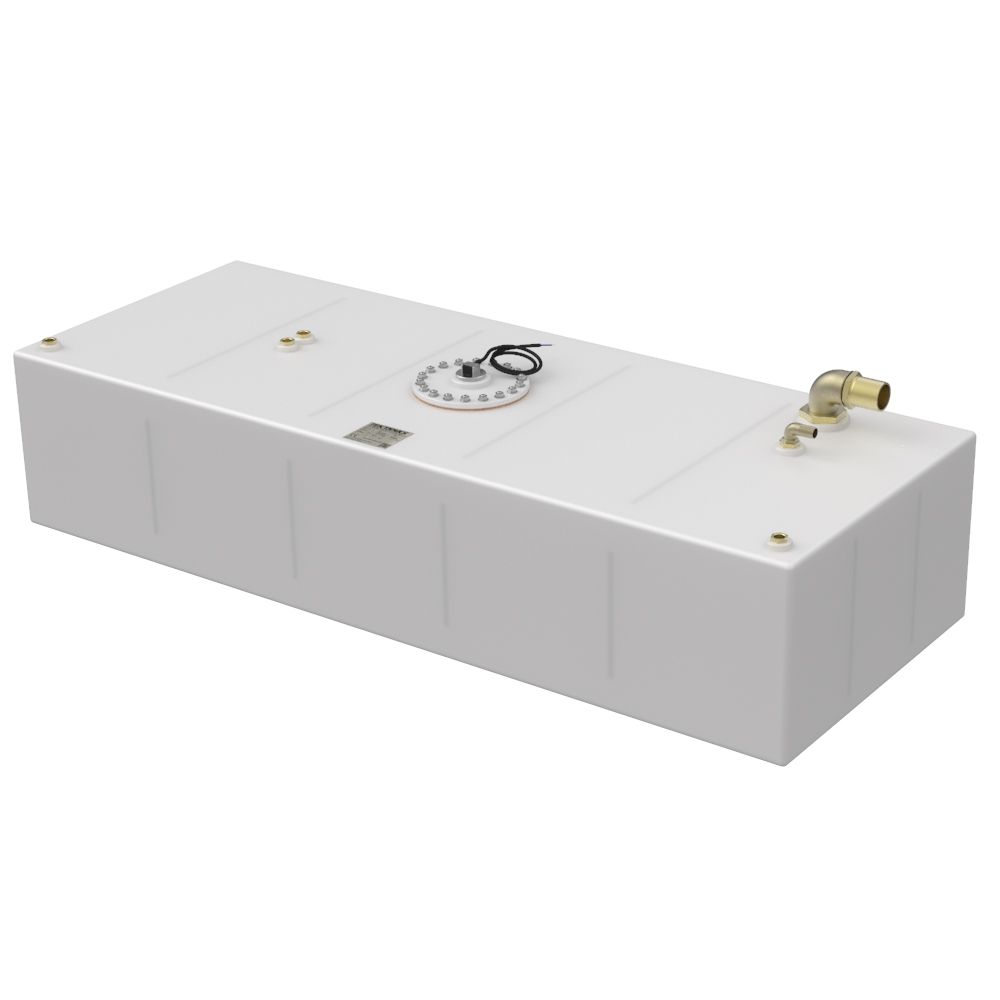

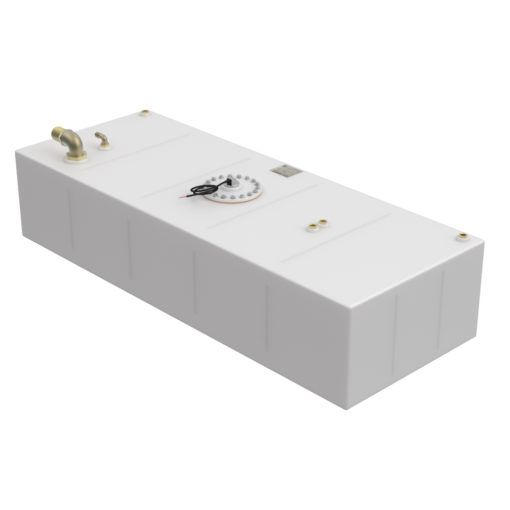

Sealine S37 Port Diesel Tank

Sealine S37 Port Diesel Tank

Material: 10mm Natural High-Density Polyethylene.

Overall dimensions (without fittings):

Length: 1600mm
Width: 610mm
Height: 340mm.

Fittings:

1 x 2″ BSP – 50mm Brass Elbow Hosetail
4 x 1/2″-3/8″ BSP Reducer Assembly
2 x Copper Dip Pipe
1 x 3/4″ BSP – 19mm Brass Elbow Hosetail
1 x Wema Fuel Level Indicator
Analogue Fuel Gauge
1 x 200mm Tek-Tanks Custom Hatch Plate

Capacity: 275 litres

Position in Boat: Port Side

Drawings are available at the cost of £75.00 VAT. This cost is totally refundable if an order is placed for this tank.

Please note the following:

– This tank is subject to a lead time for manufacture. Please get in touch for more information;
– This tank was made to a customer’s design for their boat. Therefore, please check dimensions are correct for your application;
– To comply with the ISO 21487: 2012 CE marking standard, plastic diesel fuel tanks must be separated from the engine compartment with a suitable bulkhead so as to isolate them from the engine.
