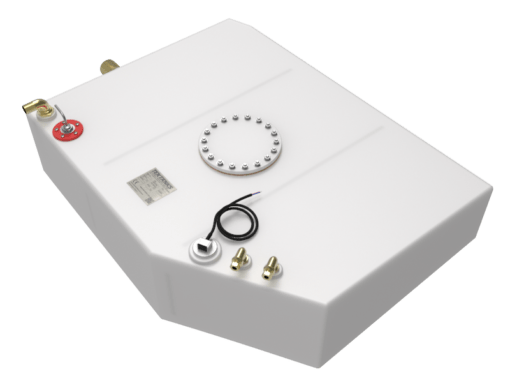

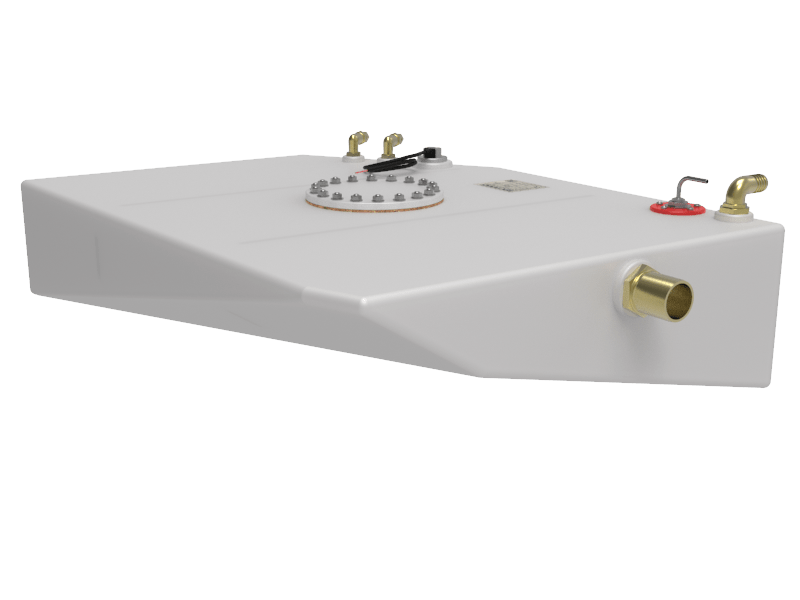

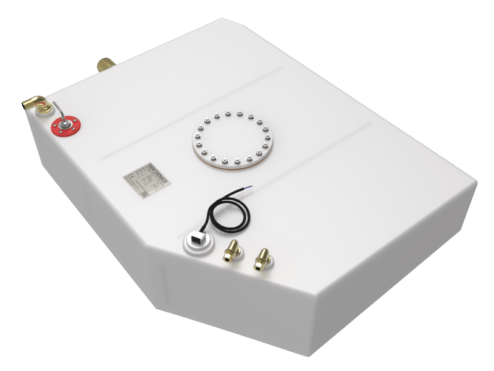

Sigma 362 Diesel Tank

Replacement Diesel Plastic Tank for Sigma 362 Sailing Yachts.

Manufactured from 10mm thick High-Density Polyethylene.

Overall dimensions (without fittings):

Length: 920mm
Width: 727mm
Height: 260mm

Fittings:

1 x 2″ BSP – 50mm Brass Straight Hosetail
1 x Tek-Tanks Custom Nuts & Bolts Inspection hatch (200mm O.D.)
1 x 1″ BSP- 25mm Brass Elbow Hosetail
1 x 1 1/4″ BSP Socket
1 x Fuel Tank Wema Level Indicator
1 x Analogue Fuel Gauge
1 x Mikuni Heater Feed
2 x 3/8″BSP – 10mm Compression Stud Elbow
1 x Copper Dip Pipe

Capacity: 97 litres

Position in Boat: Unknown

Drawings are available at the cost of £75.00 VAT. This cost is refundable if an order is placed for this tank.

Please note the following:

– This tank is subject to a lead time for manufacture. Please get in touch for more information;
– This tank was made to a customer’s design for their boat. Therefore, please check dimensions are correct for your application;
– To comply with the ISO 21487: 2012 CE marking standard, plastic diesel fuel tanks must be separated from the engine compartment with a suitable bulkhead so as to isolate them from the engine.
