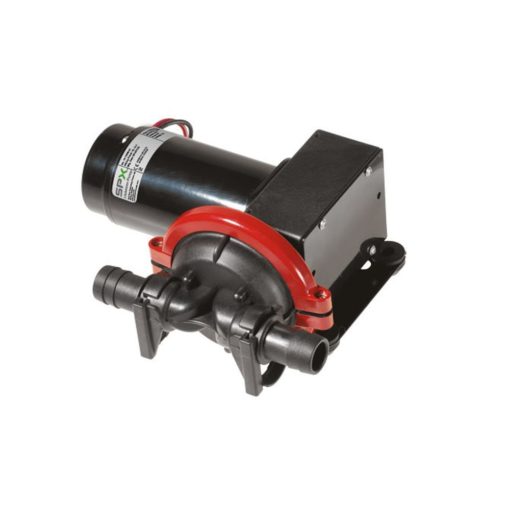

An ultra-modern, single-chamber, self-priming diaphragm pump that can be set up in several different pump/motor configurations. It is easy to install anywhere after the drain outlet in the wastewater system or as a bilge pump in any leisure craft – new or used.



Technical Specifications
Capacity: 16 LPM (4.2GPM) open flow (15LPM at 0.1 bar)
Max. head: 3m (9.8ft)
Max. lift: 3m (9.8ft)
Max. head and lift: 4m (13.1ft)
Dimensions: 186mm long x 235/181mm wide x 118/204mm high
Connections: KlickTite connectors for 1″ hose or 3/4″ hose and 1/2″ BSP threads; straight and 90º (optional)
Weight: 2.6kg (5.7 pounds)
Motor: 2.3 Amp (12V), 1.2 Amp (24V) at 0.1 bar 12/24V DC (with built-in thermal protection)
Body: Nylon, glass-fibre reinforced
Valves: Nitrile rubber
Diaphragm: Reinforced nitrile rubber

Viking Power 16 Additional Features:
• Specifically designed to pump wastewater
• Easy to install, even in tight spaces
• Easy, low cost maintenance
• Non-choke valves – no filters required
• Self-priming up to 3m (9.8ft)
• KlickTite connectors standard
• Low power consumption

Perfect for installation in tight spaces, the Viking Power 16 shower drain pump can be incorporated into a small boat wastewater system in several different pump/motor configurations. Compact, robust and adaptable, this pump can be mounted virtually anywhere on board. The Viking Power 16 has KlickTite connectors fitted as standard, literally making hose connections a snap!

Grey Water Tank for this pump can be found here.

Additional information


12 Volts, 24 Volts
