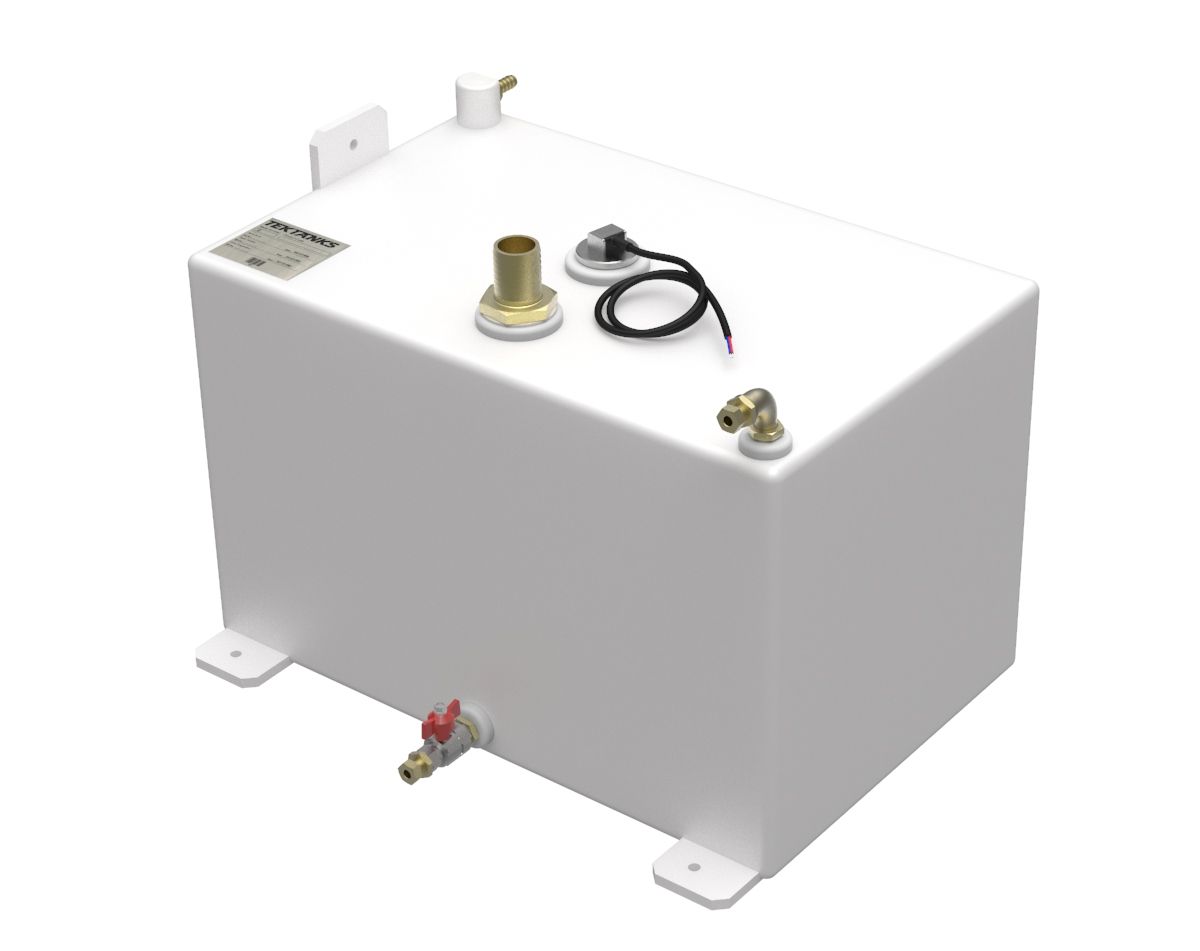

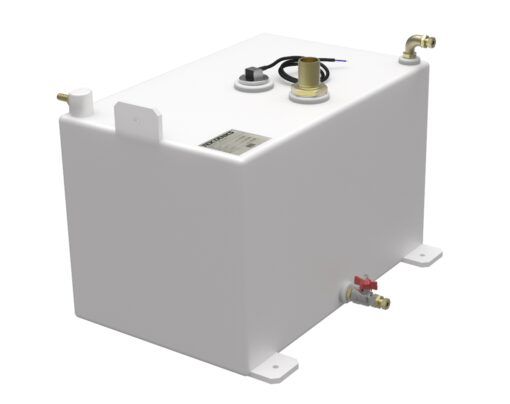

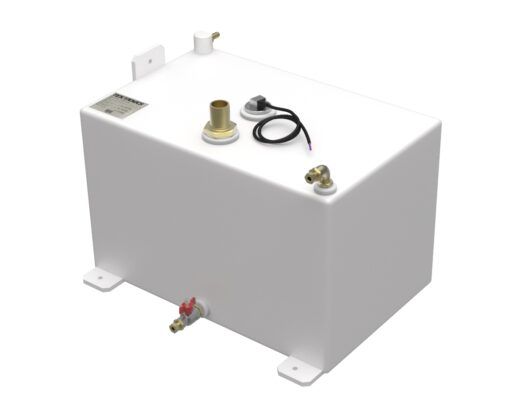

Westerly Fulmar Diesel Tank

Replacement Diesel Tank for Westerly Fulmar Sailing Yachts.

Rotationally Moulded from 10mm Thick Medium Density Polyethylene.

Overall dimensions (without fittings):

Length: 600mm
Width: 380mm
Height: 380mm

Fittings:

1 x 1 1/2″ BSP – 38mm Brass Straight Hosetail
1 x 13mm Fixed Elbow Brass Hosetail
1 x 5/16″ BSP – 8mm Compression Stud on Brass Elbow Hosetail
1 x 5/16″ BSP – 8mm Compression Stud on Brass Straight Hosetail (Valved)
1 x Brass Dip Pipe
1 x FLB Wema Inspection Hatch
1 x 1 1/4″ BSP Female Socket
1 x Fuel Tank Level Indicator
1 x IPFR Wema Analogue Fuel Level Gauge
3 x Fixing Flanges (supplied undrilled)

Capacity: 76 litres

Position in Boat: Unknown

Drawings are available at the cost of £75.00 VAT. This cost is totally refundable if an order is placed for this tank.

Please note the following:

– This tank is subject to a lead time for manufacture. Please get in touch for more information;
– This tank was made to a customer’s design for their boat. Therefore, please check dimensions are correct for your application;
– To comply with the ISO 21487: 2012 CE marking standard, plastic diesel fuel tanks must be separated from the engine compartment with a suitable bulkhead so as to isolate them from the engine.
