1000 litre plastic tank exclusive to Tek Tanks, built to our high quality specifications.
Scroll down and take an interactive tour of this tank.

Series A Tank Document Downloads

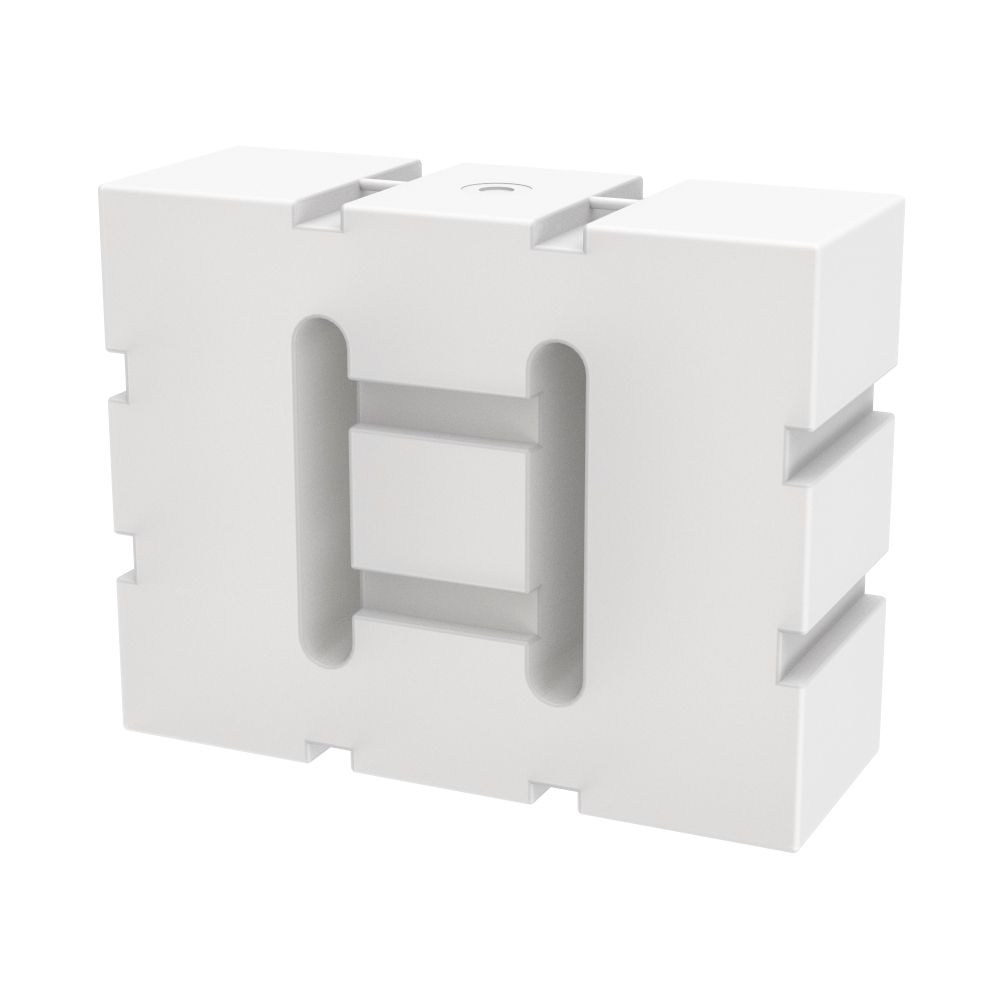

1000 Litre Series A Large Baffled Tank


Volume [litres] :               1000
Dimensions [mm]:         Length: 1590; Width: 1240; Height: 590.

Suitability:                         Fresh Water, Grey Water, Black Water, Diesel, not suitable for Petrol
Material:                            Medium Density Polyethylene (MDPE)
Wall thickness [mm]:    10
Colour:                               Natural; (Black available at extra cost, subject to a lead time)
Lead time:                         7-10 workings days (with Tek Tank fittings*), 1-2 working days (without fittings)
Orientation:                      Can be orientated in any position
Warranty:                          5 years

* Please click here to choose from extensive range of Tek Tank fittings suitable for this tank.
To see all of the fittings at a glance, please download the Fittings Guide from the product documents box above. If the fitting you require is not shown, then please give us a call to discuss your requirements.

Download your chosen tank drawing, mark on the drawing your fitting locations. Identify the fittings that you require by clicking on the fittings link here.
Be aware that unless stated our fittings are welded into the tanks and are not available to be retrofitted. Add the fittings part numbers to the drawing… View a sample drawing here.
Email your completed drawing to us and we will be in touch.

Black & Grey Waste
The tanks 10mm wall thickness ensures that holding waste odours are contained within the tank, not so with thinner walled cheaper tanks.

Tek Tanks quality food grade plastic ensures that you will never experience any plastic taste to the water.

Diesel Fuel
The thermal properties of a Tek Tank almost eradicates the build-up of condensation limiting the possibility of water in the fuel.

3D Interactive Model

These tanks are not suitable as the main supply to a vehicles engine in automotive applications. These tanks must be positioned outside of an engine compartment of a boat and away from other heat sources. The tanks should be situated in a well ventilated area.

Additional information

Weight67 kg
