    The Model G/LL63 series vertical spiral gauge is a mechanically operated liquid level gauge.

    Clear

    Documentation

    Spiral Contents Gauge

    Description

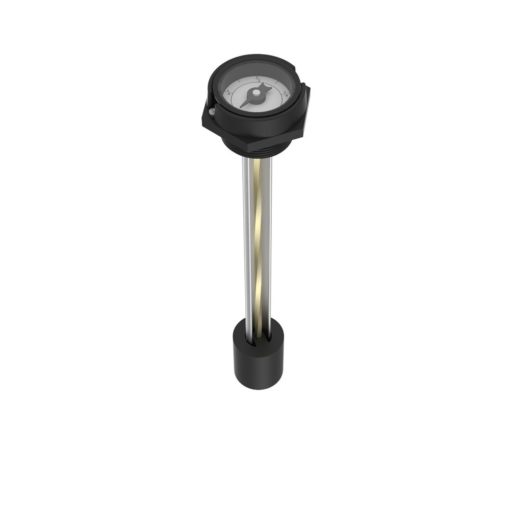

    The Model G/LL63 series vertical spiral gauge is a mechanically operated liquid level gauge suitable for use with fuels, oils and water.
    The gauge is mounted vertically from the top of the tank so as the liquid level changes the float follows that change and uses a magnetic coupling to transfer that motion from the float to the level indicator dial.
    The gauge is completely sealed so there is no risk of the tanks contents leaking through the gauge header.
    Should the gauge become damaged then it can be replaced simply by removing 2 screws.
    Screws into an 1 1/2″ BSP Thread.
    Lengths over 600mm are not a stock item. Please call for current leadtime on these lengths.

    The Tek-Tanks Fitting Flange can be found here.

    Additional information

    Weight1 kg
    Length (mm)

    200, 250, 300, 350, 400, 450, 500, 550, 600, 650, 700, 750, 800, 850, 900, 950, 1000
