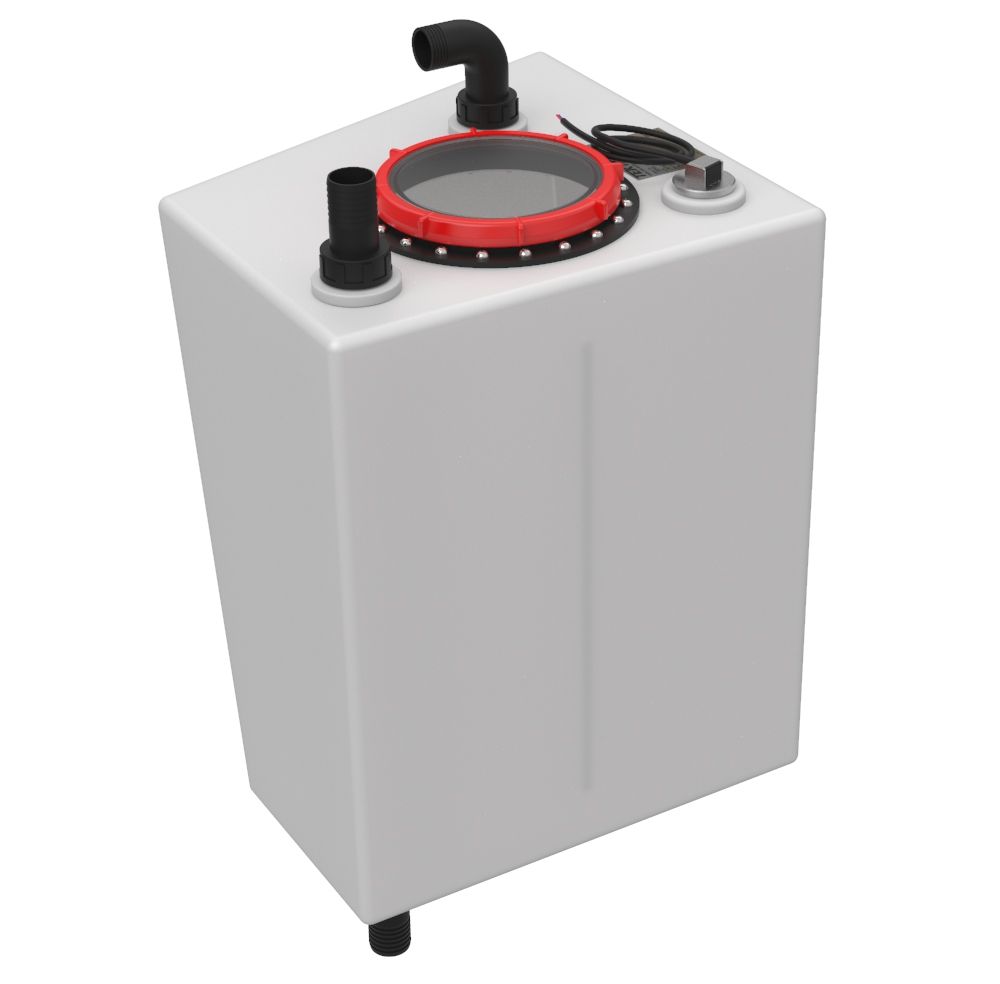

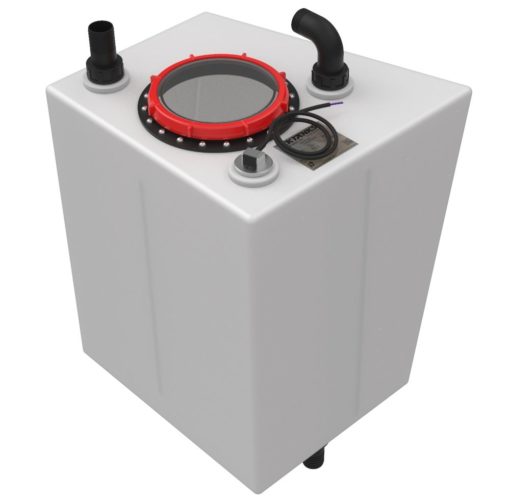

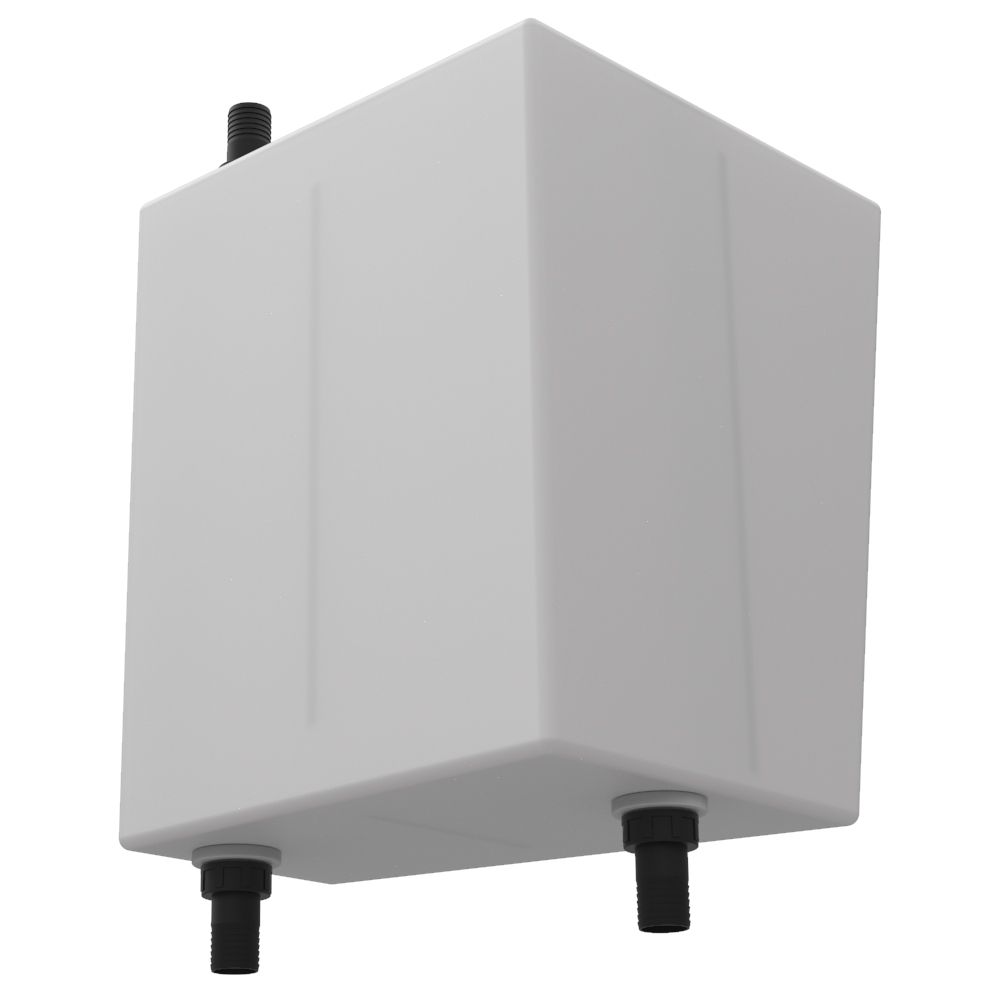

Heard 28 Waste Tank

Heard 28 Waste Tank manufactured from 10mm Thick High Density Polyethylene.

Overall dimensions without fittings:

Length: 457mm
Width: 327mm
Height: 558mm

Fittings:
1 x 1 1/2″ BSP -38mm Plastic Straight Hosetail
1 x 1 1/2″ BSP -38mm Plastic Elbow Hosetail
2 x  1 1/2″ BSP -38mm Plastic Straight Hosetail with Dip Pipe
1 x  1 1/2″ BSP -38mm Plastic Straight Hosetail
S3H Waste Level Indicator & Analogue HTG-G Gauge
TCL4 Clear Inspection Hatch

Capacity: 74Litres

Position in boat: Heads Compartment

Drawings are available at a cost of £75.00 + VAT This cost is totally refundable if an order is placed for this tank. Please call for more information.

Please note: This tank was made to a customer’s design for their individual boat. Please check dimensions are correct for your own application.
