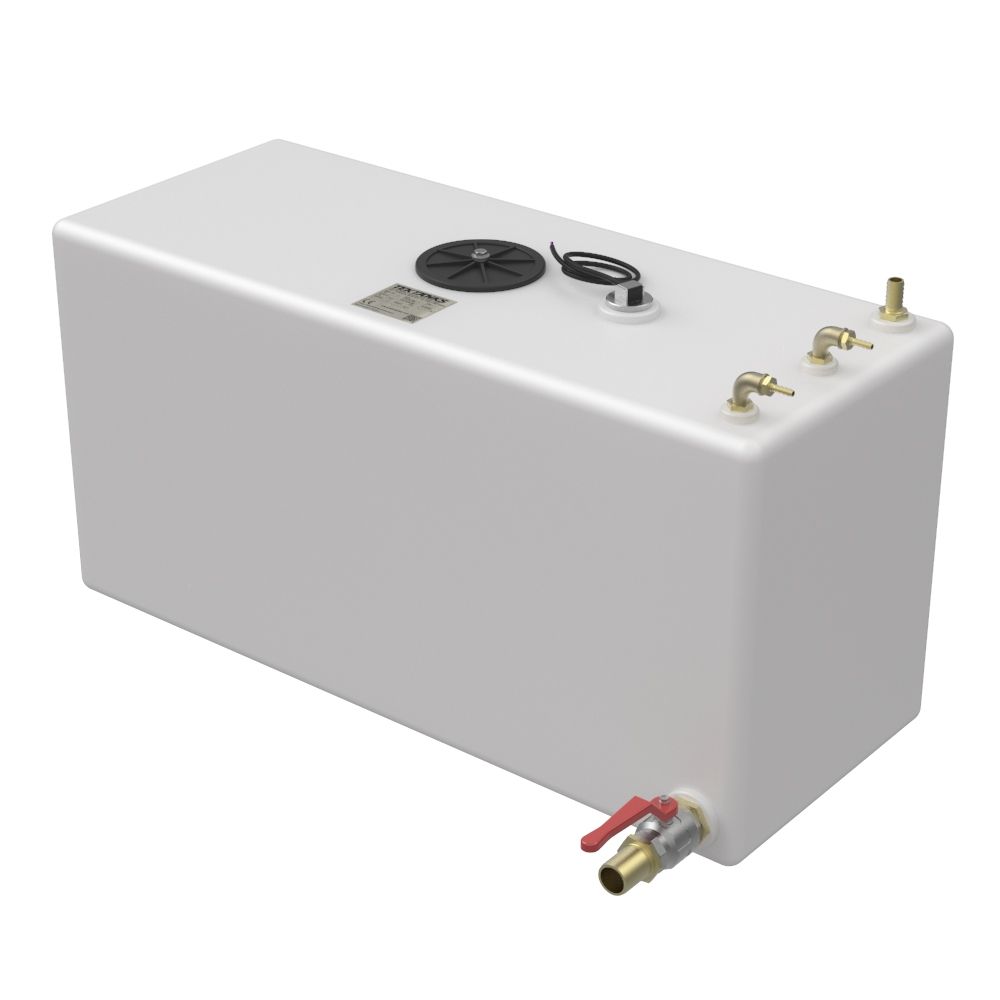

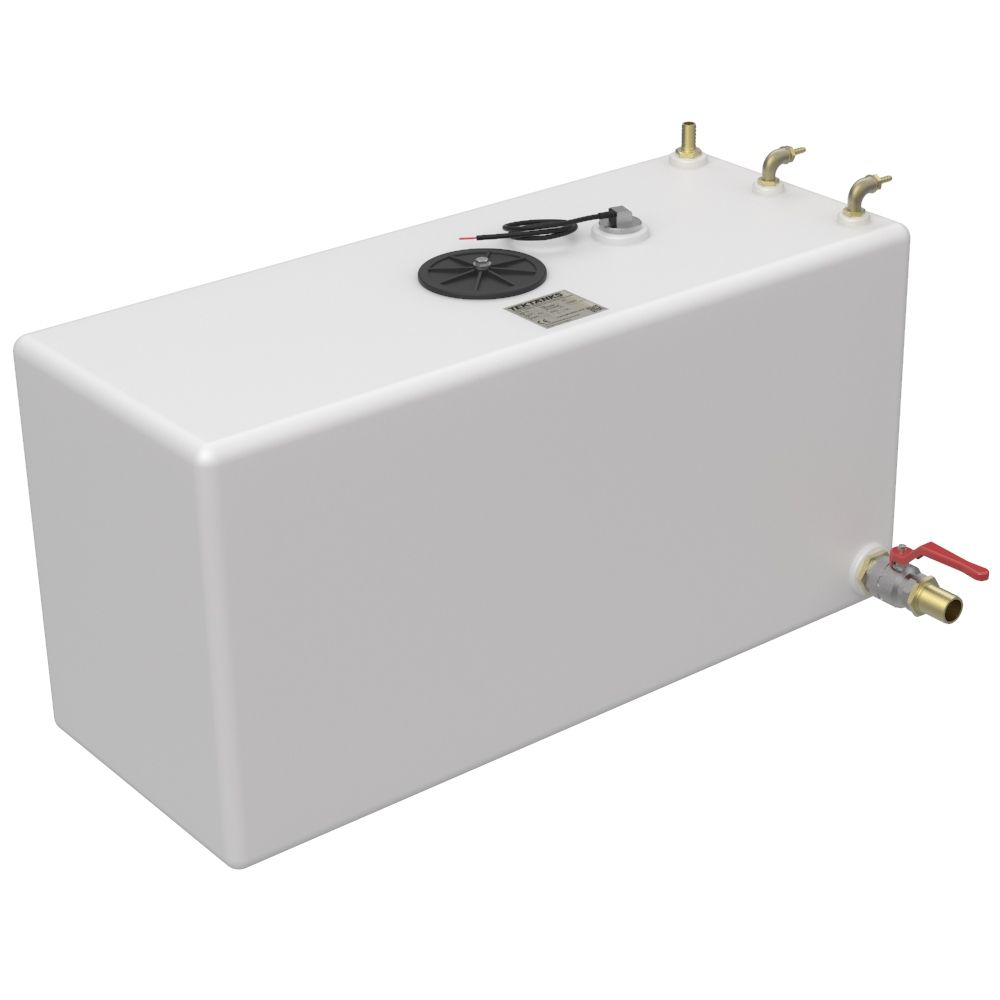

Kent 35 Port Diesel Tank
Rotationally Moulded from Medium -Density Polyethylene, replacement Diesel Tank for Kent 35 Motor Boats.
Overall dimensions (without fittings):
2 x 3/8″ BSP – 10mm Brass Elbow Hosetail
1 x Copper Dip Pipe
1 x 3/4″ BSP – 19mm Brass Straight Hosetail
1 x 1 1/2″ BSP – 38mm Brass Straight Hosetail (Valved)
1 x Wema Fuel Level Indicator
Analogue Fuel Gauge
1 x FLB Wema Inspection Hatch
Capacity: 193 litres
Position in Boat: Port Side
Drawings are available at the cost of £75.00 VAT. This cost is totally refundable if an order is placed for this tank.
Please note the following:
– This tank is subject to a lead time for manufacture. Please get in touch for more information;
– This tank was made to a customer’s design for their boat. Therefore, please check dimensions are correct for your application;
– To comply with the ISO 21487: 2012 CE marking standard, plastic diesel fuel tanks must be separated from the engine compartment with a suitable bulkhead so as to isolate them from the engine.
