£54.00
3 light gauge for use with the Tankminder 3.
Description

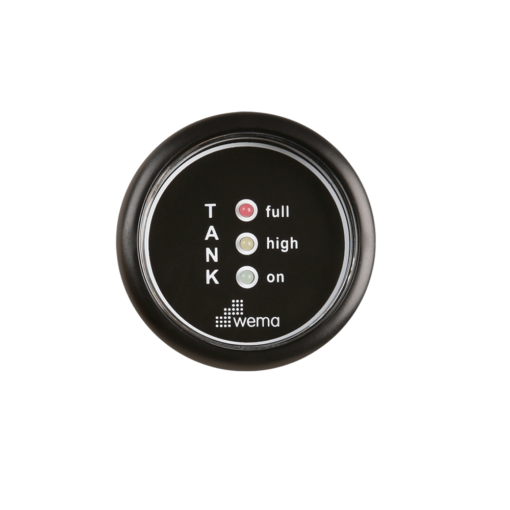

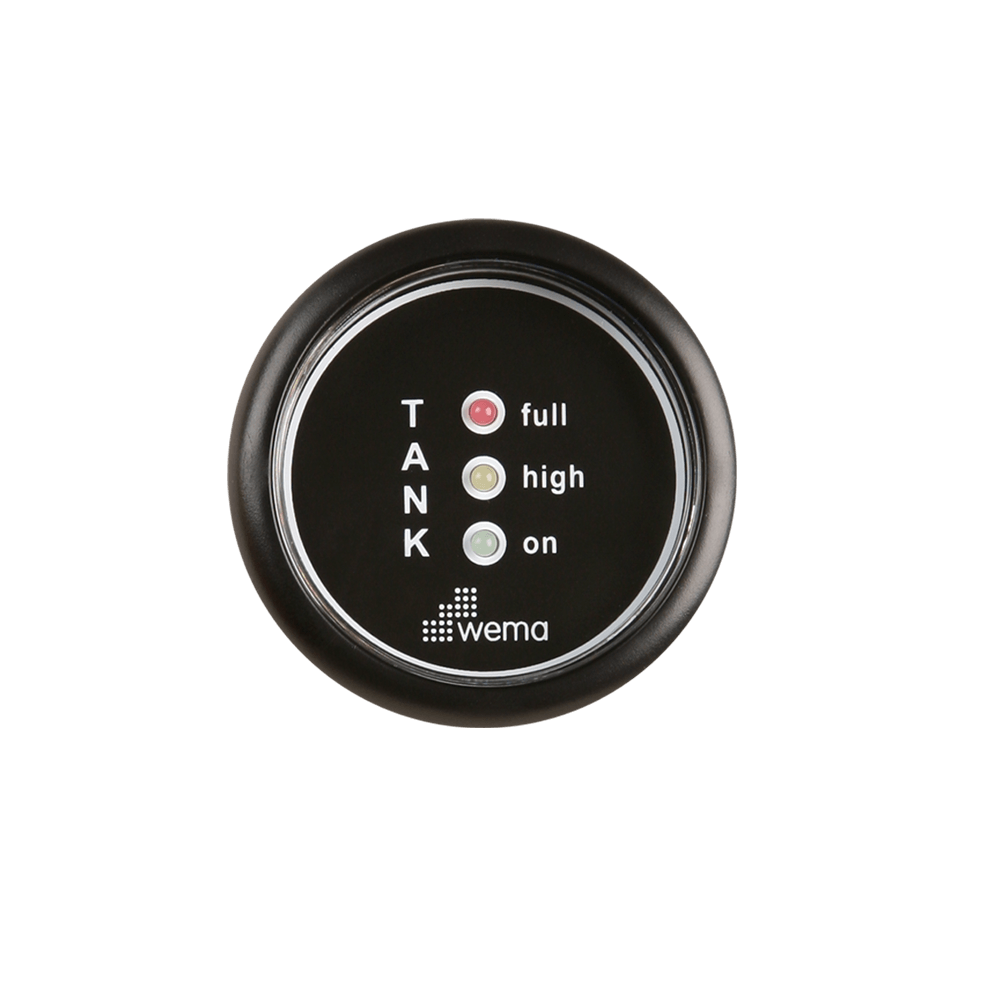

3 Light Led Gauge for Waste Holding Tank applications.
Designed to be used with a 2 switch sender to show Empty, Low and High. This gauge is used for the Tankminder 3.
- Holding Tank level
- 52mm diameter gauge
- 3 bright LEDs
- 12v/24v
- Only available, as standard, with black face & black bezel (options available for orders greater than 25 units.
INSTALLATION INSTRUCTIONS
1. Cut a 52mm (2 1/16″) diameter hole in the panel. You will need a minimum clearance of 55mm (2 3/16″) behind the panel to fit the gauge.
2. Remove fastening ring and insert gauge through panel from the front, fit and tighten fastening ring from the rear.
3. Connect wires according to wiring diagram. * Note the use of dropping resistors for 24V circuit.
5. Insert wire harness into port at the back of the gauge.
Additional information
| Weight | 0.3 kg |
|---|
