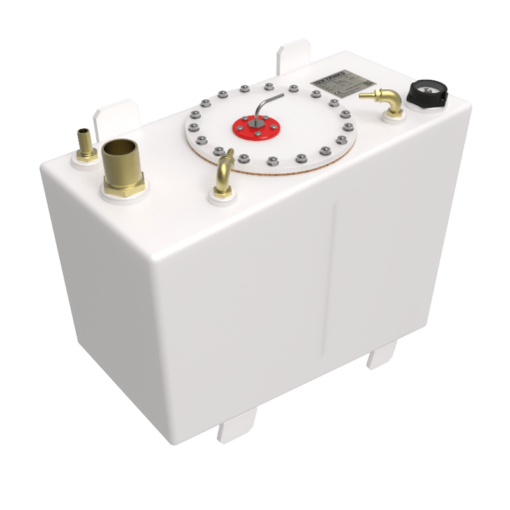

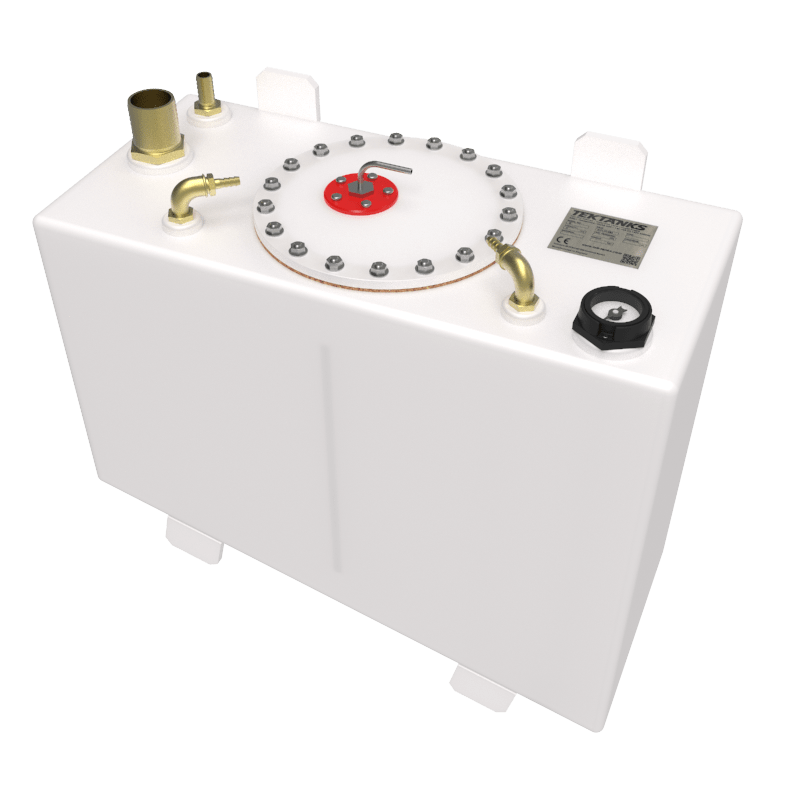

Moody 31 Mark 2 Diesel Tank
Material: 10mm Natural High-Density Polyethylene.
Overall dimensions (without fittings):
1 x 2″ BSP – 50mm Brass Straight Hosetail
1 x 3/4″ BSP – 19mm Brass Straight Hosetail
2 x 3/8″ BSP – 10mm Brass Elbow Hosetail
1 x Copper Dip Pipe
1 x Heater Supply Pipe with a plate
1 x Mechanical Level Indicator
1 x 270mm Nuts and Bolts Hatch
4 x Undrilled flange
Capacity: 78 litres
Position in Boat: Port Locker
Drawings are available at a cost of £75.00 VAT This cost is totally refundable if an order is placed for this tank.
Please note, that this tank is subject to a lead time for manufacture. Please get in touch for more information.
To comply with the ISO 21487: 2012 CE marking standard, plastic diesel fuel tanks must be separated from the engine compartment with a suitable bulkhead so as to isolate it from the engine.
Please note: This tank was made to a customer’s design for their individual boat. Please check dimensions are correct for your own application.
